How to clean a button

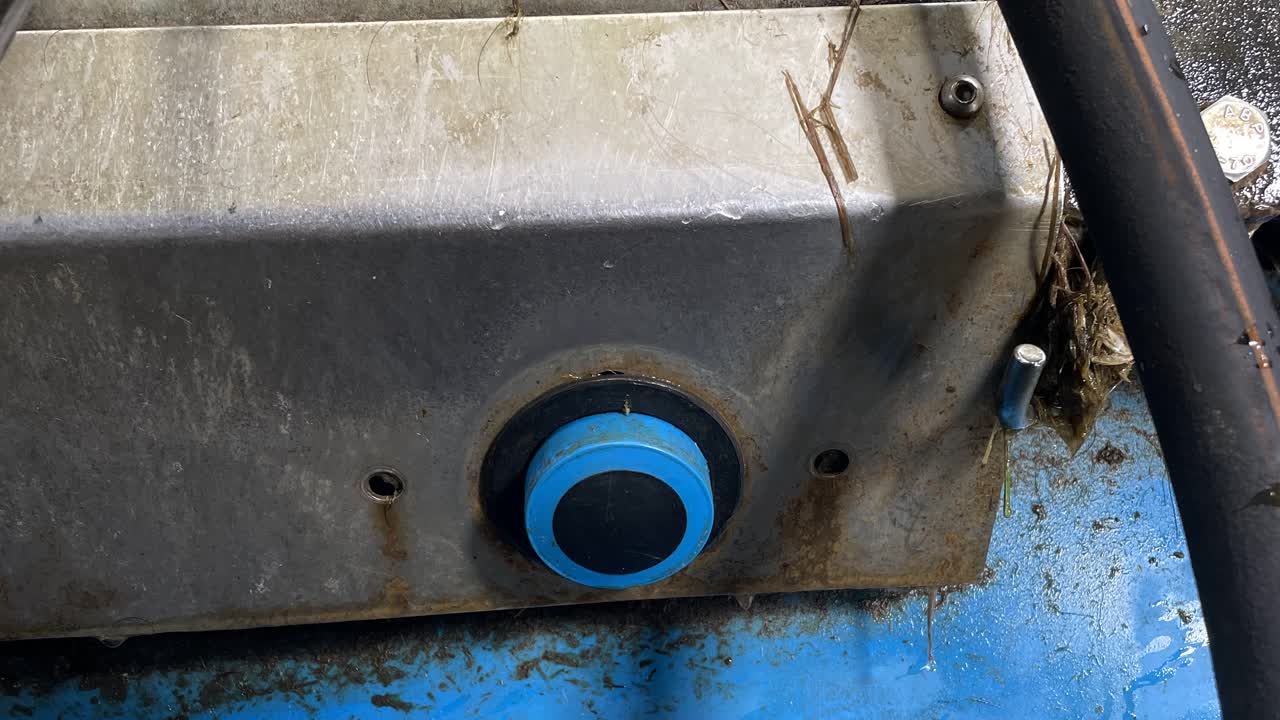

How to clean a button that is tough to push on the platform
How to clean a button that is tough to push on the platform
1
Step 1 of 6

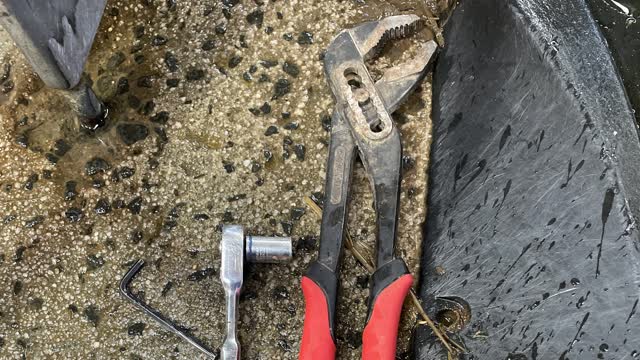

<p>Gather all required tools 10mm socket multi grips and an Allen key</p>

Gather all required tools 10mm socket multi grips and an Allen key

2
Step 2 of 6

Remove the bolts and nuts from each side the right side will have a washer that needs removing and putting back

3
Step 3 of 6

Push the tabs in with the multi grips and the button will pull out

4
Step 4 of 6

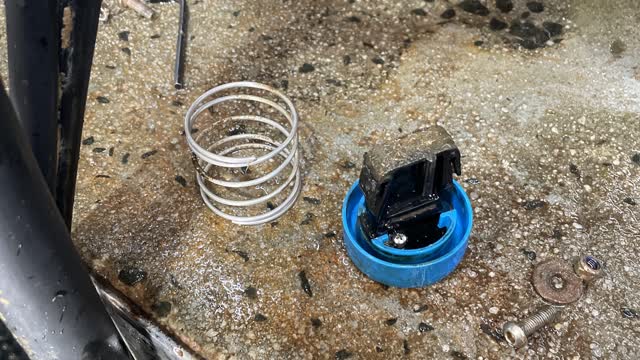

<p>Wash these</p>

Wash these

5
Step 5 of 6

Line up the grove with the button and push back in it will lock on the other side

6
Step 6 of 6

Put the bolts, washer and nuts back on . Move to next bay or put tools away
