Fuel Filler, "V3 Style" Hilux, Single Cab
1
Step 1 of 8

Looks like this when done

2
Step 2 of 8
<p><strong>Tools Required</strong></p> <ul> <li>10mm Socket</li> <li>13mm Ratchet Spanner</li> </ul>

Tools Required

  • 10mm Socket
  • 13mm Ratchet Spanner
3
Step 3 of 8

Identify the supplied Fuel filler bracket

4
Step 4 of 8

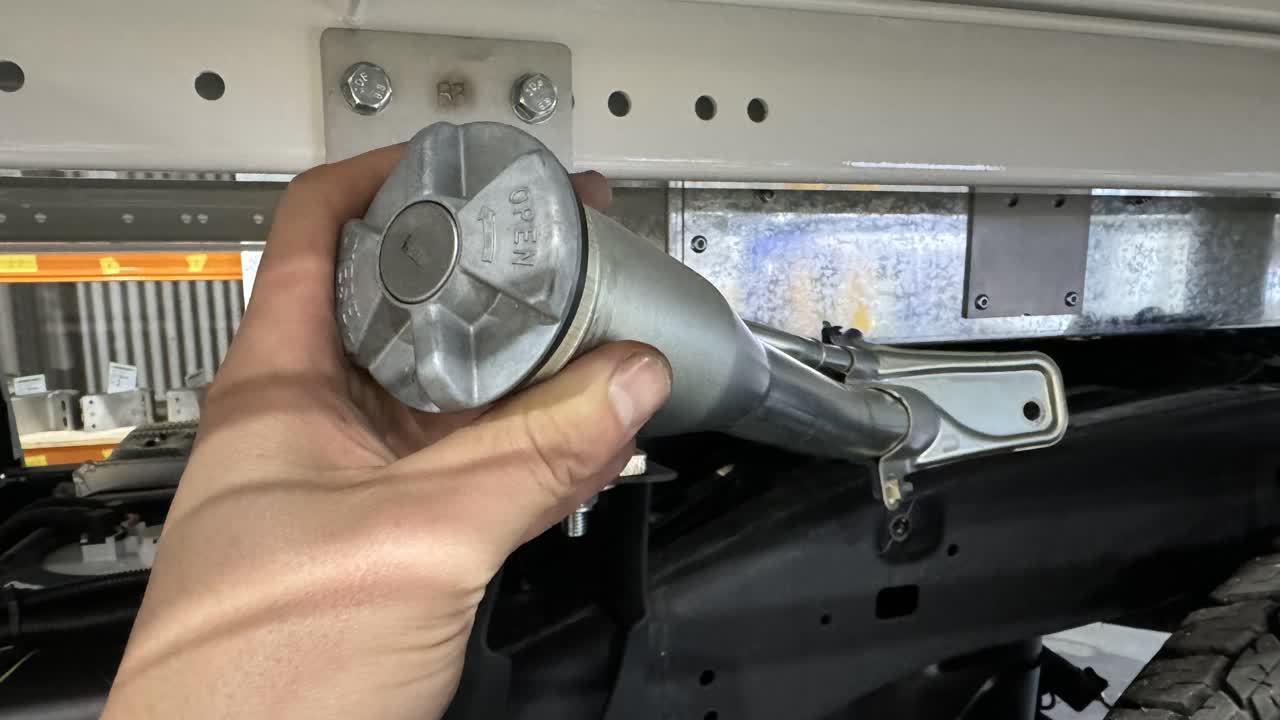

Loosen fuel hose (10mm), and rotate the filler next forward like this

5
Step 5 of 8

Re-tighten fuel hose (10mm)

6
Step 6 of 8

Fit it

7
Step 7 of 8

Tighten everthing (13mm)

8
Step 8 of 8

Will look like this when done
