Fuel filler, DMax-BT50 "RG", Single-Cab

Knowby

Fuel filler, DMax-BT50 "RG", Single-Cab

1

Step 1 of 9

Looks like this when done

2

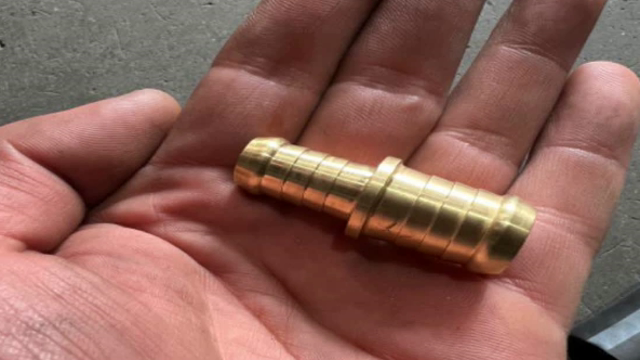

Step 2 of 9

<p><strong>Supplied with Fuel Fittings</strong></p>
<ul>
<li>50mm Blue Hose @ 800mm</li>
<li>12.7mm Breather hose @ 1100mm</li>
<li>Brass Breather Reducer</li>
<li>Stainless Reducer (50mm to 35mm)</li>
<li>Hose Clamps</li>
</ul>

Supplied with Fuel Fittings

50mm Blue Hose @ 800mm
12.7mm Breather hose @ 1100mm
Brass Breather Reducer
Stainless Reducer (50mm to 35mm)
Hose Clamps

3

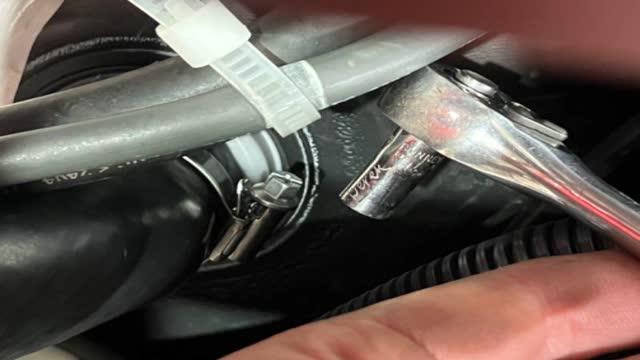

Step 3 of 9

<p>Loosens on tank</p>

Loosens on tank

4

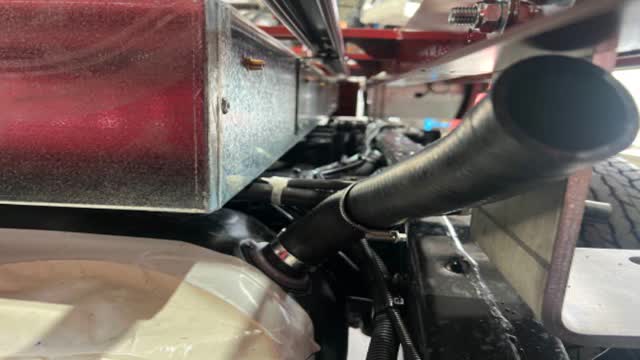

Step 4 of 9

<p>Behind mount</p>

Behind mount

5

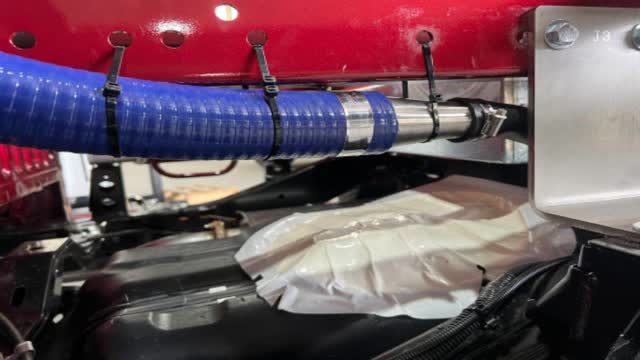

Step 5 of 9

<p>Join</p>

Join

6

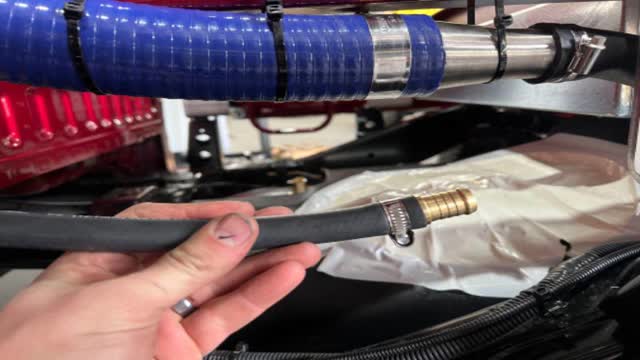

Step 6 of 9

<p>Identify</p>

Identify

7

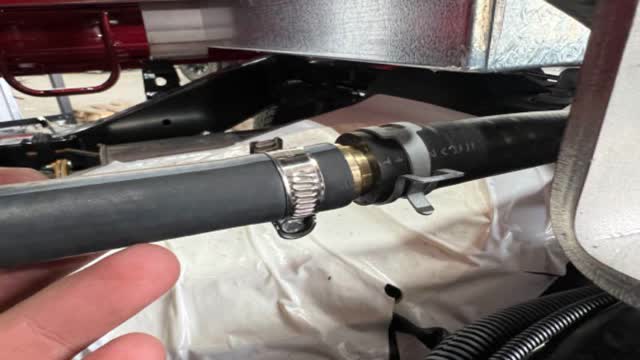

Step 7 of 9

<p>Connect</p>

Connect

8

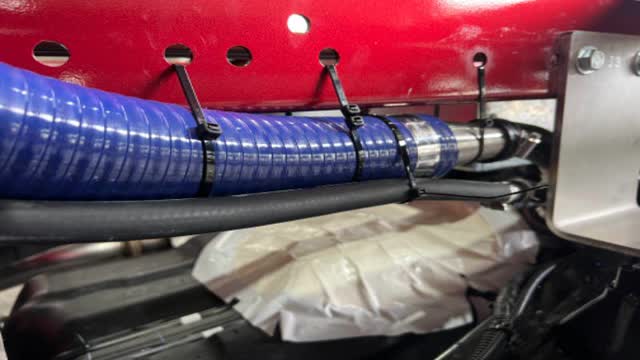

Step 8 of 9

<p>Zip</p>

Zip

9

Step 9 of 9

Looks like this
