OFC Chuck Removal Isolation - Unwind 2
Procedure for isolating the turret and motors before changing/removing chucks
Procedure for isolating the turret and motors before changing/removing chucks
1
Step 1 of 5

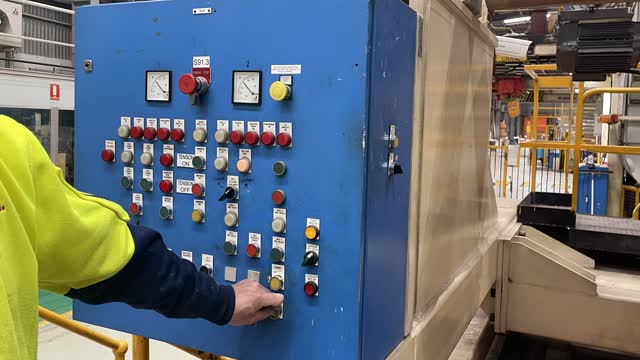

Move turret to required position using the control panel buttons
2
Step 2 of 5

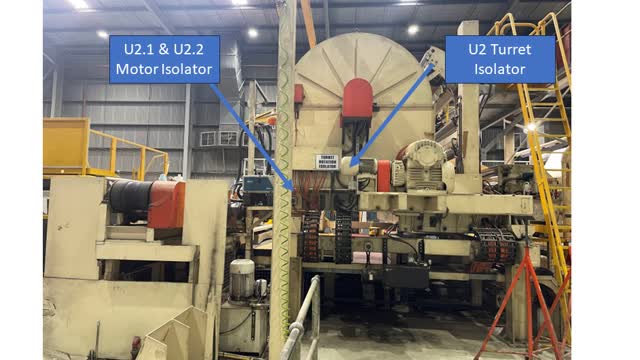

Walk around to U2 isolators - U2.1 & U2.2 Motor Isolator and U2 Turret Isolator
3
Step 3 of 5Isolate the U2 Turret Isolator (E2.3) and place lock and personal tag on isolation switch
4
Step 4 of 5Isolate U2.1 DC Motor (E2.1) and U2.2 DC Motor (E2.2). Apply your lock and personal tag
5
Step 5 of 5Verify isolation of turret by pressing either of the turret rotation buttons and checking the turret doesn't move
