Fuel Filler, Navara NP300, D-Cab

Knowby

Fuel Filler, Navara NP300, D-Cab

1

Step 1 of 12

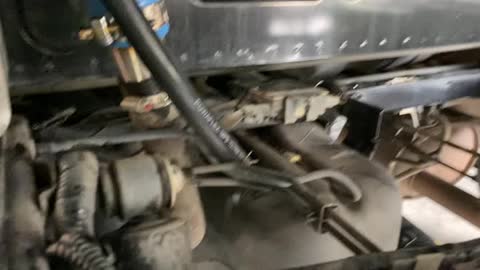

Will look like this when completed

2

Step 2 of 12

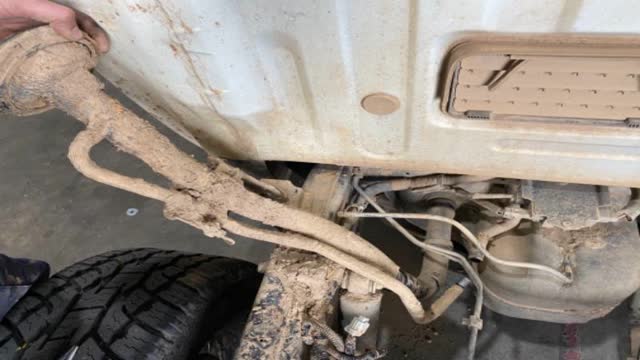

<p>Original filler looks like this, remove it</p>

Original filler looks like this, remove it

3

Step 3 of 12

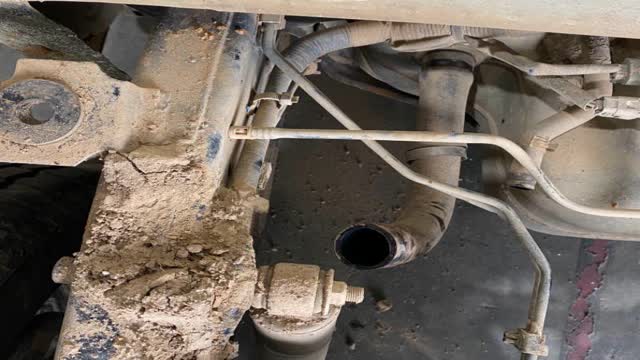

<p>Original hose looks like this</p>

Original hose looks like this

4

Step 4 of 12

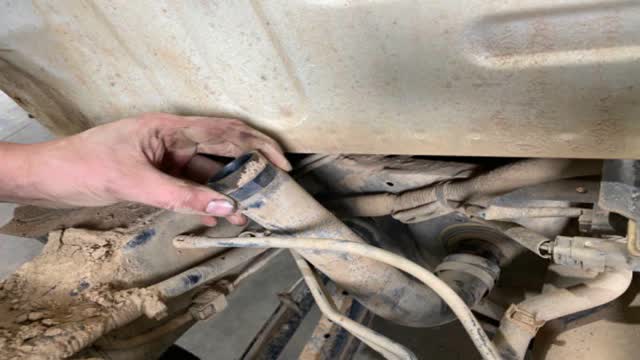

<p>Undo the hose to tank, flip it "end for end", it should now look like this</p>

Undo the hose to tank, flip it "end for end", it should now look like this

5

Step 5 of 12

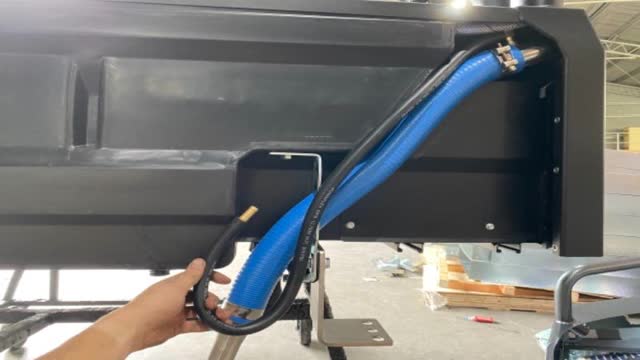

<p>Tray supplied like this, hose pre fitted</p>

Tray supplied like this, hose pre fitted

6

Step 6 of 12

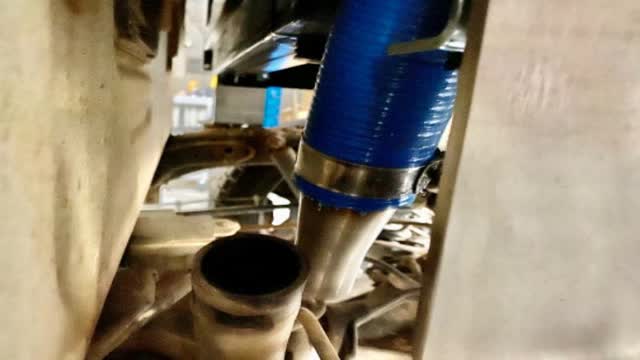

<p>Fit tray to vehicle, pipe should align close like this</p>

Fit tray to vehicle, pipe should align close like this

7

Step 7 of 12

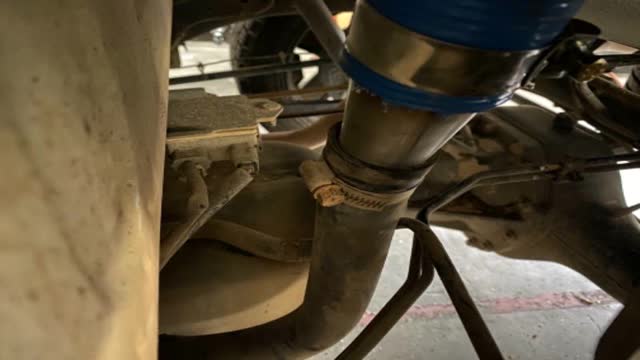

<p>Connect hose to stainless</p>

Connect hose to stainless

8

Step 8 of 12

Important, tighten clamps to fuel tank

9

Step 9 of 12

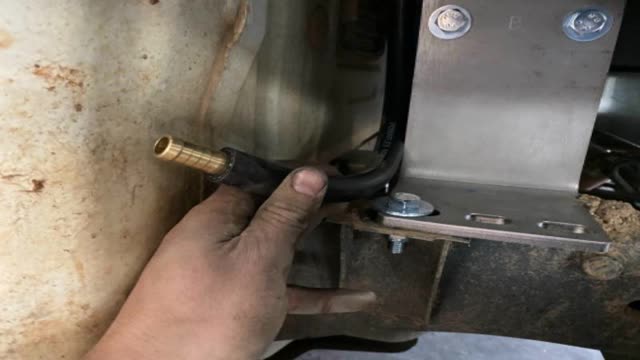

<p>Identify the breather</p>

Identify the breather

10

Step 10 of 12

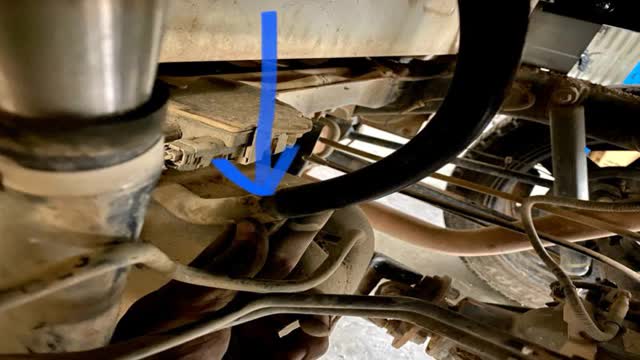

<p>Connect breather</p>

Connect breather

11

Step 11 of 12

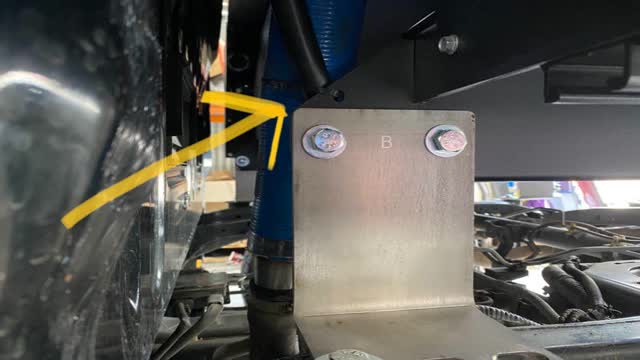

<p>Zip tie to secure</p>

Zip tie to secure

12

Step 12 of 12

Loose cable, zip tie
