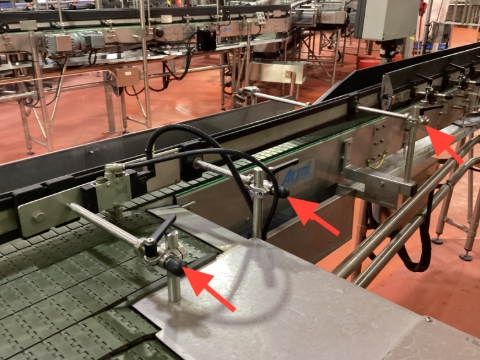

Filler Singuliser

Move 3 rails at Singuliser to suit bottle type.

• Rail Out for 750ml

• Rail In for all others.

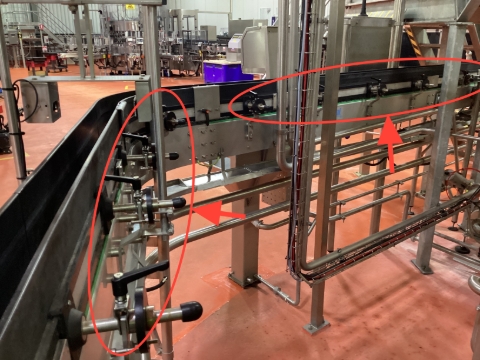

Filler Infeed

Adjust all rails up to filler infeed worm to suit disc spacer.

• Long screw for 750ml

• Short for others

Ensure adjustment handles are tightened once complete.

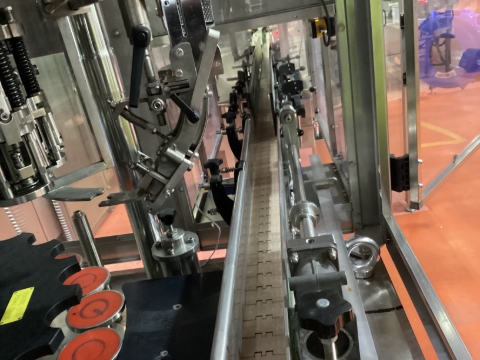

Filler Outfeed

Adjust filler outfeed rails to the out position for 750ml. Move in to suit other bottles.

Check spacing with a bottle

Filler Rejection Area

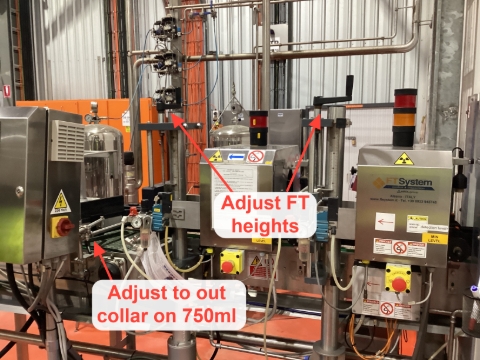

Adjust height of FT units to required parameter. Check Parameter sheet for correct position.

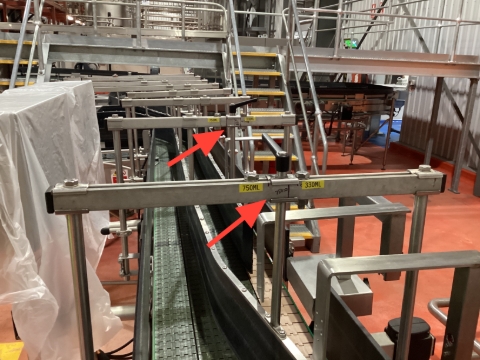

Filler Outfeed

Set rejection lanes to suit bottle x 2

Pasteuriser Outfeed

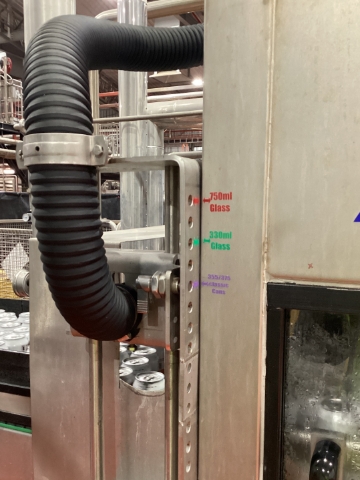

Set Pasteuriser outfeed blower to position to suit bottle.

Labeller Singuliser

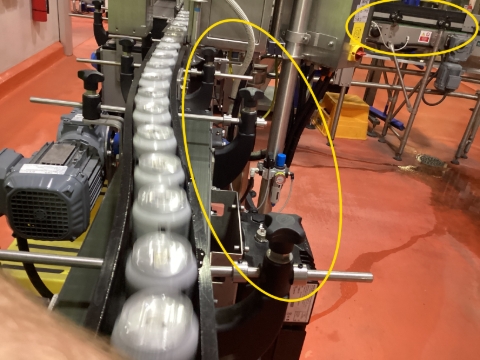

Set all infeed rails to blower to suit bottle.

• Out for 750ml

• In for all other containers.

BBull

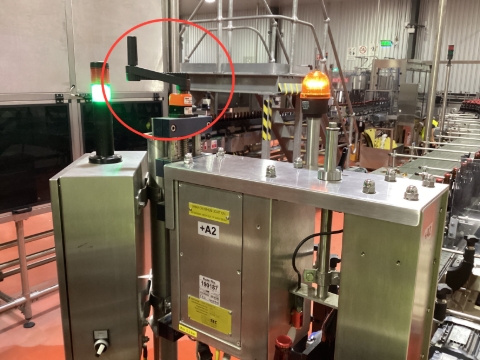

Set height to suit bottle

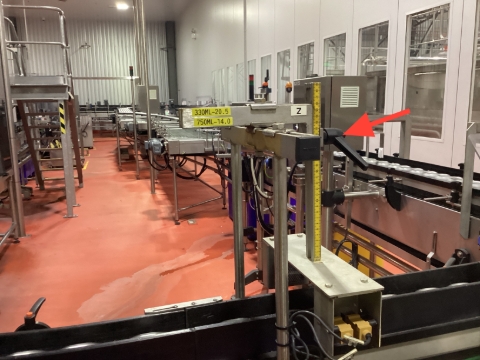

Set singuliser sensor to suit container type.

(Behind cap elevator)

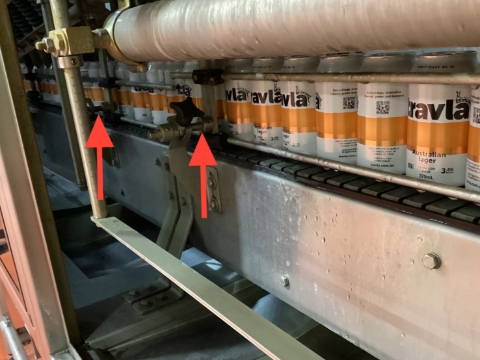

Adjust rails through blower to suit bottle type.

Only move rails on operator side of blower.

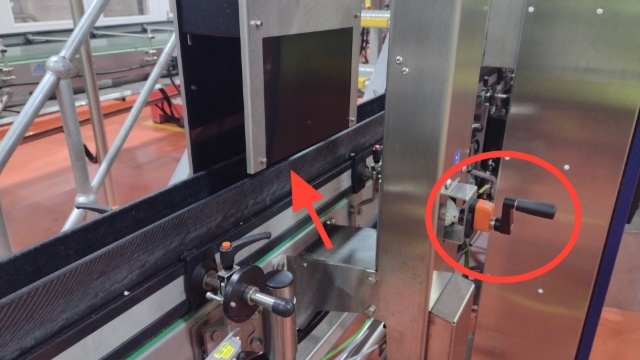

Adjust height of Checkmate to above rails (300.0) before adjustment of labeller indeed rails.

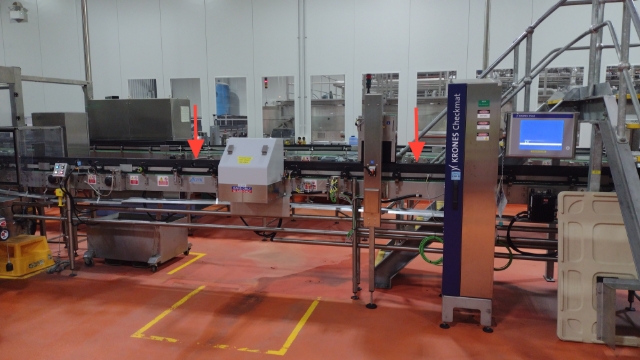

Adjust rails from blower to labeller indeed to suit bottle type.

• Short bolt 330 bottles/cans

• Long Bolt 750ml bottles

Only move operator side.

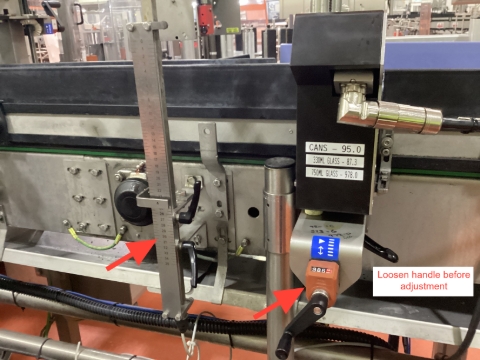

Labeller Checkmat

When changing checkmat, check height of rejector and sensor and change to suit container.

Loosen lock handle before adjusting

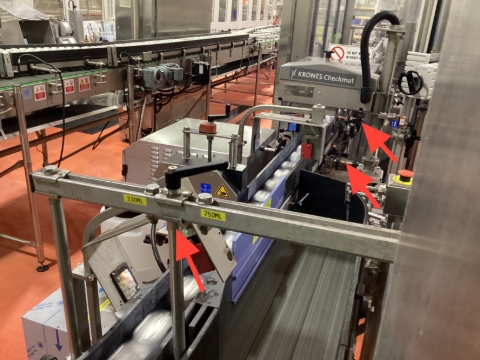

Labeller

Adjust Labeller outfeed to suit container type.

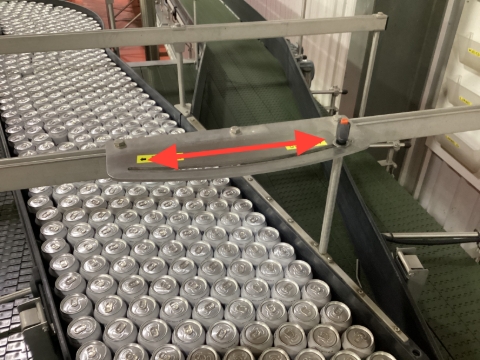

Set packer bypass rail to suit container type and packers to use.

Bypass for 750ml

Evotech for Cluster packed containers.

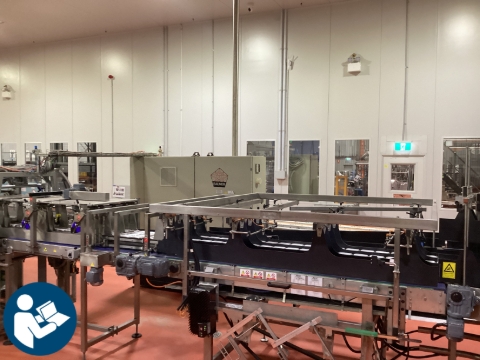

Set Baumer infeed to suit container type.

See Baumer 750ml set up to see how to set. (Future link to be added).

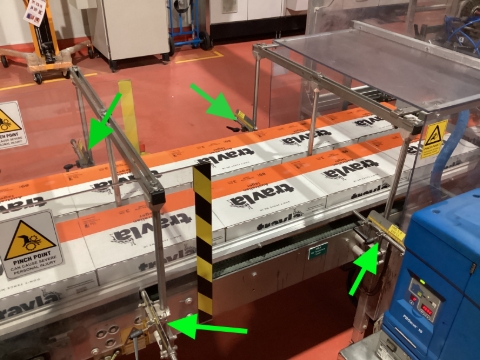

Palletiser

Set infeed rail width to suit box type.

Palletiser

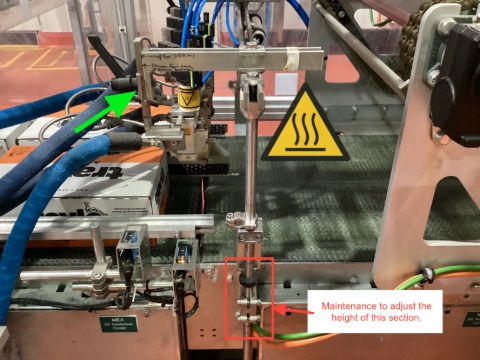

Set height of glue nozzles to suit box type.

Palletiser

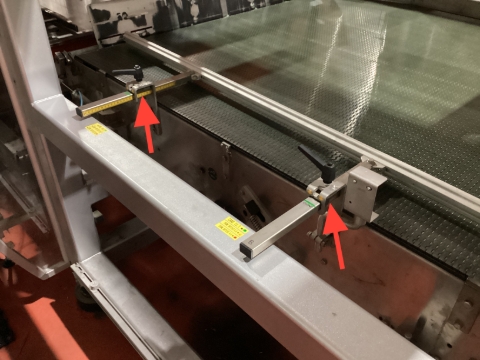

Set side rail at Pusher to suit carton type to be run.

Ensure Palletiser format is changed to suit product before running.

Process Completed.

Ensure all individual machines have been changed over to suit prior to running.
