Weekly checklist steps
1
Step 1 of 17

The grain shed needs to stay clean to keep vermin out. To clean shovel up the grain and into a wheelbarrow and put over in the effluent area

2
Step 2 of 17

Shovelled grain in effluent area. Be very careful of the effluent dam!

3
Step 3 of 17

There are three auger motors above cups on. These need to be cleaned with a broom. Wear a face mask from office to avoid dust.

4
Step 4 of 17

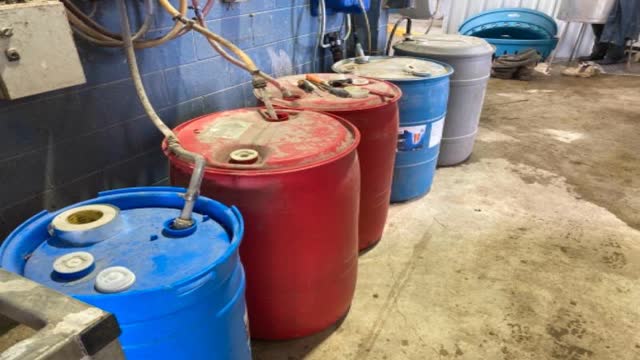

<p>Walk along all the chemical drums at the vat and along the back of the blue wall to see if any are empty or nearly empty.</p>

Walk along all the chemical drums at the vat and along the back of the blue wall to see if any are empty or nearly empty.

5
Step 5 of 17

The air compressor lives inside can am room. Turn it off first.

6
Step 6 of 17

Underneath the main tank is a valve that needs to be opened. Once liquid stops draining shut valve and turn back on.

7
Step 7 of 17

Go around to wash hoses and find the platform oil drum. Fill up with oil that’ll be next to bin

8
Step 8 of 17

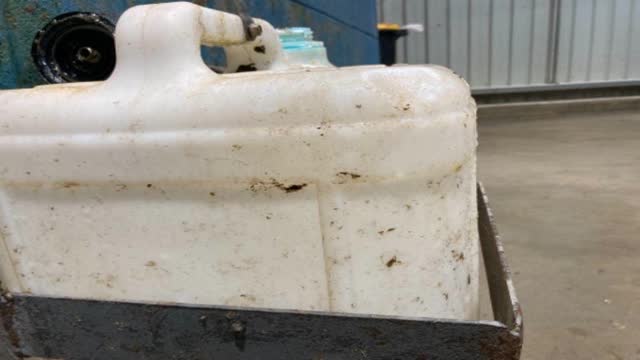

<p>The drum needs to be filled to just above the metal bracket</p>

The drum needs to be filled to just above the metal bracket

9
Step 9 of 17

How to change the sock filter

10
Step 10 of 17

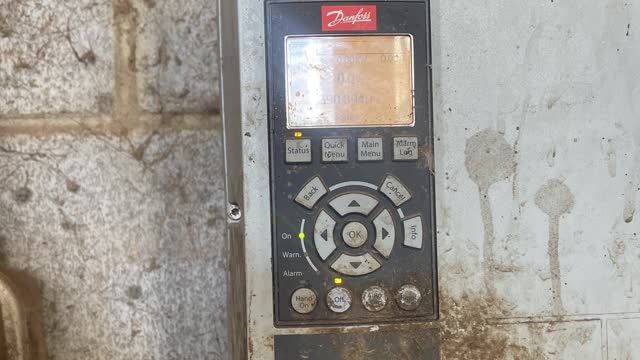

<p>Turn water off at control panel in work shop</p>

Turn water off at control panel in work shop

11
Step 11 of 17

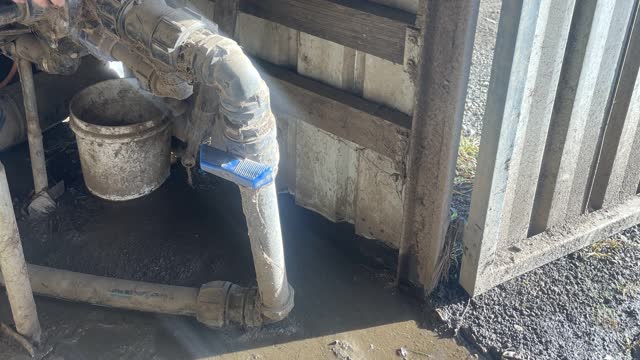

<p>Turn off water so blue tap is in this position</p>

Turn off water so blue tap is in this position

12
Step 12 of 17

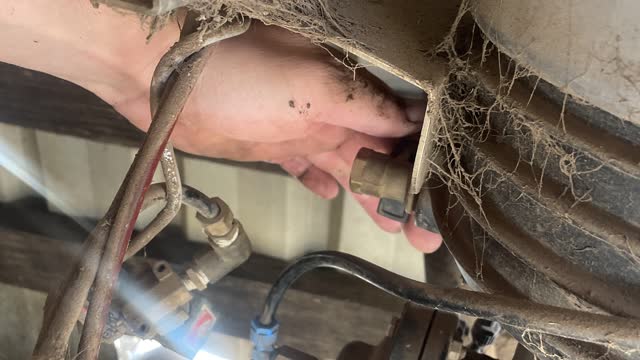

<p>Turn this to release Pressure</p>

Turn this to release Pressure

13
Step 13 of 17

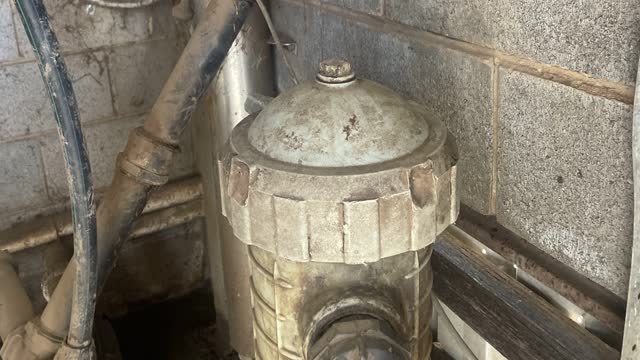

<p>Remove cap</p>

Remove cap

14
Step 14 of 17

Pull out the holder and sock filter get new clean sock filter

15
Step 15 of 17

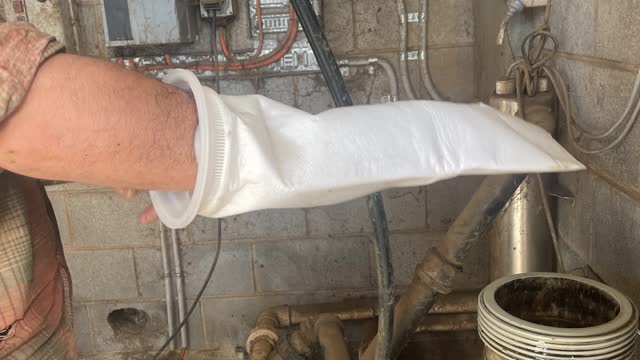

<p>Push down to bottom of filter place hiker back on top and relid the sock filter</p>

Push down to bottom of filter place hiker back on top and relid the sock filter

16
Step 16 of 17

Close the pressure valve and open the water tap blue one above

17
Step 17 of 17

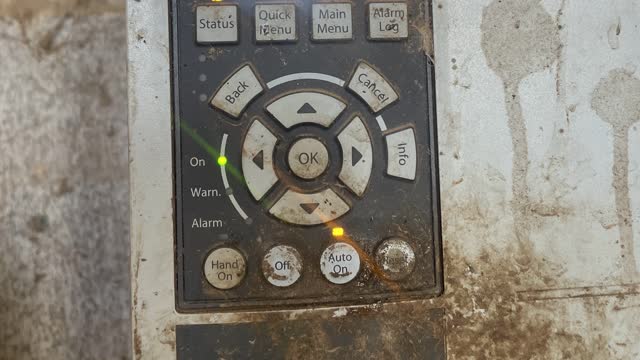

<p>Press auto on and you should have water pressure again in the dairy</p>

Press auto on and you should have water pressure again in the dairy
