Turning On Salvagnini Laser

This Standard Operating Procedure is to train operators in the correct and safe way of turning on the Salvagnini Laser PPE Required: • Safety Glasses • Hi-vis Clothing • Safety Boots • Safety Gloves • Ear Protection

This Standard Operating Procedure is to train operators in the correct and safe way of turning on the Salvagnini Laser PPE Required: • Safety Glasses • Hi-vis Clothing • Safety Boots • Safety Gloves • Ear Protection

1

Step 1 of 8

Clean floor and work area of any rubbish/tools

2

Step 2 of 8

Turn isolation switch on.

Note: If it is cold, the computer may not turn on straight away. In this case, leave isolator on for 10 minutes and switch it back off and on

3

Step 3 of 8

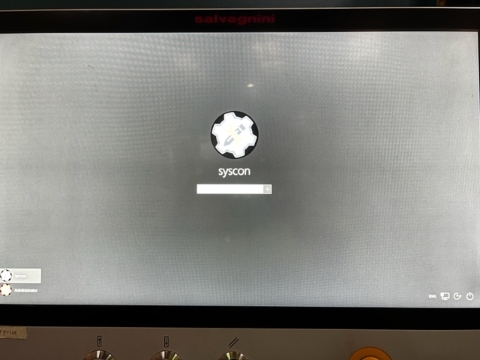

<p>a)    Enter password into login screen<br></p>

a) Enter password into login screen

4

Step 4 of 8

Choose the program folder required for the first job

5

Step 5 of 8

Ensure all light curtains and doors are closed.

Push blue alarm acknowledgement button

6

Step 6 of 8

Turn on Laser Source, Pointer, Lights and G100

7

Step 7 of 8

When prompted, reset the laser as shown

8

Step 8 of 8

If you are not prompted or an error occurs, manually reset the laser calibration
