Road Train Lessons How to connect a dolly to a trailer

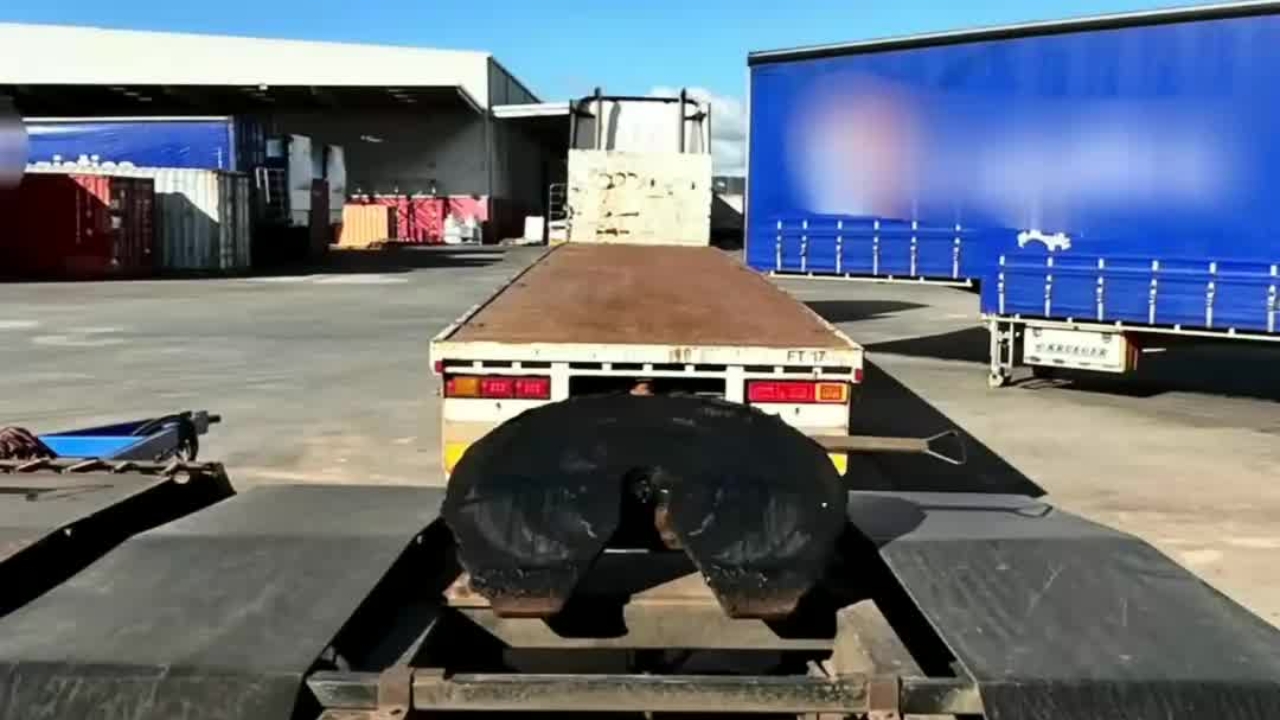

You want to be dead straight. Pull the ring feeder.
You want to be dead straight. Pull the ring feeder.
1
Step 1 of 44
You want to be dead straight. Pull the ring feeder.
2
Step 2 of 44
Open it. That's that thing. Like that.
3
Step 3 of 44
There we go. Never ever touch that with your fingers, because that is a little spring. Any pressure on it will push it up, and it will come shooting down. That's actually how it locks in. The eye hits here, goes up, triggers the lock, and it locks in place.
4
Step 4 of 44
Anyway, let's check our line. So we're pretty well on.
5
Step 5 of 44
We're probably going to go over to the left a little bit, but that's alright. We're checking the height of the eye that's going to get fed in.
6
Step 6 of 44
You want to be aiming the bottom of it, not the top. So your height should be there, and you want it to be hitting just on the base of the ring feeder.
7
Step 7 of 44
Sometimes an annoying thing that will happen is that little spring-loaded lock will not get triggered.
8
Step 8 of 44
But there is a solution for that. And here is our elegant solution.
9
Step 9 of 44
Very handy. A big old screwdriver so you don't stick your fingers in there.
10
Step 10 of 44
All you do is get down here. The way this works, what's supposed to work when you're back on, is like that.
11
Step 11 of 44
A little bit of up pressure triggers the locking pin, and in it goes.
12
Step 12 of 44
But you can see that's not fully locked. For it to be locked, this needs to be all the way down.
13
Step 13 of 44
This will sit flush in. So when it's like that and it's not locked, there is a little trick you can do.
14
Step 14 of 44
If there's a bit of air, and we've got the height, so that leg's well and truly off the ground.
15
Step 15 of 44
I've backed up and put a little bit of pressure on it, so we can hit the trailer brake.
16
Step 16 of 44
The trailer release brake's on this, and it'll release the brakes on the dolly.
17
Step 17 of 44
And the pressure that comes off this should drop us down or give us enough movement that that might just drop in itself.
18
Step 18 of 44
Trailer brake's off.
19
Step 19 of 44
The pressure's off that. Beautiful.
20
Step 20 of 44
There we go. We are locked in.
21
Step 21 of 44
So now we're locked in. All we've got to do is secure these away so they don't drag, because we're just going to be dragging this back as a dolly on its own.
22
Step 22 of 44
And we need to hook these ones up. So when you're dragging just a dolly on its own, we have the supply and the control.
23
Step 23 of 44
This is our supply. This is our control or brakes.
24
Step 24 of 44
So, plug these in.
25
Step 25 of 44
Twist it so it's locked.
26
Step 26 of 44
Now we'll turn the supply on, which will put air into the dolly.
27
Step 27 of 44
Plug the electrics in.
28
Step 28 of 44
This is the brakes for the dolly.
29
Step 29 of 44
The trailer has its own air supply and its own brakes. The dolly that we're attaching is not going to turn the brakes on.
30
Step 30 of 44
There's no weight on it, and it will just skid all over the place and bounce and all sorts of trouble.
31
Step 31 of 44
So we don't need to put this one, turn this one on.
32
Step 32 of 44
There we go. The supply to the air control to the dolly will release the brakes that's on.
33
Step 33 of 44
The brake control is turned off.
34
Step 34 of 44
That way we're not going to skid and bounce and roll down the road.
35
Step 35 of 44
There we go.
36
Step 36 of 44
Just put these two together so they don't fall down and drag. Feed the electric line back through.
37
Step 37 of 44
Taps here off on the dolly. Don't want to let any air out.
38
Step 38 of 44
And we just need to kick the leg up. And we are ready.
39
Step 39 of 44
It's also worth noting, these are pretty tight.
40
Step 40 of 44
The more they rattle, the more they bounce, the more likely they are to break.
41
Step 41 of 44
Just check our lights and tyres and we're good to go.
42
Step 42 of 44
Yep, beautiful. Yep, the lights.
43
Step 43 of 44
Oh, it's beautiful. There we have it.
44
Step 44 of 44
All connected, ready to go.
