Grain crush

Knowby

Grain crush

1

Step 1 of 14

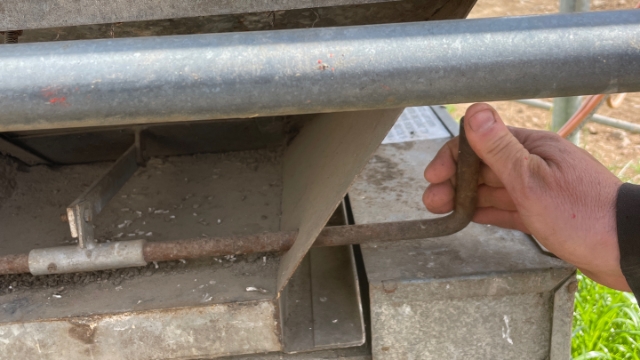

<p>Make sure Shute is closed handle will be in this postion</p>

Make sure Shute is closed handle will be in this postion

2

Step 2 of 14

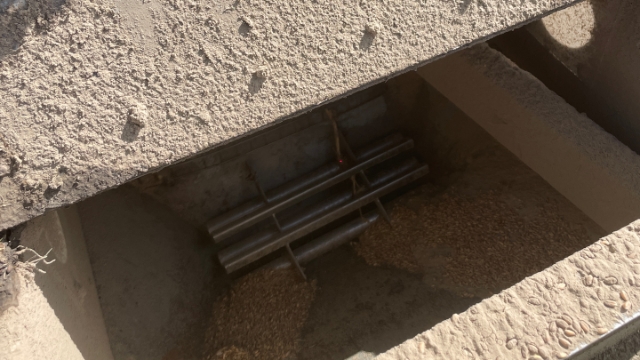

<p>Check for blockages in the fill bin</p>

Check for blockages in the fill bin

3

Step 3 of 14

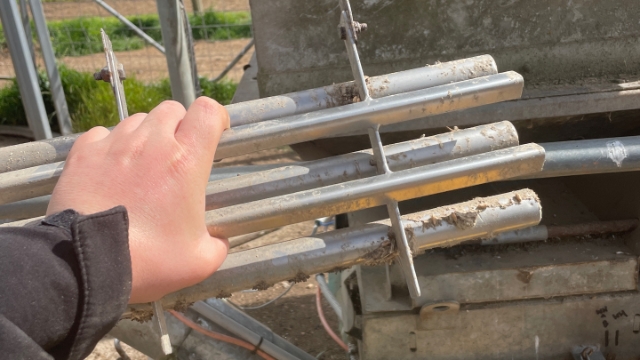

<p>Pull magnets out and clean off</p>

Pull magnets out and clean off

4

Step 4 of 14

Pushing handle around until tag is almost at the keeper and is unpinned

5

Step 5 of 14

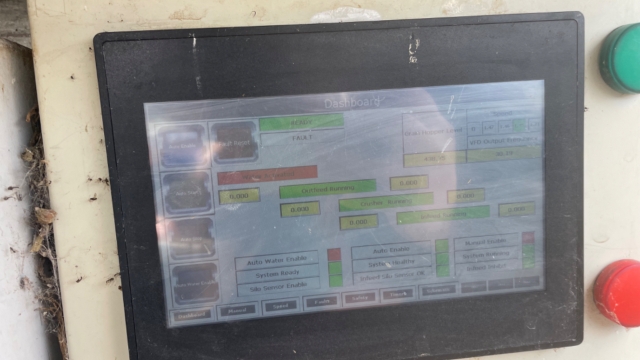

<p>You need to put into Manuel mode to do this you must press auto enable button</p>

You need to put into Manuel mode to do this you must press auto enable button

6

Step 6 of 14

Press and hold Manuel in bottom left of screen

7

Step 7 of 14

Press and hold crusher on

8

Step 8 of 14

Once clear and running turn crusher off

9

Step 9 of 14

Press dashboard bottom left, back to Home Screen

10

Step 10 of 14

Press auto enable till auto enable turns green

11

Step 11 of 14

Press auto start

12

Step 12 of 14

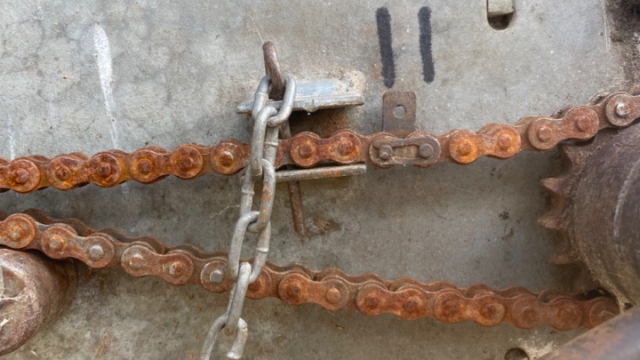

<p>Imidetly once roller mill has started put back into this position and put keeper back into place</p>

Imidetly once roller mill has started put back into this position and put keeper back into place

13

Step 13 of 14

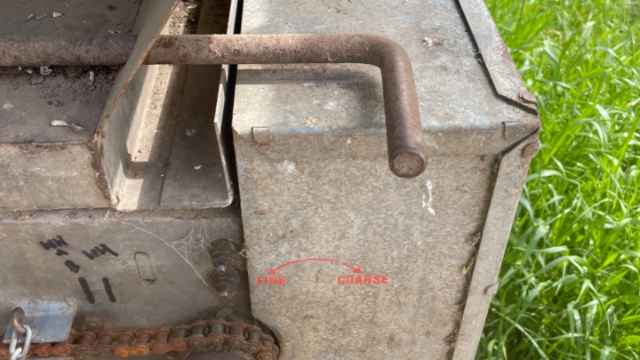

<p>Open the shoot handle</p>

Open the shoot handle

14

Step 14 of 14

check that grain is crushing correctly and bins are filling
