Single Overlanding Drawer Installation
1
Step 1 of 5Place your single overlanding drawer inside the wellside in the position you would like it.
Ensure that the tailgate is able to close and the mounting points will not foul with anything underneath the vehicle.
Open the drawer and drill 8mm mm holes.
Fasten the drawer to the wellside using x4 M8x25 hex heads, washers and flanged nuts
2
Step 2 of 5Continue fastening the other bolts.
Place the powdered fascia on the front of the drawer face and the ply on the top.
3
Step 3 of 5Fasten the fascia using the furniture bolts provided.
Screw the ply to the drawer using M6x30
4
Step 4 of 5Tighten all fascia and ply bolts
5

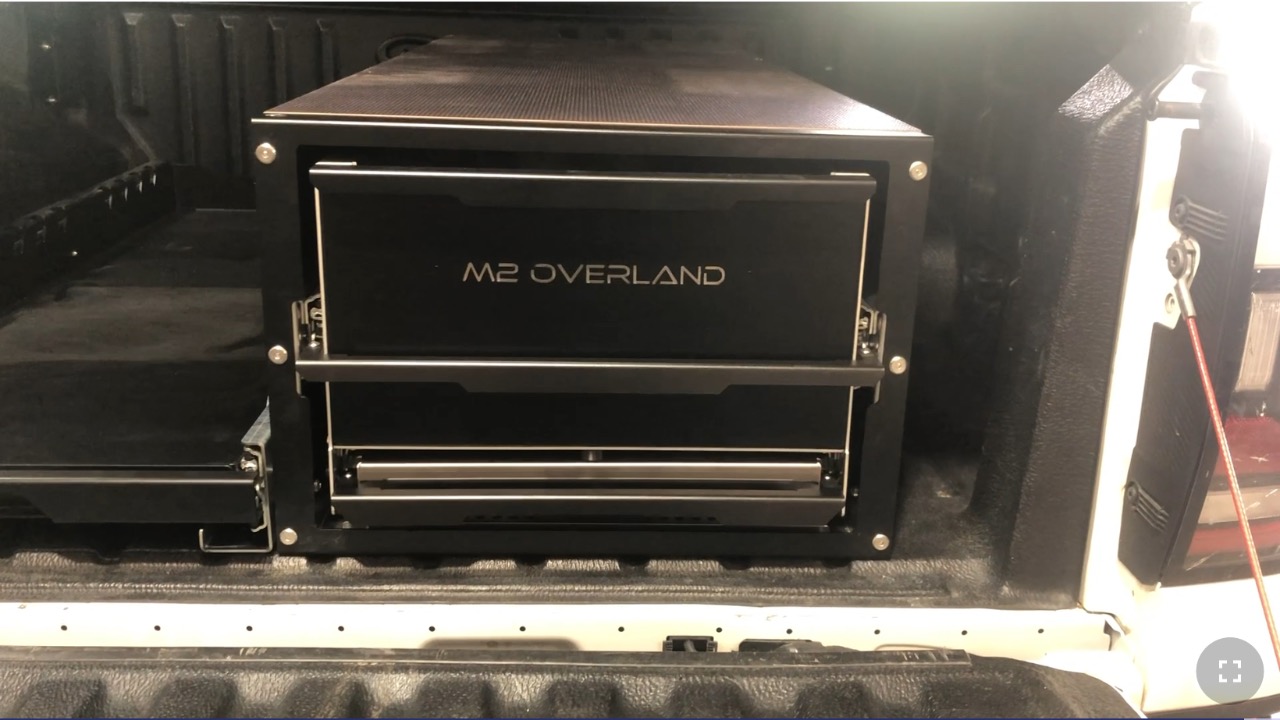

Step 5 of 5Your single overlanding drawer installation is now complete.
