Apply foam tape to the packer.

Remove the plastic bungs from the front of the wellside.

Apply silicone to the front corners of the wellside.

Place the packer to the front of the wellside.

Fasten the packer using M8 x 25 stainless button tops with springs and flats.

Apply more silicone in between the packer and wellside.

Remove the factory bolt from the front of the wellside like so and fasten our mounts using M8 x 25 stainless button tops with springs , flats and Loctite.

Fasten the front mounts in place ensuring it is flush with the top of the wellside.

Remove the bolts from the rear of the wellside and fasten our rear mounts using M8 x 25 stainless button tops with springs , flats and Loctite.

Once the front mounts are flush with the top of the wellside, drill a 8mm hole like so and fasten another M8 x 25 with Nyloc nut.

Lift your Artemis on to the wellside.

Bolt the Artemis to the wellside mounts using M8 20 button tops and Nyloc nuts

Fasten the mounts to the wellside.

Ensure your Artemis is square and not touching the rear of the cab.

Fasten the Artemis to the mounts.

Take the center mount and fasten to the Artemis with x2 washers sitting in between like so.

Drill a 8mm hole through the wellside and fasten a M8 x 20 button top and Nyloc nut.

Remove the x2 washers.

Fasten the x2 center mounts back together.

Complete the centre mount step on the other side.

Ensure all mounting bolts are tight.

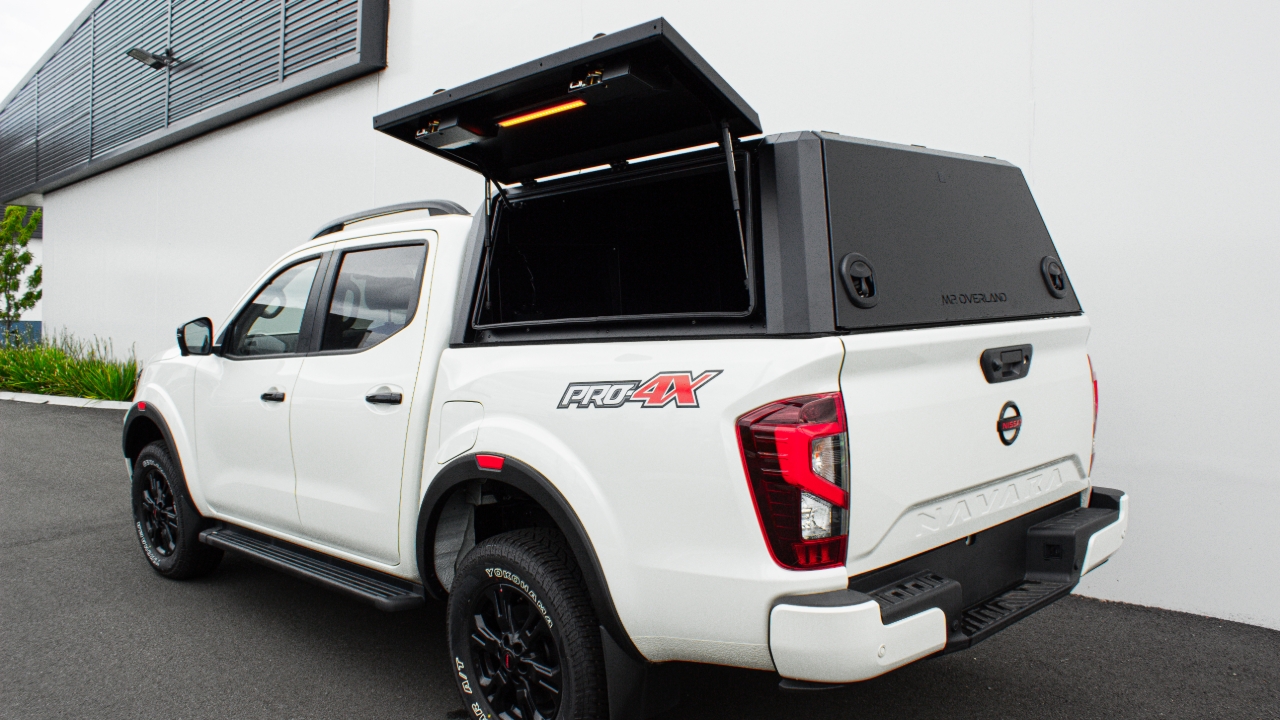

Your Navara Artemis install is now complete.
