xFuel Filler, 200 Series LandCruiser
1
Step 1 of 31

Looks like this when done

2
Step 2 of 31

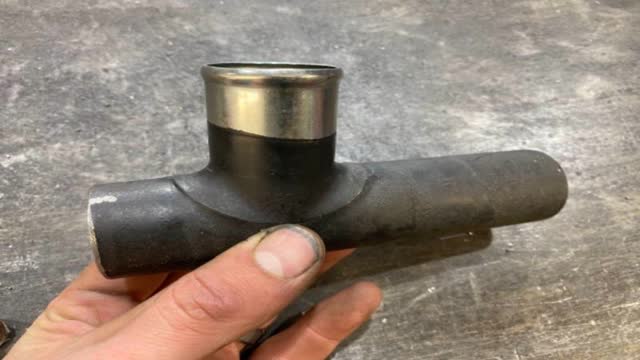

<p>Get it</p>

Get it

3
Step 3 of 31

50mm stainless elbow (supplied)

4
Step 4 of 31

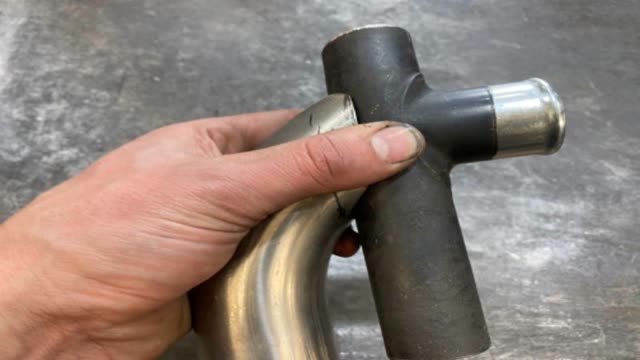

<p>Make fit</p>

Make fit

5
Step 5 of 31

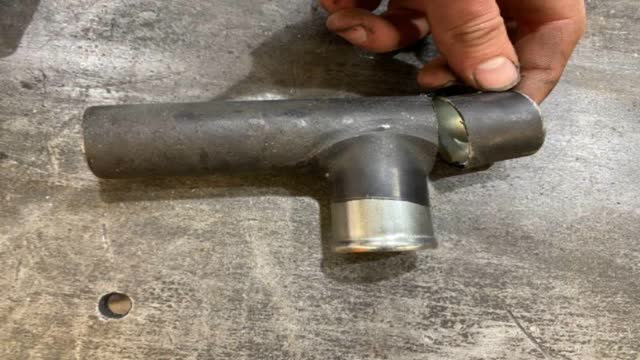

<p>Cut end</p>

Cut end

6
Step 6 of 31

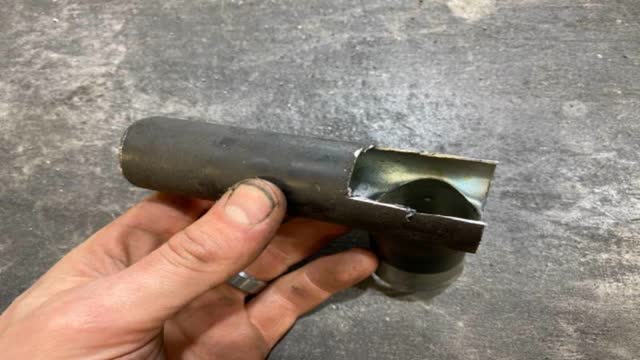

<p>Cut top</p>

Cut top

7
Step 7 of 31

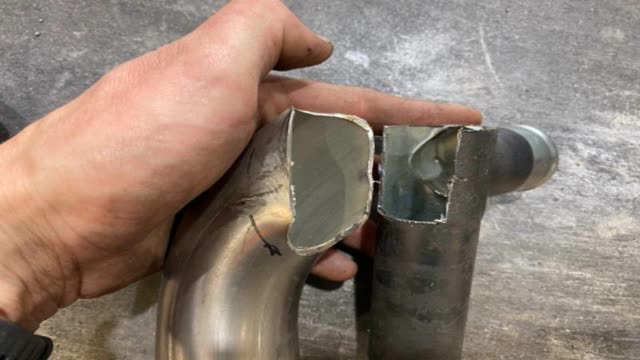

<p>So they line up</p>

So they line up

8
Step 8 of 31

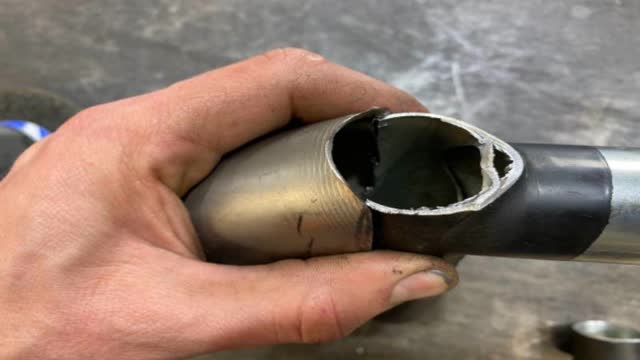

<p>Like this</p>

Like this

9
Step 9 of 31

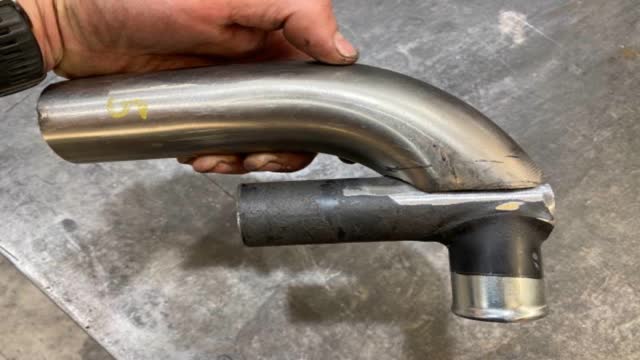

<p>Side view</p>

Side view

10
Step 10 of 31

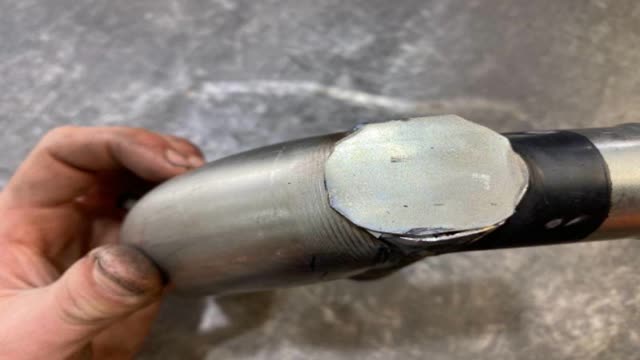

<p>End cap</p>

End cap

11
Step 11 of 31

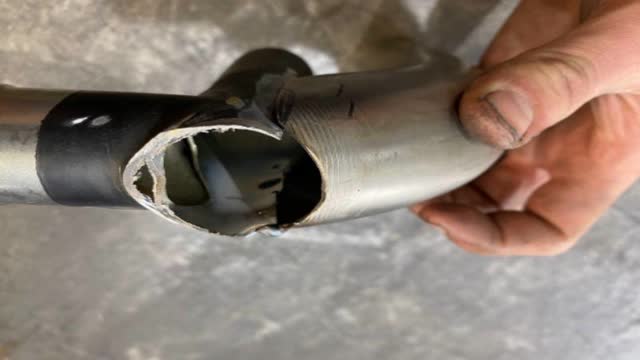

<p>End view</p>

End view

12
Step 12 of 31

Weld it

13
Step 13 of 31

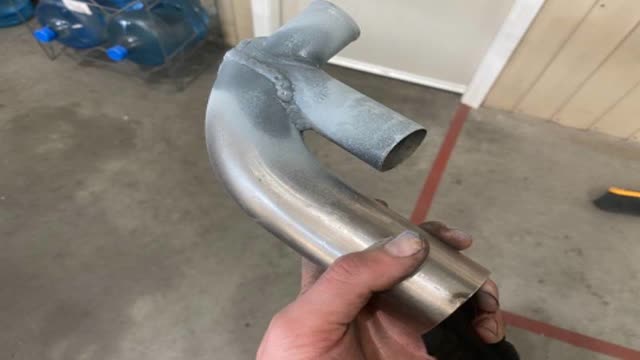

<p>Paint it</p>

Paint it

14
Step 14 of 31

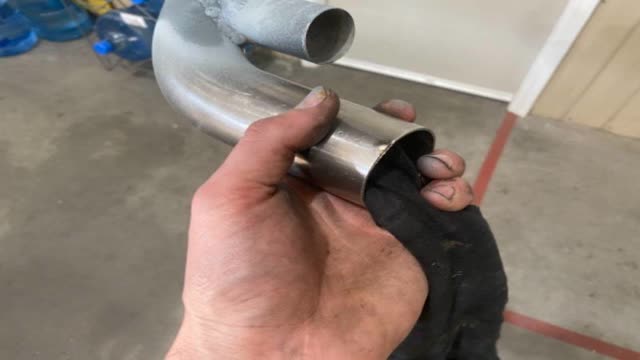

<p>Clean inside</p>

Clean inside

15
Step 15 of 31

To tank

16
Step 16 of 31

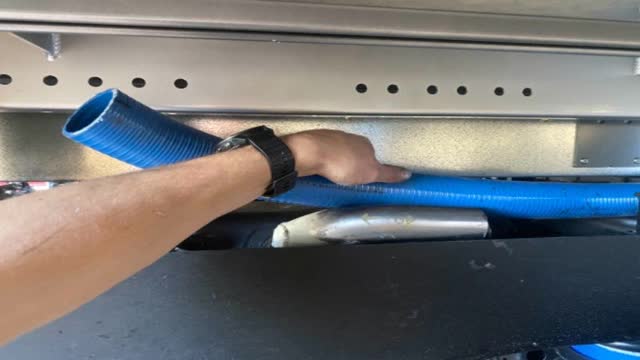

<p>Find supplied hose</p>

Find supplied hose

17
Step 17 of 31

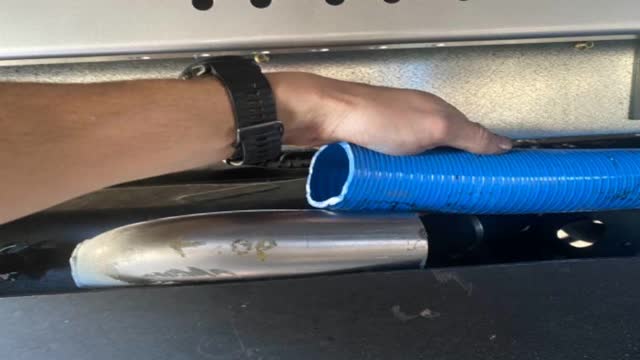

<p>Trim length</p>

Trim length

18
Step 18 of 31

Hose in boiling

19
Step 19 of 31

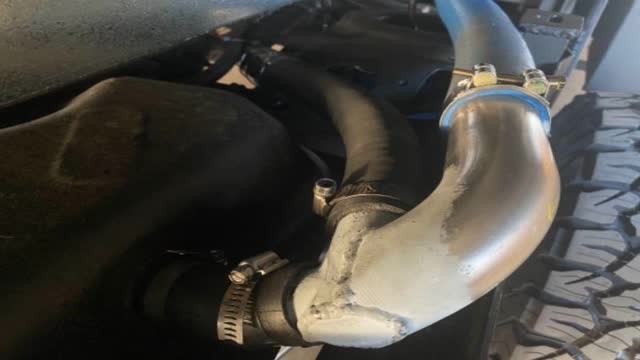

<p>Connect and tighten</p>

Connect and tighten

20
Step 20 of 31

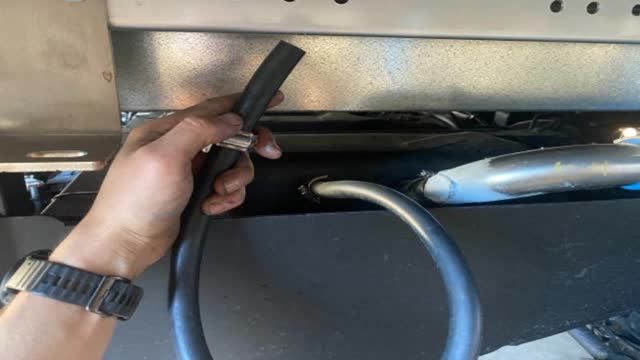

<p>Identify rear tank breather on vehicle</p>

Identify rear tank breather on vehicle

21
Step 21 of 31

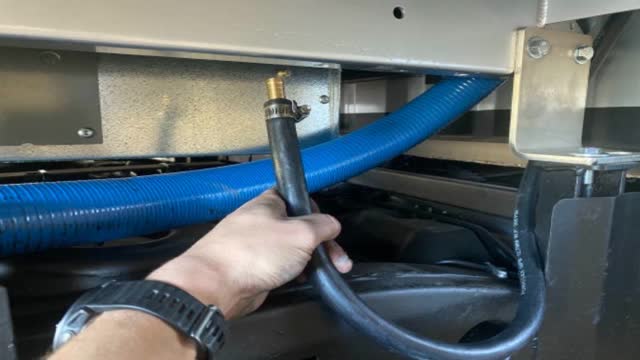

<p>Identify from breather, supplied with tray</p>

Identify from breather, supplied with tray

22
Step 22 of 31

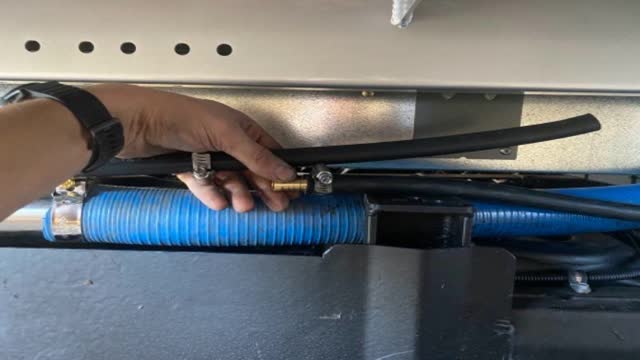

<p>Trim length if required</p>

Trim length if required

23
Step 23 of 31

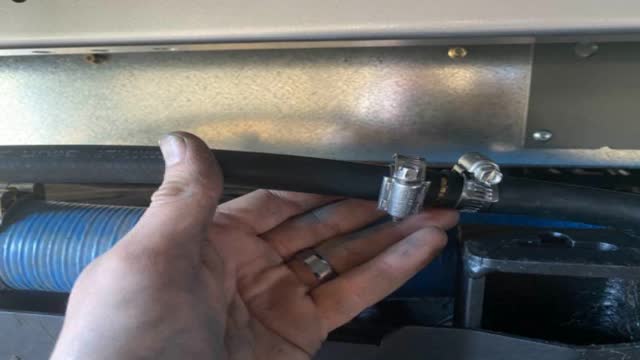

<p>Tighten</p>

Tighten

24
Step 24 of 31

This step shows video of what the following steps will explain: adding the brass t piece. This is added to the breather line which runs between the 2 tanks

25
Step 25 of 31

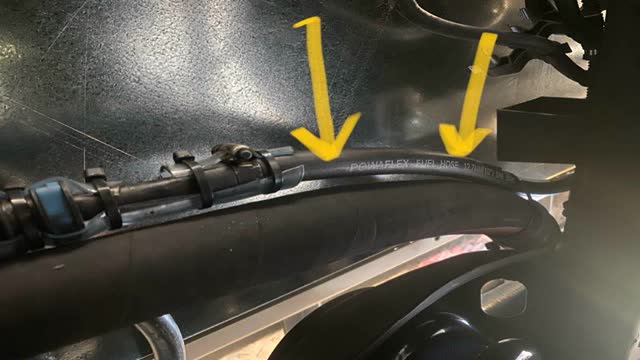

<p>Identify the breather line</p> <p>Taken from under vehicle</p>

Identify the breather line

Taken from under vehicle

26
Step 26 of 31

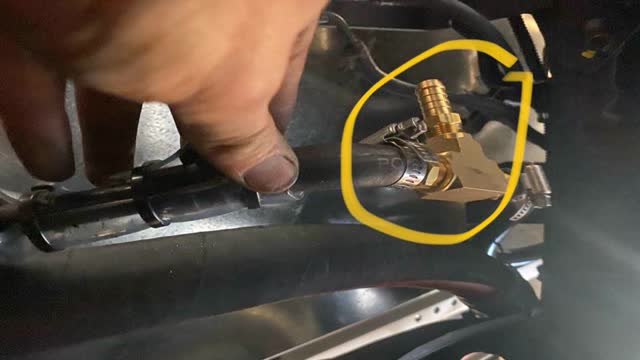

<p>Cut line then add  t piece</p>

Cut line then add  t piece

27
Step 27 of 31

T piece breather, ident identify it

28
Step 28 of 31

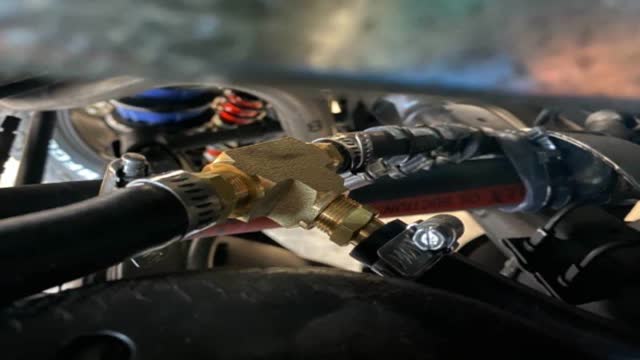

<p>Connect it to t piece between tanks, trim length of needed</p>

Connect it to t piece between tanks, trim length of needed

29
Step 29 of 31

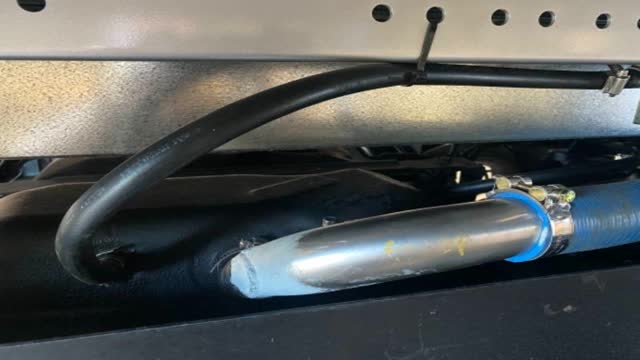

<p>Zip tie neatly</p>

Zip tie neatly

30
Step 30 of 31

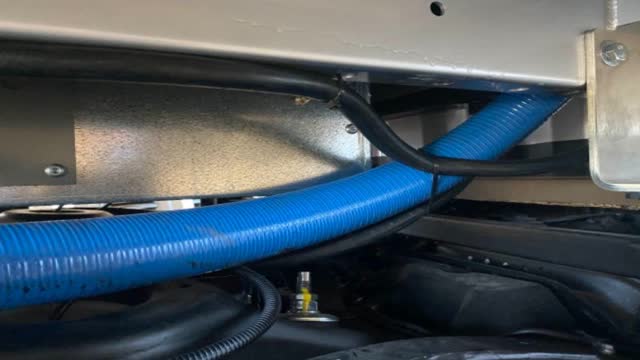

<p>Zip tie</p>

Zip tie

31
Step 31 of 31

Will look like this when completed
