How to replace a three-point seatbelt
Follow these instructions to replace your three-point seatbelt
Follow these instructions to replace your three-point seatbelt
1
Step 1 of 9

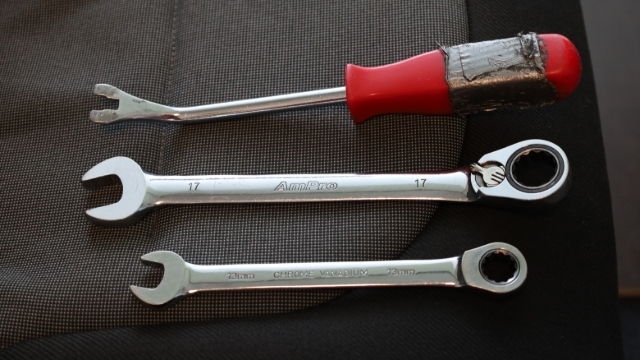

<p>You'll need the following tools:</p><p></p><ul><li><p>Clip Remover</p></li><li><p>17mm Spanner</p></li><li><p>13mm Spanner</p></li></ul><p></p>

You'll need the following tools:

  • Clip Remover

  • 17mm Spanner

  • 13mm Spanner

2
Step 2 of 9

Remove the seat base

3
Step 3 of 9

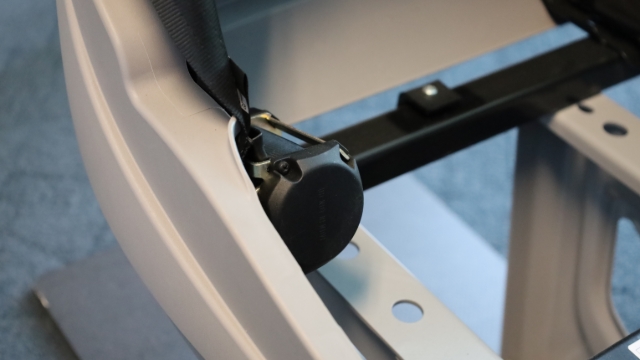

<p>To remove the retractor reel you will need to remove the side seat cover.</p>

To remove the retractor reel you will need to remove the side seat cover.

4
Step 4 of 9

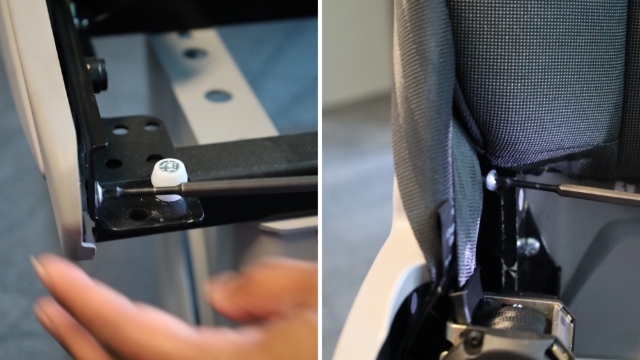

<p>Unscrew the front and rear screws in order to remove the side cover.</p>

Unscrew the front and rear screws in order to remove the side cover.

5
Step 5 of 9

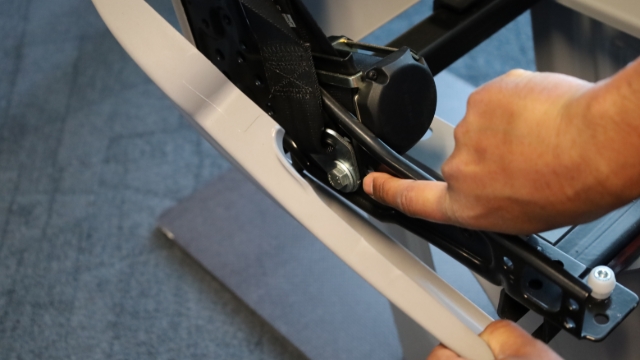

<p>With the side seat cover removed you will be able to access the bolt that attaches the retractor reel.</p>

With the side seat cover removed you will be able to access the bolt that attaches the retractor reel.

6
Step 6 of 9

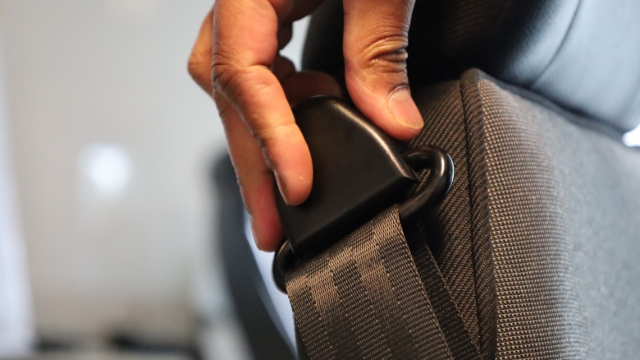

<p>Next, remove the top seatbelt cover.</p>

Next, remove the top seatbelt cover.

7
Step 7 of 9
<p></p>

8
Step 8 of 9

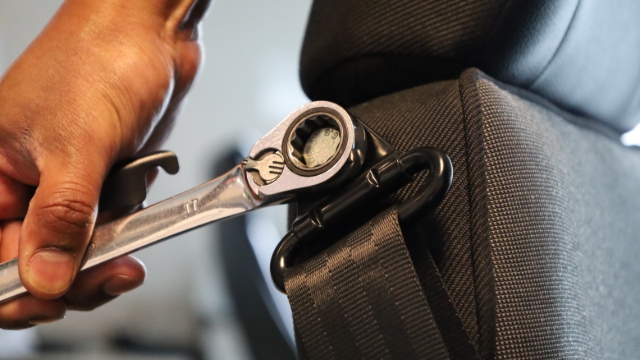

<p>Unbolt the top.&nbsp;</p>

Unbolt the top.

9
Step 9 of 9

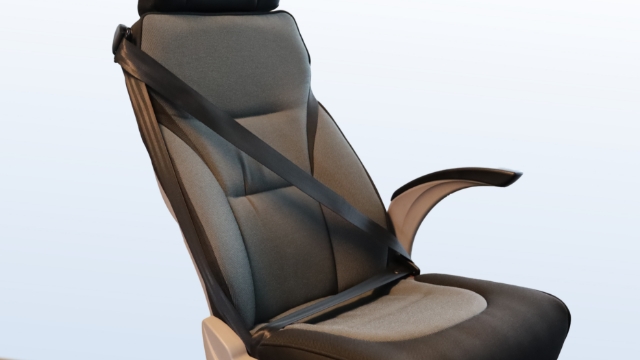

<p>Once the old belt has been removed simply reverse the process to attach the new belt.</p>

Once the old belt has been removed simply reverse the process to attach the new belt.
