UHF Mount Instructions - UMDM

Isuzu D-Max 2020+ / Isuzu MU-X 2021+ / Mazda BT-50 2020+ Tools required: 10mm spanner or 10mm long socket.

Isuzu D-Max 2020+ / Isuzu MU-X 2021+ / Mazda BT-50 2020+ Tools required: 10mm spanner or 10mm long socket.

1

Step 1 of 7

Step 1: Carefully remove the glove box by pulling firmly to detatch it from the dashboard.

2

Step 2 of 7

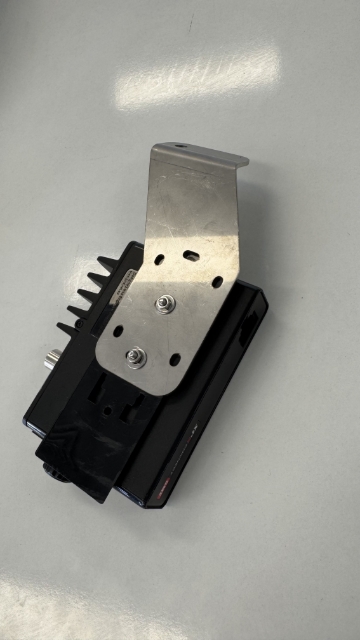

<p><strong>Step 2:</strong> Before installing, attach the UHF unit to the UHF bracket.</p>

Step 2: Before installing, attach the UHF unit to the UHF bracket.

3

Step 3 of 7

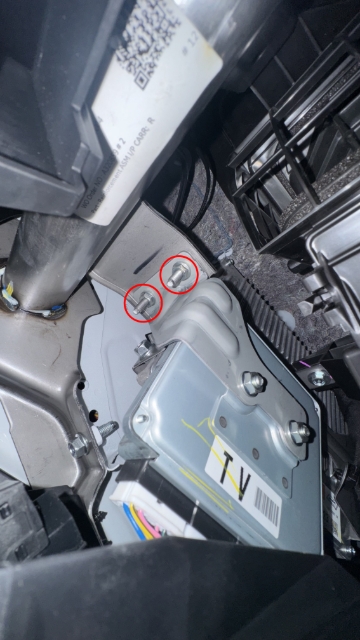

<p><strong>Step 3:</strong> Remove the two 6mm nuts (10mm head) from the frame.</p>

Step 3: Remove the two 6mm nuts (10mm head) from the frame.

4

Step 4 of 7

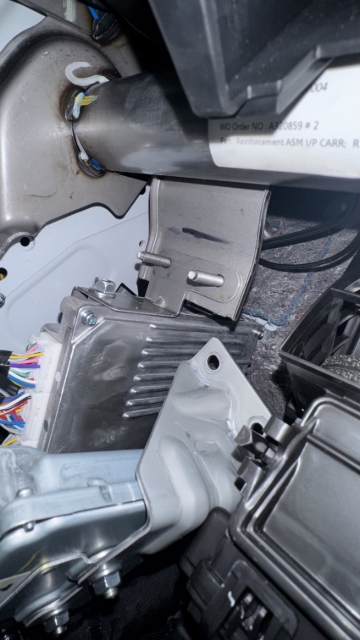

<p><strong>Step 4:</strong> Detach the bracket.</p>

Step 4: Detach the bracket.

5

Step 5 of 7

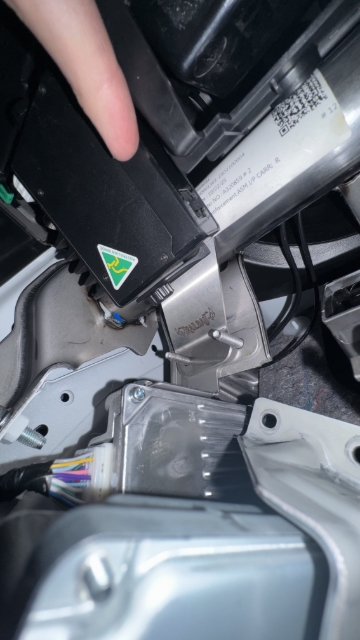

<p><strong>Step 5:</strong> Position the UHF unit behind the bracket on the frame.</p>

Step 5: Position the UHF unit behind the bracket on the frame.

6

Step 6 of 7

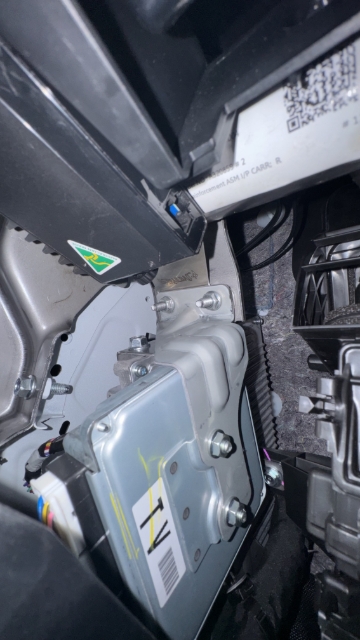

<p><strong>Step 6:</strong> Like shown in photo.</p>

Step 6: Like shown in photo.

7

Step 7 of 7

Step 7: Reinstall the glove box by pushing firmly to reattach it to the dashboard.
