Shut Down Robot welder
How to shut down the robot welder
How to shut down the robot welder
1
Step 1 of 10

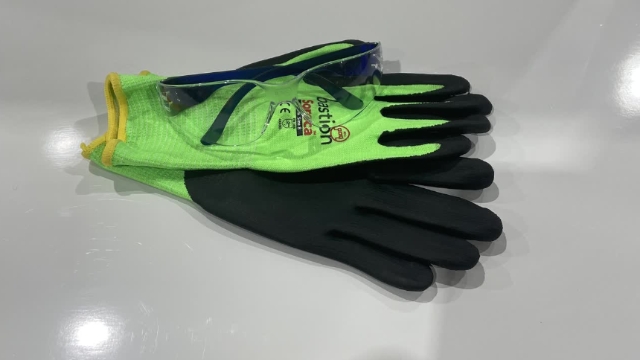

<p>Personal Protective Equipment (PPE). Gloves and Safety Glasses. If you don’t already have a pair of gloves and safety glasses, please see the store worker.</p>

Personal Protective Equipment (PPE). Gloves and Safety Glasses. If you don’t already have a pair of gloves and safety glasses, please see the store worker.

2
Step 2 of 10

QA Sheet. You will find a QA sheet at the machine, if there is no QA sheet there see the team leader or production. A QA sheet will need to be completed at the start, through out and at the end of the day.

3
Step 3 of 10

No tools required.

4
Step 4 of 10

Turn to teach mode🫳 on the hand held and with the key.

5
Step 5 of 10

Select program, type in 9998 then enter to get to the work home screen.

6
Step 6 of 10

Make sure he motors are on by pressing the+🟩 button and the green I button, the green I button will flash when the motors are on.

7
Step 7 of 10

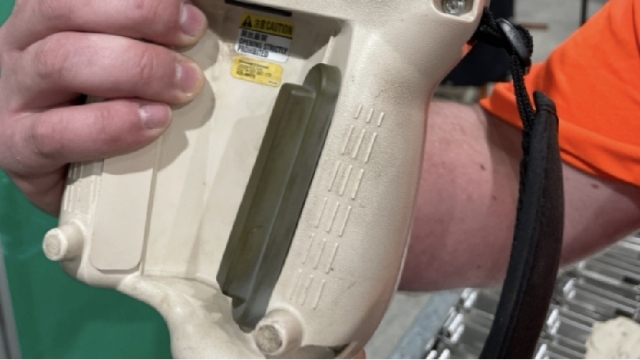

<p>Dead man's switch.</p>

Dead man's switch.

8
Step 8 of 10

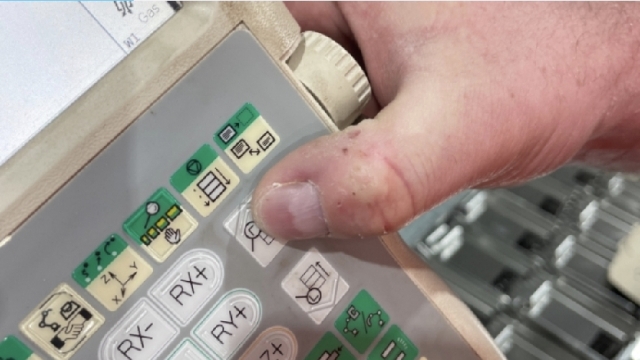

<p>Press the dead man's switch and the play forward button to move the robot to home position.</p>

Press the dead man's switch and the play forward button to move the robot to home position.

9
Step 9 of 10

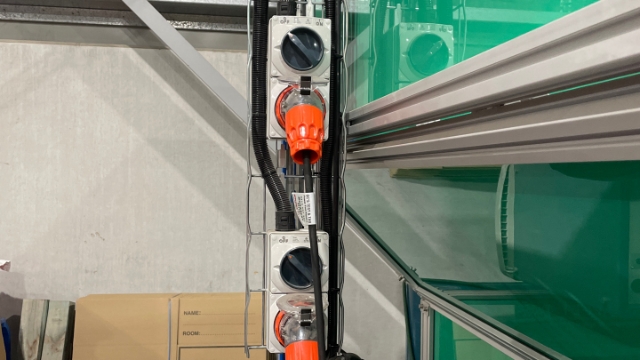

<p>Turn off the two main power switches.</p>

Turn off the two main power switches.

10
Step 10 of 10

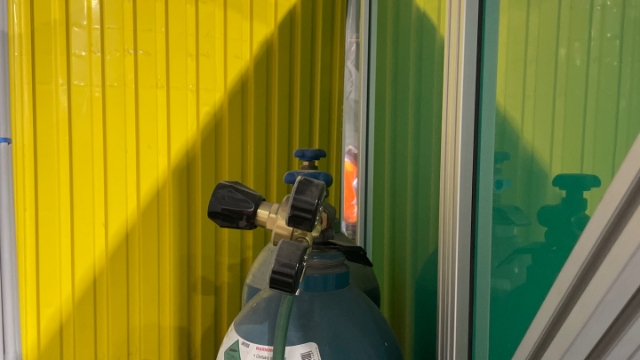

<p>Turn the gas’s off.</p>

Turn the gas’s off.
