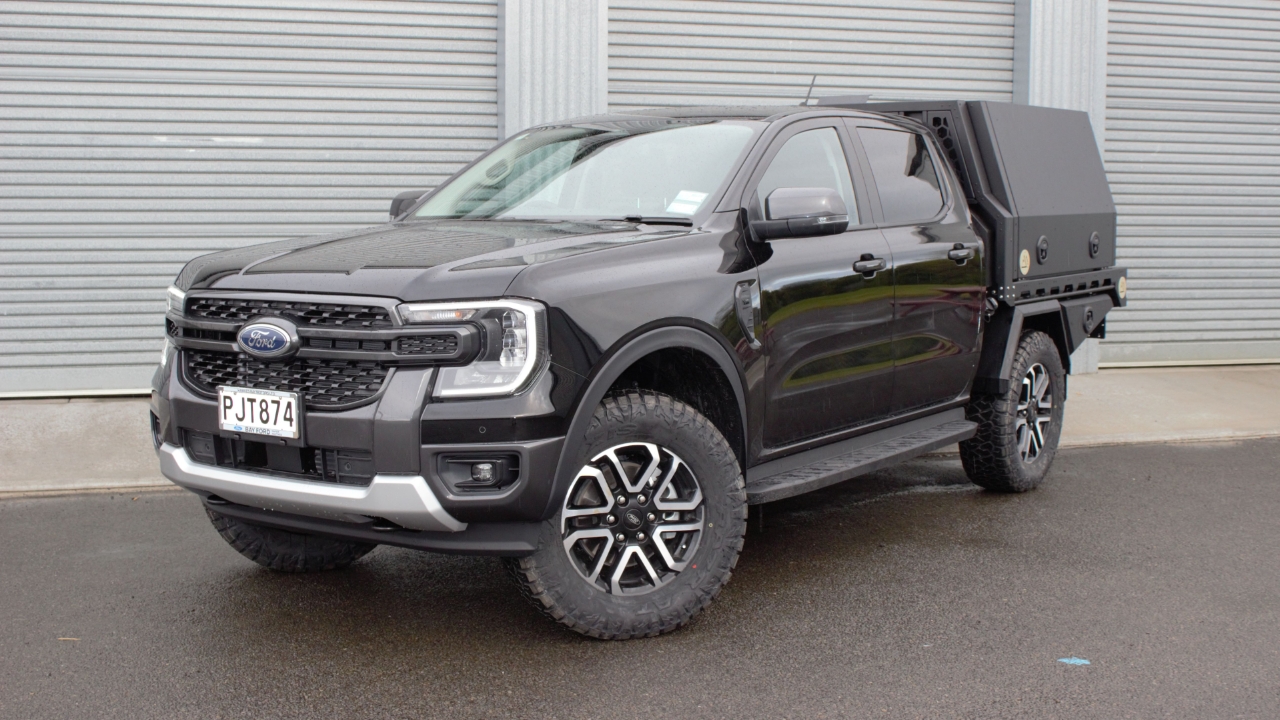

P703 Ford Ranger Trek-R Tray System Installation

How to install a Trek-R tray system on your P703 Ranger

Step 1 of 39

WARNING ⚠️

Step 2 of 39

Disconnect battery earth.

Step 3 of 39

Remove steel filler neck and protective sheath. Cut 105mm off the rubber filler hose. Rotate fuel tank breather.

Step 4 of 39

Cut large mount off the steel filler neck. Reinstall neck, leaving loose until final mounting position.

Step 5 of 39

Remove small plastic locator in front right mount. Install all 6 chassis mounts using m12x40 bolts with heavy washer, large square galvanised washer and nylock nut. Note the correct placement is important. (FR,FL,C,R) is cut into each mount.

Step 6 of 39

Tighten all 6 mounts enough to still be able to move mounts.

Step 7 of 39

Install tray.

Step 8 of 39

Ensure a 40mm gap between headboard and cab. Install the remaining 12x m12x30 bolts, flat washers (2x washers per bolt) and nylocks in the chassis mounts. Before fully tightening the bolts, ensure the tray is central and 40mm headboard gap remains.

Step 9 of 39

Torque all m12 bolts to 76ftlbs and mark when completed.

Step 10 of 39

Install filler neck and fuel cap. Cable tie rubber hose into position. Tighten all hose clamps.

Step 11 of 39

Secure diff and fuel tank breather with cable ties.

Step 12 of 39

Install guards with 4x m8x25 bolts, spring and flat washers. Slide the lug nuts over the mudguard rail in the correct positions so the guard remains centred over the wheel. Tighten bolts. Repeat on opposite side.

Step 13 of 39

Install the under mount toolboxes using 4x m8x25 bolts, flat washers and nylocks (2x flat washers per bolt) ensure box is centred between guard and rear bumper. Tighten bolts. Repeat on opposite side.

Step 14 of 39

Step 15 of 39

Step 16 of 39

Step 17 of 39

Step 18 of 39

Step 19 of 39

Note direction of indicator and top marked on tail light.

Step 20 of 39

Step 21 of 39

Step 22 of 39

Step 23 of 39

Step 24 of 39

Step 25 of 39

Step 26 of 39

Step 27 of 39

Install reverse sensor and BSM bracket on tray.

Step 28 of 39

Install reverse sensor and BSM bracket on tray. Repeat on opposite side.

Step 29 of 39

Step 30 of 39

Join the 550mm twin core wire to the number plate wires. Black to white and brown to red.

Step 31 of 39

Install reverse camera in the M2 mount.

Step 32 of 39

Install the camera on the tray and plug in. Bend camera bracket to view tow ball.

Step 33 of 39

Test all light functions.

Step 34 of 39

Check reverse camera is viewing tow ball and adjust if necessary. Check reverse sensors are operating correctly.

Step 35 of 39

Tape up all exposed wires and joins and rivet load resistor in to chassis main runner.

Step 36 of 39

Secure all wires with cable ties.

Step 37 of 39

Install plywood. Ensure decking screws are flush with top of plywood but not too far below plywood level as this will cause water to pool and swell the plywood.

Step 38 of 39

Install sides and tailgate and/or canopy/service body.

Step 39 of 39

Complete final QC check sheet.
