Fit Canopy to Tray

Knowby

Fit Canopy to Tray

1

Step 1 of 10

<p><strong>Tools Required</strong></p>
<ul>
<li>Forklift with Tyne Extensions</li>
<li>4 x Lifting Straps</li>
<li>4 x Large Clamps</li>
<li>Drill</li>
<li>Drill Bits: Small (5mm-10mm) Big (13mm)</li>
<li>Socket: 18mm</li>
<li>Spanner: 19mm</li>
<li>Air Blower to blow off metal shavings</li>
</ul>

Tools Required

Forklift with Tyne Extensions
4 x Lifting Straps
4 x Large Clamps
Drill
Drill Bits: Small (5mm-10mm) Big (13mm)
Socket: 18mm
Spanner: 19mm
Air Blower to blow off metal shavings

2

Step 2 of 10

<p><strong>Pro Tip</strong>
The most common mistake is not lifting the canopy back up, to blow off the metal shavings trapped between the canopy and Tray floor. Don't forget this step!</p>

Pro Tip The most common mistake is not lifting the canopy back up, to blow off the metal shavings trapped between the canopy and Tray floor. Don't forget this step!

3

Step 3 of 10

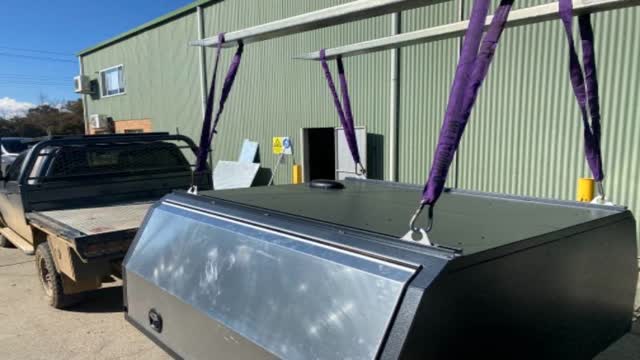

<p>Use a suitable method to lift canopy onto Tray</p>

Use a suitable method to lift canopy onto Tray

4

Step 4 of 10

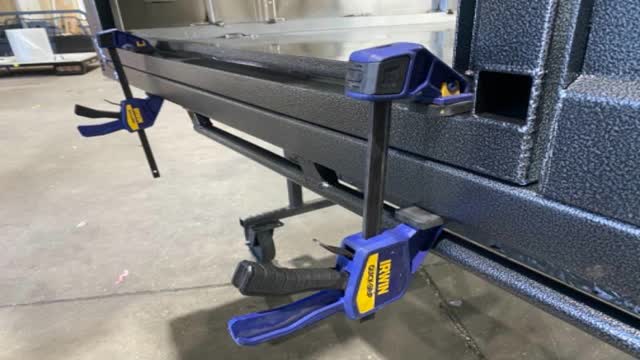

<p>Align canopy squarely and clamp tightly</p>

Align canopy squarely and clamp tightly

5

Step 5 of 10

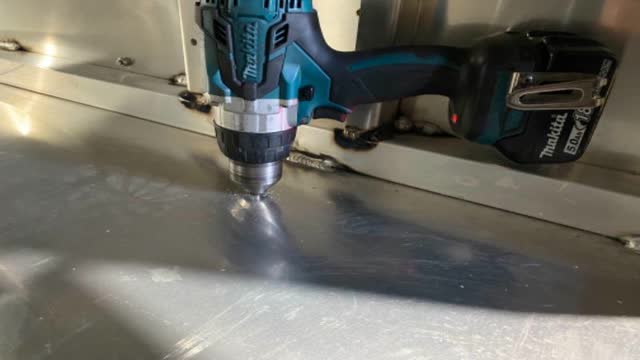

<p>Drill through Tray and Canopy</p>

Drill through Tray and Canopy

6

Step 6 of 10

Remove canopy and drill tray to 13mm.

7

Step 7 of 10

IMPORTANT Blow off all metal shavings

8

Step 8 of 10

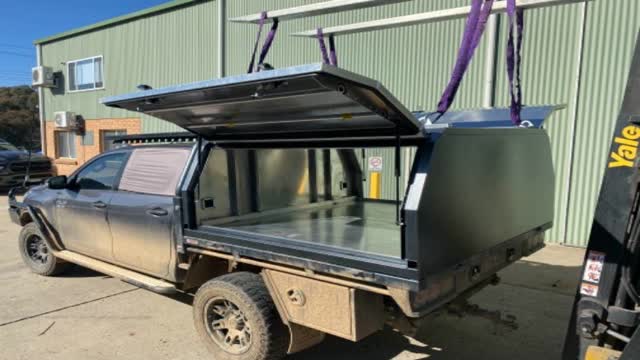

<p>Refit canopy</p>

Refit canopy

9

Step 9 of 10

Tighten fasteners

10

Step 10 of 10

IMPORTANT Clean out inside of canopy
