L10 Filler - CIP
Instructions on how to start up CIP program on filler.
Instructions on how to start up CIP program on filler.
1
Step 1 of 7

Open top door on seamer and fit cleaning cover.

Ensure light on sensor is ON once fitted

2
Step 2 of 7

Close door and reset

3
Step 3 of 7
<p>Check if CIP cups have been fitted.</p><ul><li><p>If Yes, Continue straight to Step <strong>6</strong></p></li><li><p>If No, continue to next step</p></li></ul><p></p>

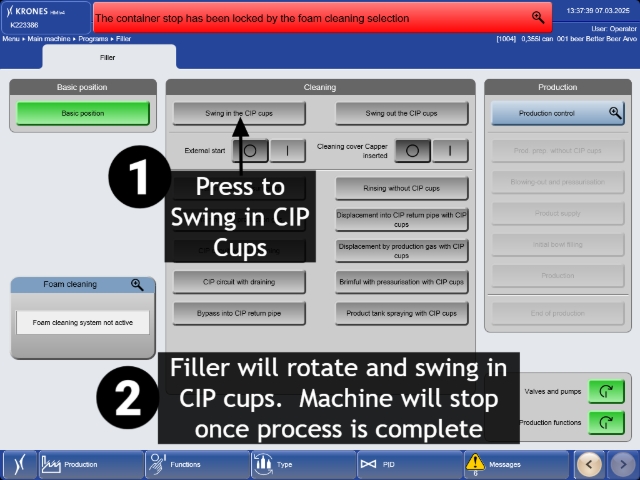

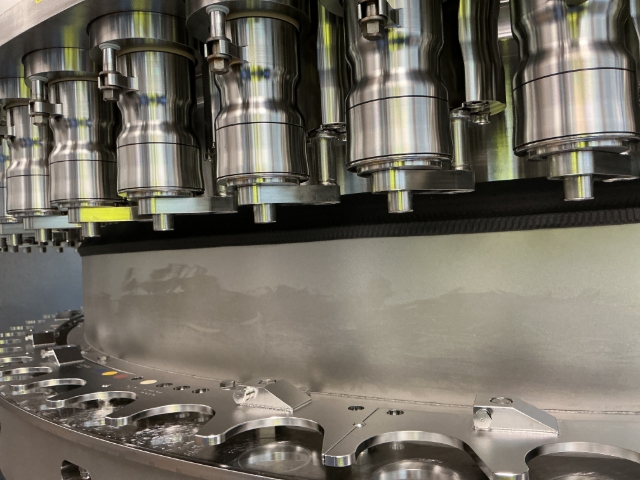

Check if CIP cups have been fitted.

  • If Yes, Continue straight to Step 6

  • If No, continue to next step

4
Step 4 of 7
5
Step 5 of 7
6
Step 6 of 7
7
Step 7 of 7

Filler will now sit and wait for external signal from brewhouse to begin the CIP process.

Ensure all alarms are reset and doors are kept closed.
