When cups all come off cows and machine stops
1
Step 1 of 11

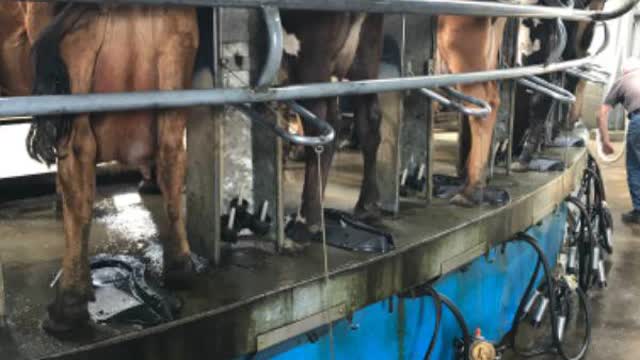

<p>Cups will all come off and retention bars will drop</p>

Cups will all come off and retention bars will drop

2
Step 2 of 11

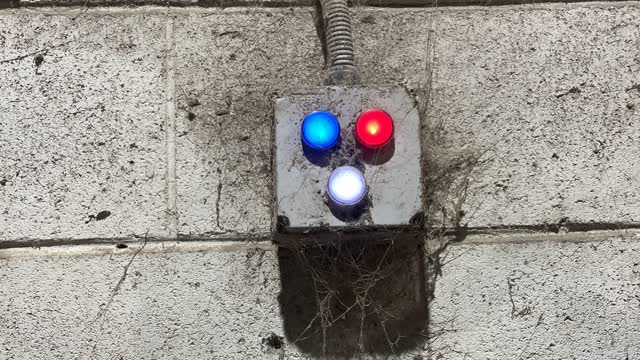

<p>Check to ensure power is still on - lights should stay on</p>

Check to ensure power is still on - lights should stay on

3
Step 3 of 11

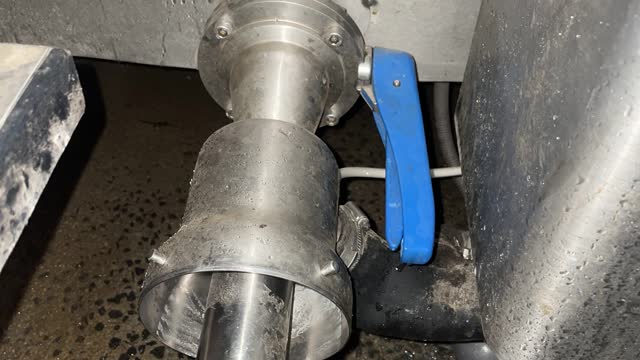

<p>Make sure the vat hose and milk tap are in the right position</p>

Make sure the vat hose and milk tap are in the right position

4
Step 4 of 11

Go to hygeinis and make sure the milking machine is turned off.

5
Step 5 of 11

Check the receival cab in middle of platform and make sure black float is down

6
Step 6 of 11

If float is up high you need to take of the Perspex cover of the drum and pull the black float down

7
Step 7 of 11

Go to generator room and make sure the ends of the white drum are on. If not place back on to the end of drum

8
Step 8 of 11

Go back to hygeinis and start machine up

9
Step 9 of 11

Ensure all black buttons are pulled out of cluster bowls

10
Step 10 of 11

You may need to turn both red taps off which are above bays 13 and 40

11
Step 11 of 11

Gradually open one of the taps and the cups and retention bars should lift
