Fit Stainless Rear Guard
1
Step 1 of 8

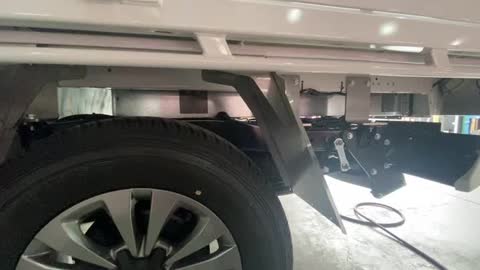

Looks like this when done Passenger side version shown

2
Step 2 of 8

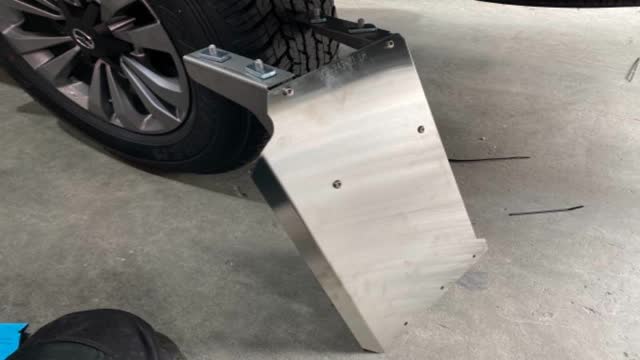

<p>Identify the supplied guard</p>

Identify the supplied guard

3
Step 3 of 8

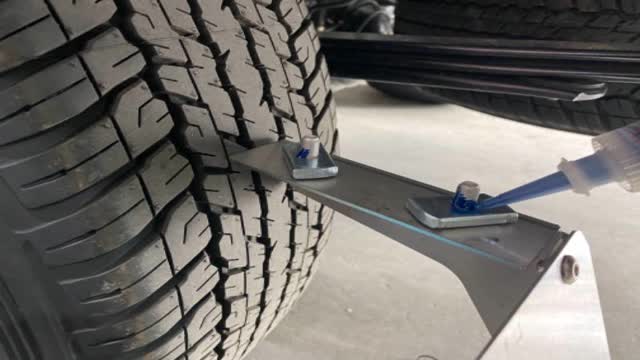

<p>Apply Loctite to threads</p>

Apply Loctite to threads

4
Step 4 of 8

Mostly unwind and align channel nuts

5
Step 5 of 8

Push bolt up and rotate 90 degrees

6
Step 6 of 8

make a nice gap between tyre and guard

7
Step 7 of 8

Tighten, 13mm

8
Step 8 of 8

Done
