Re-Fit Camera: Amarok (2012-2022)

Knowby

Re-Fit Camera: Amarok (2012-2022)

1

Step 1 of 10

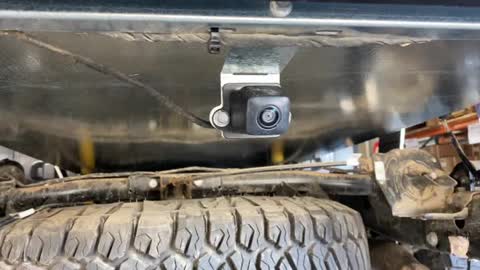

Will look like this when done

2

Step 2 of 10

Identify the supplied bracket

3

Step 3 of 10

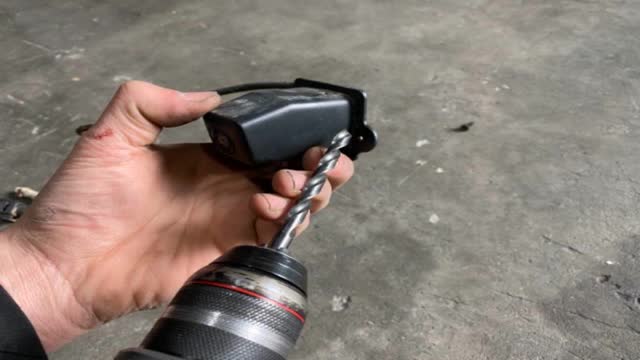

<p>Drill the factory camera bracket, to suit M6 bolts (6.5mm is nice)</p>

Drill the factory camera bracket, to suit M6 bolts (6.5mm is nice)

4

Step 4 of 10

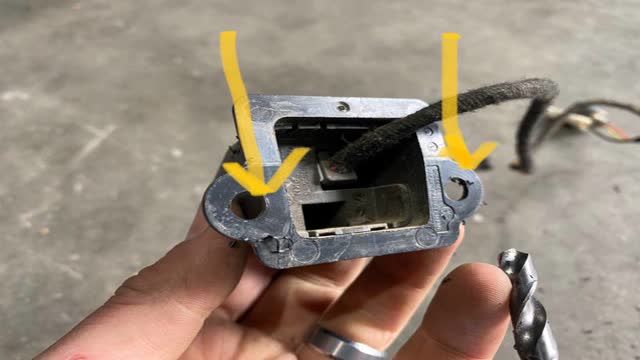

<p>Drilling here</p>

Drilling here

5

Step 5 of 10

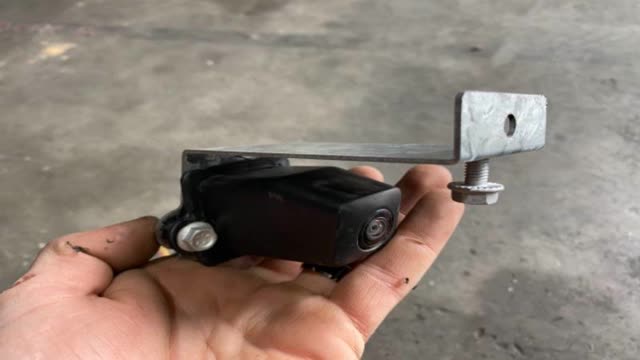

<p>Assemble camera to bracket</p>

Assemble camera to bracket

6

Step 6 of 10

Mounts here (shown here to the underside of a Drawer)

7

Step 7 of 10

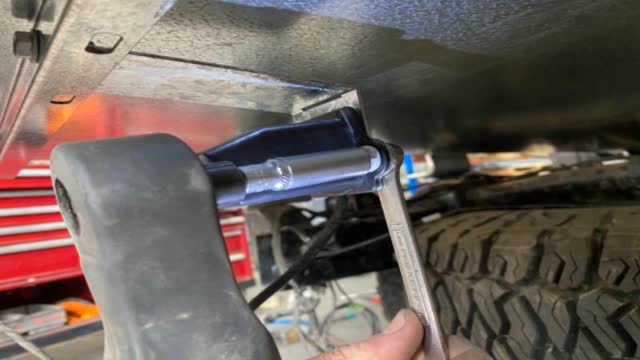

<p>Tighten, 10mm</p>

Tighten, 10mm

8

Step 8 of 10

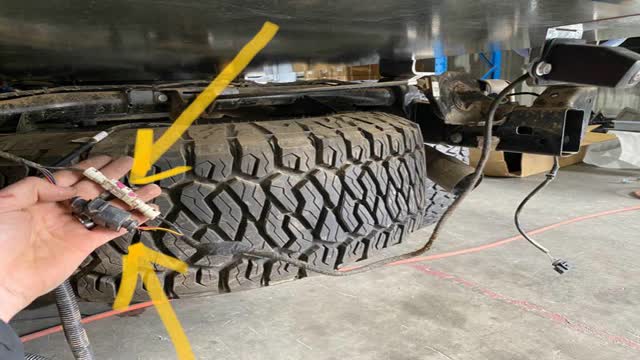

<p>Connect haness, passenger side (there are 2 plugs!)</p>

Connect haness, passenger side (there are 2 plugs!)

9

Step 9 of 10

Put vehicle into reverse, to check everything is working correctly

10

Step 10 of 10

Zip tie NEATLY and done
