Grain not dropping or orange light on

Knowby

Grain not dropping or orange light on

1

Step 1 of 13

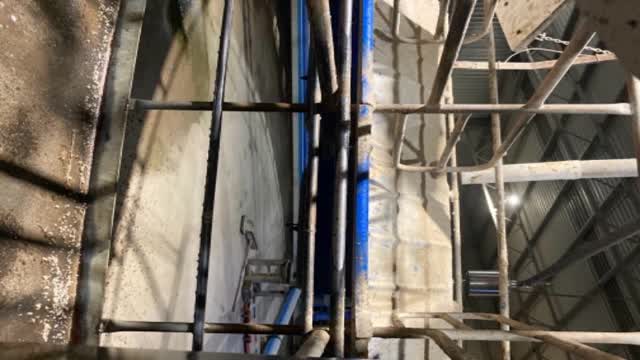

<p>If you notice grain isn’t dropping to cows OR</p>

If you notice grain isn’t dropping to cows OR

2

Step 2 of 13

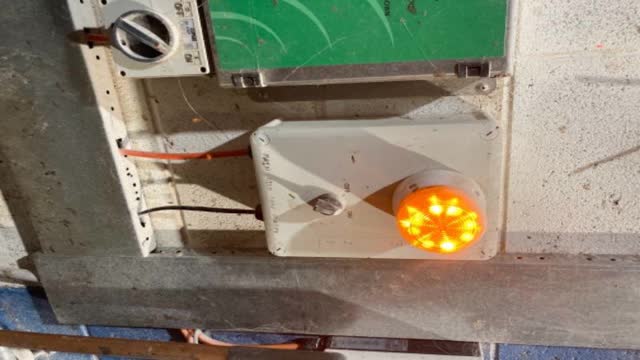

<p>Orange light is in behind cups on</p>

Orange light is in behind cups on

3

Step 3 of 13

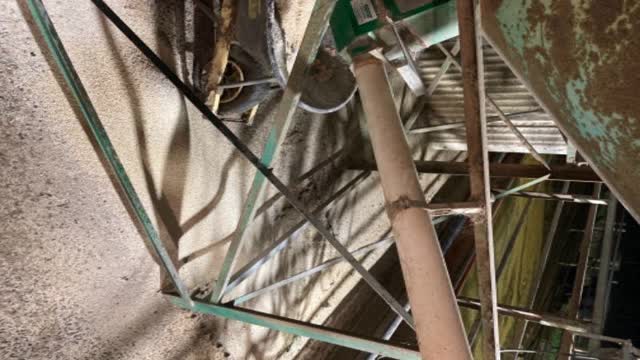

<p>Keep platform spinning while cows are loading and walk to the green silo make sure the auger goes each time a cow goes on platform</p>

Keep platform spinning while cows are loading and walk to the green silo make sure the auger goes each time a cow goes on platform

4

Step 4 of 13

<p>If auger is going properly and it sounds ‘hollow’ go into grain crush room</p>

If auger is going properly and it sounds ‘hollow’ go into grain crush room

5

Step 5 of 13

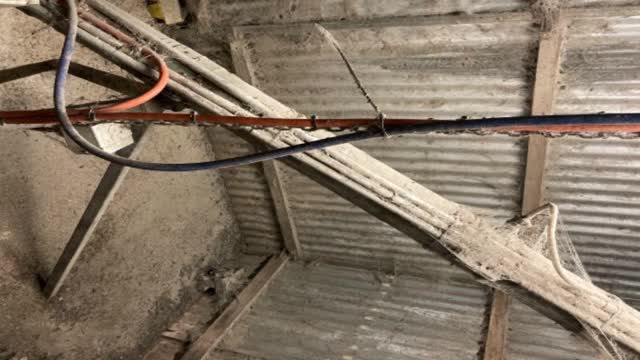

<p>Listen for whether the filler auger is going - it’ll be obvious if it is or isn’t</p>

Listen for whether the filler auger is going - it’ll be obvious if it is or isn’t

6

Step 6 of 13

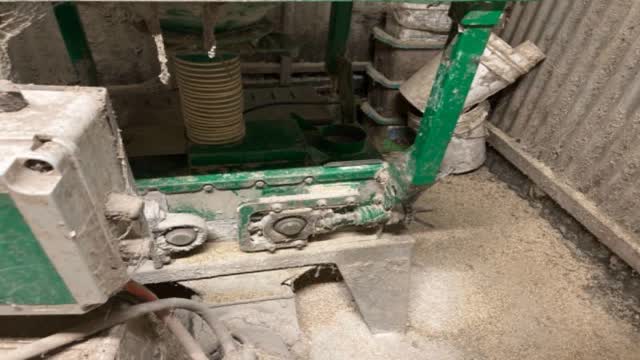

<p>If auger is going look at the roller mill - BUT DONT TOUCH</p>

If auger is going look at the roller mill - BUT DONT TOUCH

7

Step 7 of 13

If rollers are going then shut down grain system by switching it off

8

Step 8 of 13

Go to the back of the roller mill and underneath it jiggle the glass window with magic sensor

9

Step 9 of 13

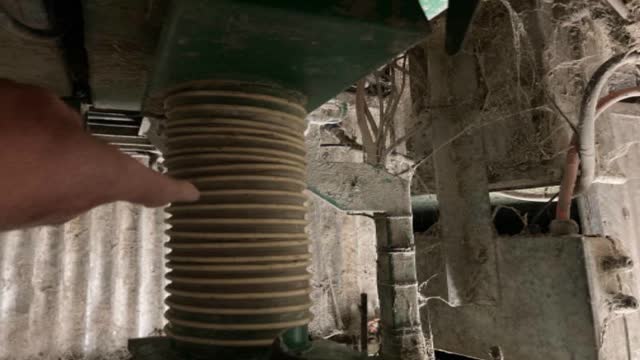

<p>Check the drop chute to make sure the grain is actually dropping. You can see if it is full - it’ll be opaque like in the photo</p>

Check the drop chute to make sure the grain is actually dropping. You can see if it is full - it’ll be opaque like in the photo

10

Step 10 of 13

If it is clear then you need to open the drop gate a little bit

11

Step 11 of 13

Go back to the main switch and turn the system back on

12

Step 12 of 13

Stand in the room for a minute and make sure the system starts back up. You’ll notice straight away once grain starts getting crushed from the sound of the machine

13

Step 13 of 13

If it’s still not working call Jake or James
