CF Tray Brace Install
1
Step 1 of 3

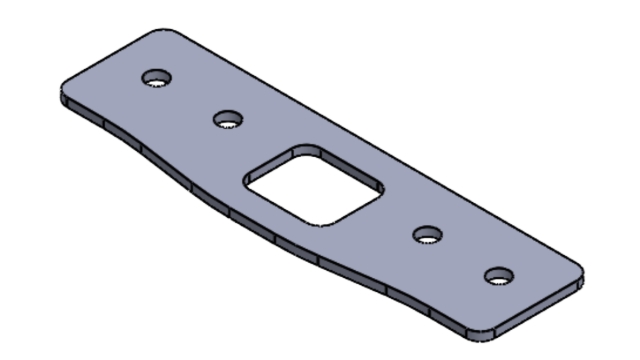

<p>Required Parts:&nbsp;</p><p>1 x Brace, PRT-012896</p><p>4 x 6.4mm Ali Rivets</p>

Required Parts:

1 x Brace, PRT-012896

4 x 6.4mm Ali Rivets

2
Step 2 of 3

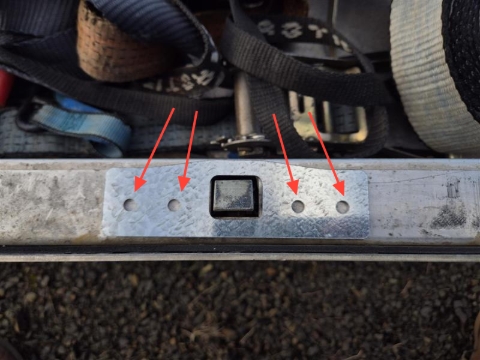

<p>Place the brace PRT-012896 over the latch pin.</p><p></p><p>Mark and drill 4 x holes with a 6.5mm drill bit.</p>

Place the brace PRT-012896 over the latch pin.

Mark and drill 4 x holes with a 6.5mm drill bit.

3
Step 3 of 3

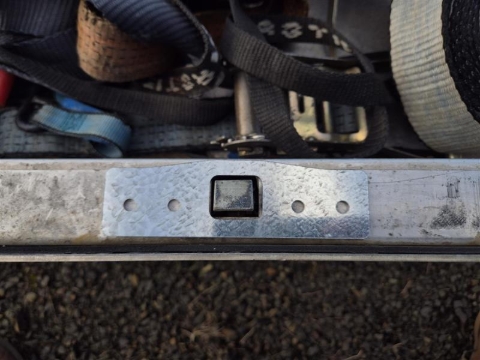

<p>Using 4 x 6.4mm ali rivets. Rivet the brace plate into place.</p>

Using 4 x 6.4mm ali rivets. Rivet the brace plate into place.
