Components

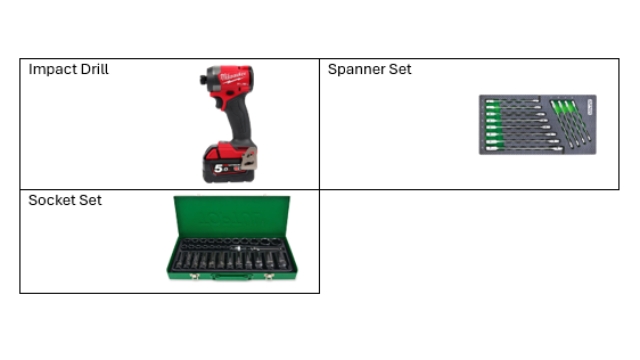

Tools List

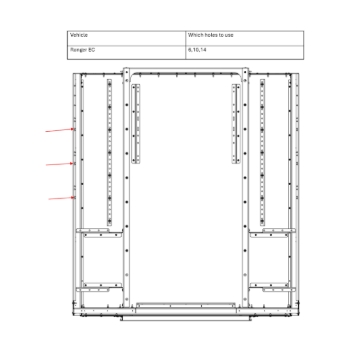

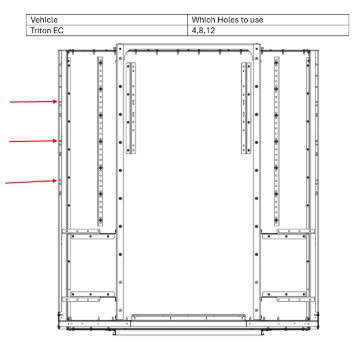

Before fitting the mudguard. Ensure the plus nuts have been put in the correct holes for the UTE the mudguard is being fitted to. See Pg. 6 onwards.
Before fitting the mudguard. Ensure the spire bolts have been put in the correct holes for the UTE the mudguard is being fitted to. See Pg. 6 onwards.
Fit the mudguard using M6 x 35mm hex head bolts with an M6 spring washer and an M6 flat head washer.
Fit the mudguard using M6 x 35mm hex head bolts with an M6 spring washer and an M6 flat head washer.
Tighten all bolts to spec.

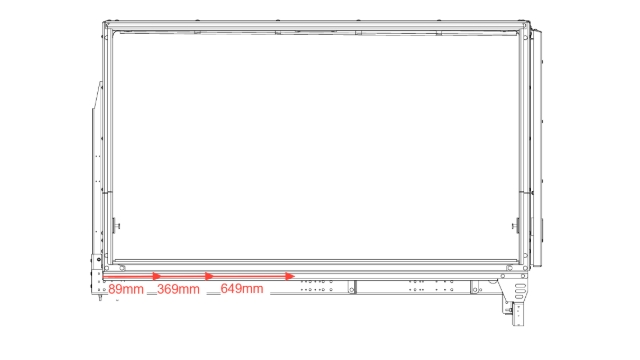

DMAX DC
Measurements shown are the distance to the hole for the mudguard.

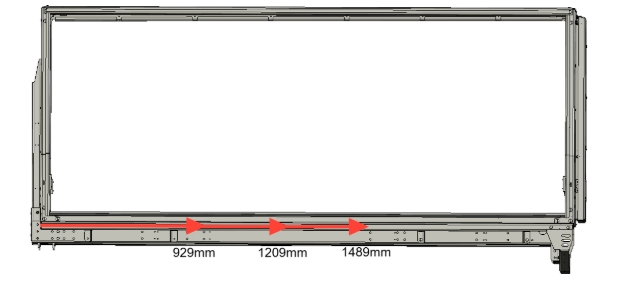

Hilux SC
Use this diagram to mount the mudguards
1st hole: 929mm
2nd hole: 1209mm
3rd hole: 1489mm
Please fill out the hard copy QA sheet included with the product you got.
Once filled out, please send it back to
If the hard copy does not arrive, please contact us.
0800 663 500
