Toyota Hilux Central Locking Loom Installation
How to install your central locking loom to your Toyota Hilux
How to install your central locking loom to your Toyota Hilux
1
Step 1 of 23

Remove earth clamp on battery.

2
Step 2 of 23

Prepare the vehicle harness to be routed from the engine bay to the rear of the cab. Taping a metre of plastic tube or wire to the canopy connecting end can help with routing but not essential.

3
Step 3 of 23

Feed tube/harness beside brake lines and factory harnesses ensure M2 harness is well clear of any hot or moving parts.

4
Step 4 of 23

Feed tube/harness beside brake lines and factory harnesses ensure M2 harness is well clear of and hot or moving parts. The exit point from under the cab should be next to the fuel filler.

5
Step 5 of 23

Remove passengers kick panels and glove box.

6
Step 6 of 23

Feed the interior harness branch through the factory bulkhead gland in the fire wall. Tape too a short length of wire. You may need to cut the "tit' off the rubber boot. this can be tight routing through, so silicone grease or any lube will help.

7
Step 7 of 23

Remove glove box kick panel. Pull the interior harness through the factory bulkhead gland. prepare interior harness interconnect.

(NOTE)

Buzzer is not installed/connected for hardlid installs

8
Step 8 of 23

Connect Lock/unlock patch.

9
Step 9 of 23

Connect buzzer to interior harness and stick to glove box kick panel.

10
Step 10 of 23

House the terminals from the interior branch of the vehicle harness. Loosely connect the loose white connector to the interior harness and match the colours when housing the terminals. Then reconnect.

11
Step 11 of 23

Connect the earth ring terminal to the raw steel part of the dash, above the glove box cavity.

12
Step 12 of 23

Connect the ignition harness to the add a circuit fuse holder.

13
Step 13 of 23

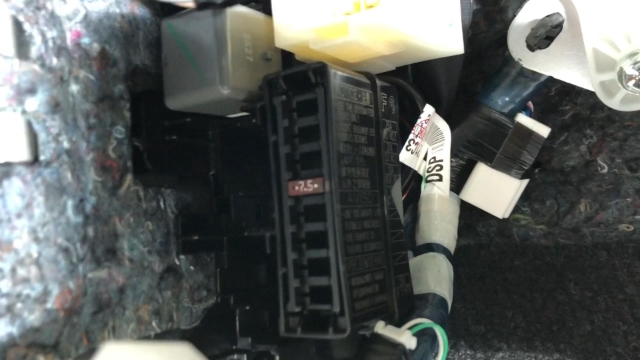

<p>(Note)</p><p><span style="font-size: 34px; line-height: 1.4;">SR5</span> model uses 7.5amp fuse located passenger side kick panel </p><p></p>

(Note)

SR5 model uses 7.5amp fuse located passenger side kick panel

14
Step 14 of 23

SR Model will require you to tap into a plug on the passengers side kick panel for Ignition

Cut (GREEN) wire from plug located in the passengers side foot well close to the firewall

Splice into the green wire and connect ignition wiring fuse and plug.

15
Step 15 of 23

Tidy all loose wires and tuck out of sight.

16
Step 16 of 23

Re-instate glove box kick panel.

17
Step 17 of 23

House all terminals in the canopy interconnect connector. place the blanking plug in the unused circuit 12. Install terminal locking wedge.

18
Step 18 of 23

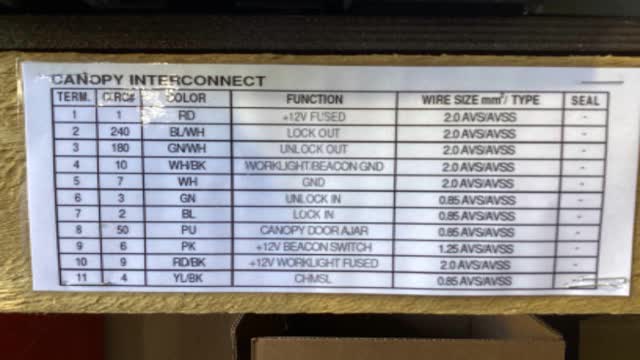

<p>Pin out table.</p>

Pin out table.

19
Step 19 of 23

Mount canopy interconnect connector in headboard with screws. (If you have a service canopy, skip this step)

20
Step 20 of 23

Connect the harness earth to the body earth behind the accessory fuse holder.

21
Step 21 of 23

Connect the red positive wire to the battery positive clamp bracket.

22
Step 22 of 23

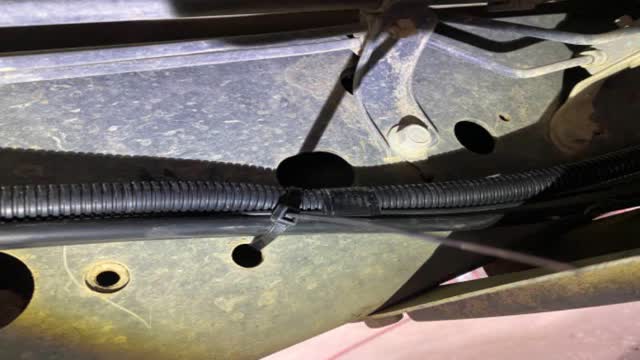

<p>Secure the harness along the chassis rails and engine bay with cable ties every 300mm and away from all hot and moving parts.</p>

Secure the harness along the chassis rails and engine bay with cable ties every 300mm and away from all hot and moving parts.

23
Step 23 of 23

Put earth terminal back on battery and test lock, unlock (note, doors must be closed for this to work), canopy light operation on both the small urbane switch on the actual light and the pin switches, door ajar buzzer.
