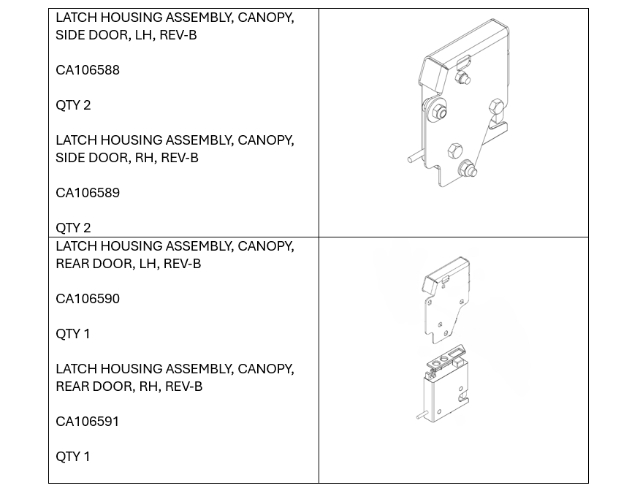

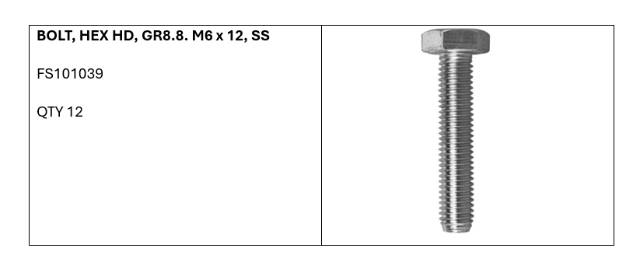

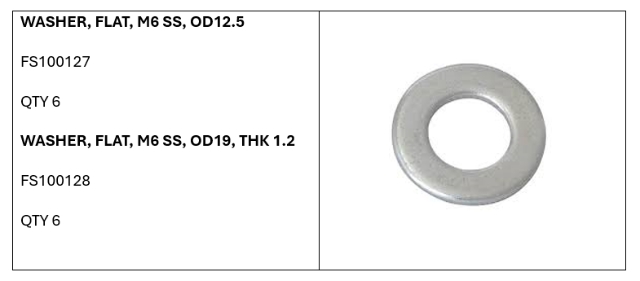

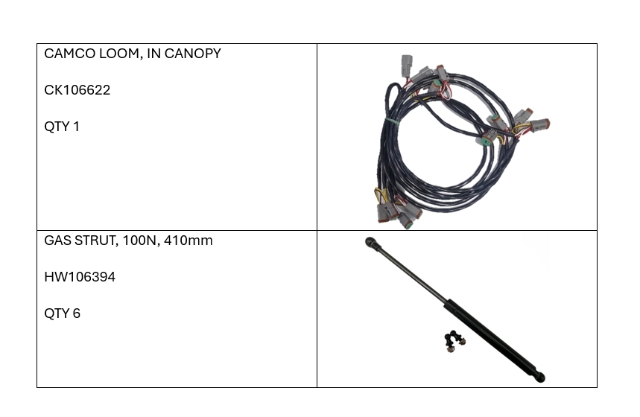

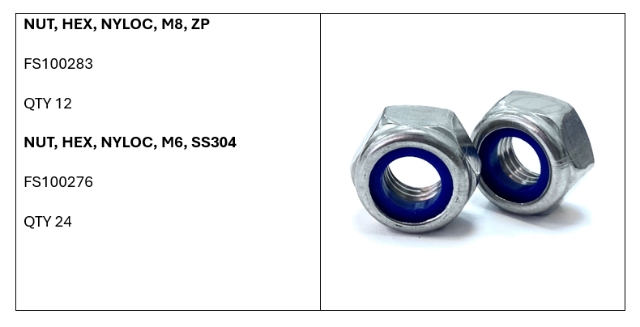

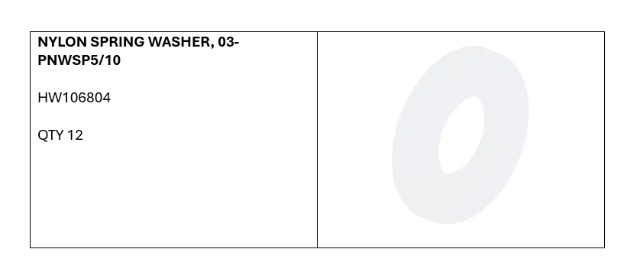

Components List
Components List
Components List
Components List
Components List
Components List

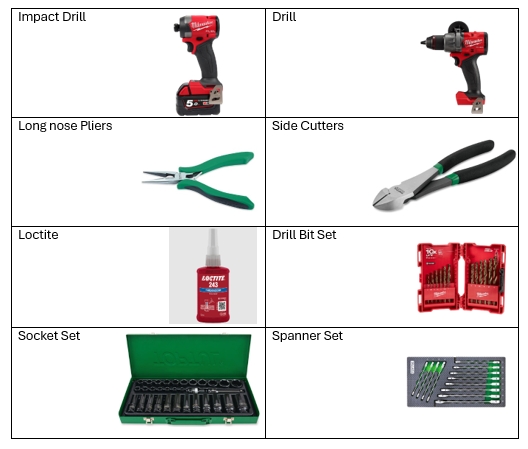

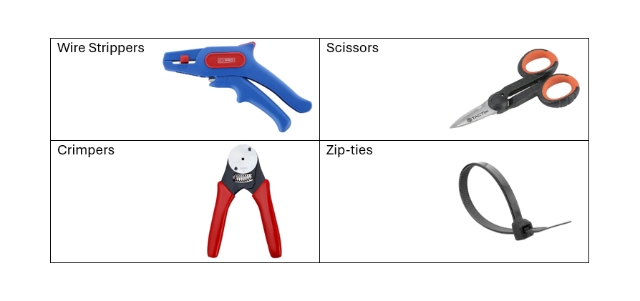

Tools List
Tools List
Torque Values
When fitting the canopy loom, ensure that the 2-pin plug with red and white wire face to the right around the canopy.
Fit the wiring into the canopy, and use zipties in each of the 4 corners of the canopy; don't tighten them fully. Ensure that the red/white wires face to the right.
Push the latch wires through the slot shown in the video. Then, pull them all the way up behind the corner brace and tighten them securely.
Place the M6x12 in the provided holes on the latch cover. Put an M6 Nyloc nut on it. Leave loose.

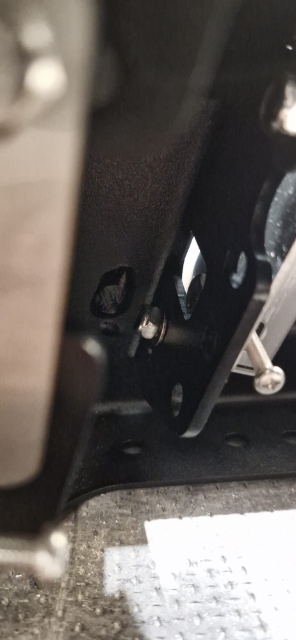

When fitting the latches, ensure that the smaller washer is placed on the bottom.
Washer Flat, M6, 12.5 OD

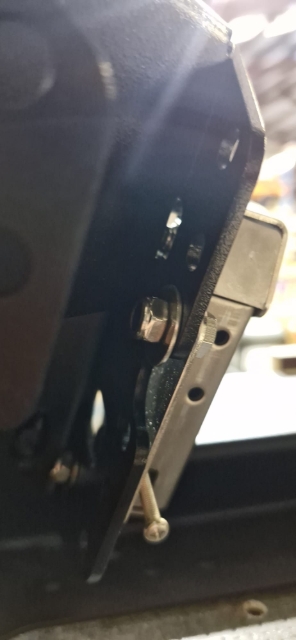

On the top, use:
Washer Flat M6 19 OD
Same as step 5.
Once all the latch wires have been put into the right place. Place them in the 4-way socket (Red to 1, White to 2, Yellow to 3, Green/Black to 4)
Insert the wedge into the socket, and make sure it clips in. Then, plug the socket into the plug. Make sure the right socket is plugged into the right plug.

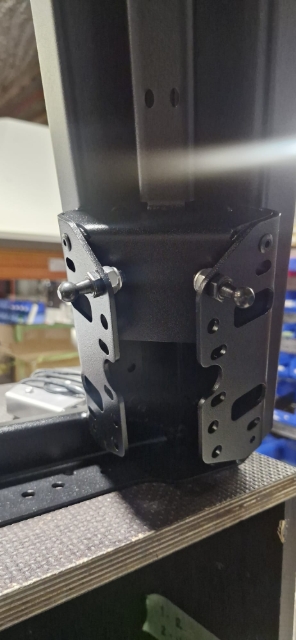

Fit M8 ball ends to the spot shown. Fit using M8 Nylocs.
Remove the strut clip, then fit the strut.
Refit the strut clips.
Gather 12 stainless M6 nyloc nuts and washers as shown.
Apply some loctite grease to the screws on the hinges of the doors.
Fit the door to the canopy. Tighten using the nyloc and washers. Then attach the top of the strut with the clip.
Attaching clip to top of the strut.
Fitting side door.
Cut the canopy door wire to at the bottom of the strut.
Cut the door wire in half so you have the red and black wires showing at.
Strip 15mm of wire and then crimp Deutsch pins to the red and black wire. Do this for all 3 canopy door wires.

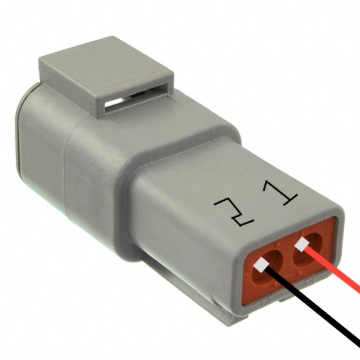

The red wire goes to 1 and the back wire goes to 2
Tighten the latches on the canopy and adjust them till the door locks into place and can open with ease
Same as step above
Adjusting latch.
Lock the door into the loose locks to make sure the door is locked in right when you tighten the latches.
Tape prep the strip light and then fit double sided tape.
Tape prep the bar for the light.
Fit the strip light.
Cut the ziptie that is goling the loom.
Tidy away the looms showing using the ziptie holes. Ensure the looms are out of sight.
Tidy looms behind the boxing.
Same as steps above.
Same as steps above
Tidy finished canopy.
Ensure doors are tested, light turns off when doors are shut.
Please fill out the hard copy QA sheet included with the product you got.
Once filled out, please send it back to
If you have issues with instructions and need assistance, please contact.
+64 21 349 001
If the hard copy does not arrive, please contact us.
0800 663 500
