CANOPY, HILUX N90 2026+
1
Step 1 of 57
2
Step 2 of 57

Contents (Click to view).

STEP 4: Components List

STEP 8: Tools List

STEP 9: Torque Values

STEP 10: Battery

STEP 11: Fitting Kit Installation

STEP 33: Canopy Installation

3
Step 3 of 57

Contents (Click to view)

STEP 37: Cab to Canopy Loom

STEP 46: Relay

STEP 47: Central Locking/Door Ajar Alarm

STEP 52: Fuse/Earth

STEP 57: QA Sheet

4
Step 4 of 57

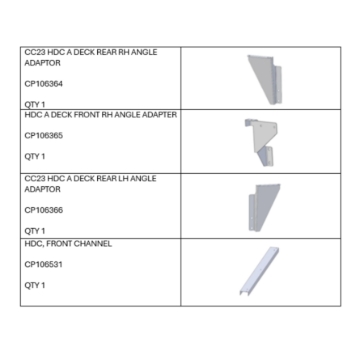

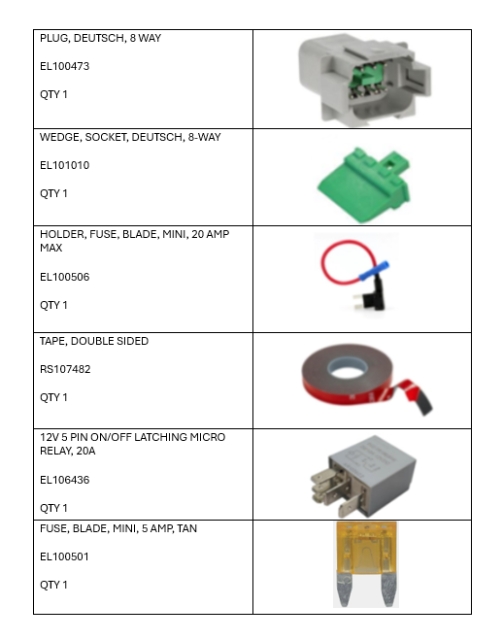

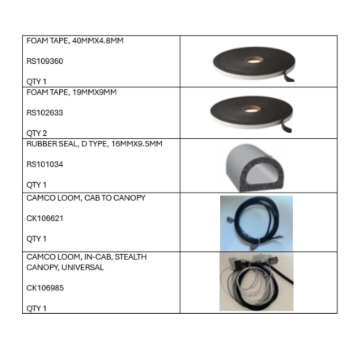

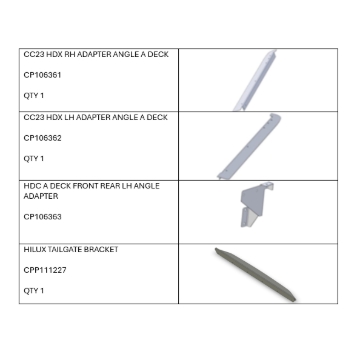

<p>Components List</p>

Components List

5
Step 5 of 57
<p>Components List</p>

Components List

6
Step 6 of 57
<p>Components List</p>

Components List

7
Step 7 of 57
<p>Components List</p>

Components List

8
Step 8 of 57

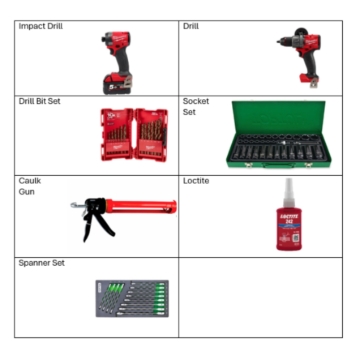

<p>Tools List</p>

Tools List

9
Step 9 of 57

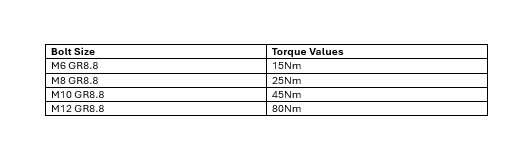

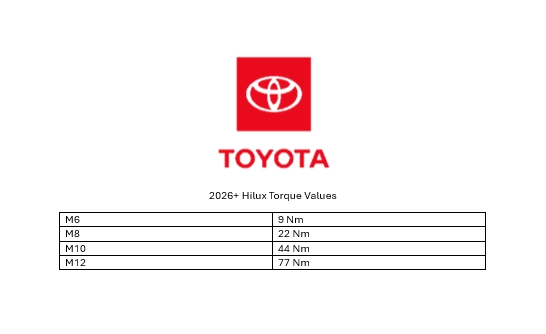

<p>Torque Values</p>

Torque Values

10
Step 10 of 57

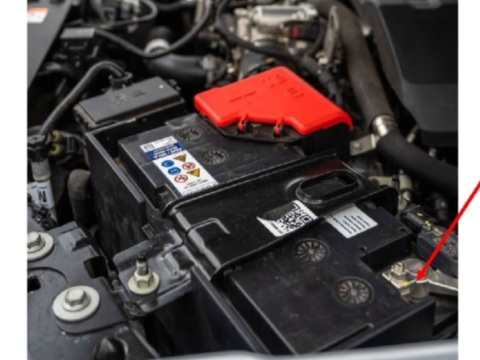

<p>Remove the negative terminal before starting.</p>

Remove the negative terminal before starting.

11
Step 11 of 57

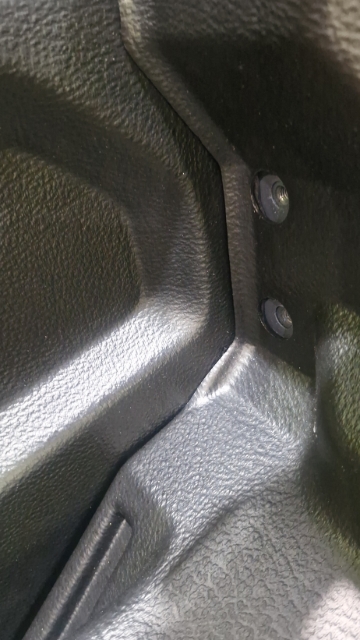

<p>Remove the tie-downs points at the front of the wellside.</p>

Remove the tie-downs points at the front of the wellside.

12
Step 12 of 57

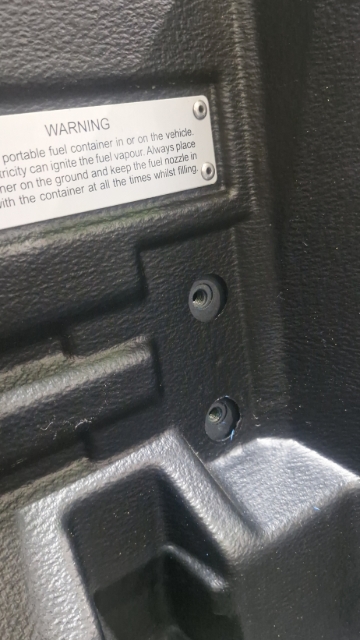

<p>Remove the tie downs at the rear of the wellside.</p>

Remove the tie downs at the rear of the wellside.

13
Step 13 of 57

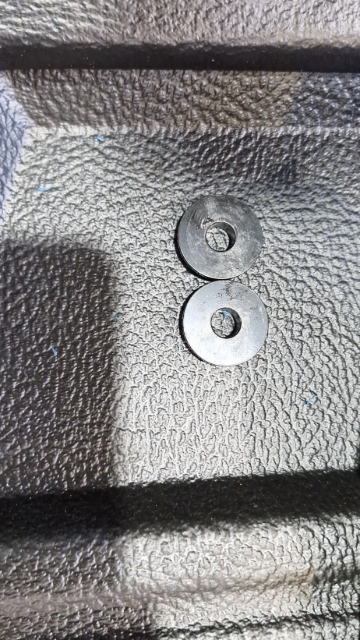

<p>Ensure these spacers are kept when taking the tie-down points off as these will need to be used when fitting the brackets.</p>

Ensure these spacers are kept when taking the tie-down points off as these will need to be used when fitting the brackets.

14
Step 14 of 57

Using the original tie-down points, fit the rear brackets (CP106364/66) using:

M8x35 Bolts

M8 Washers

Loctite.

15
Step 15 of 57

Tighten to wellside.

16
Step 16 of 57

Fit the front brackets (CP106363/65) to the wellside using:

M8x35 Bolts

M8 Washer

Loctite

Fit loosely.

17
Step 17 of 57

Tape prep the front of the wellside for foam tape using tape primer.

18
Step 18 of 57

Fit 19x9mm foam tape (RS102633) to the front of the wellside.

19
Step 19 of 57

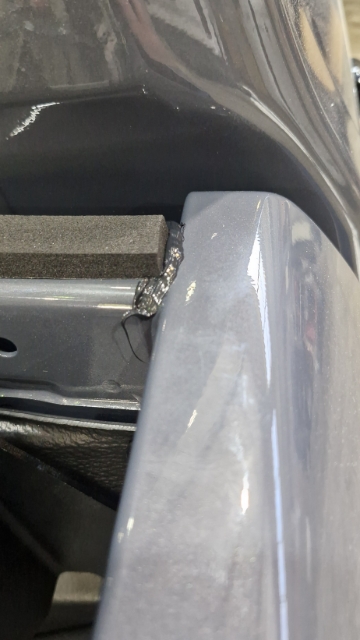

<p>Urethane both corners as shown.</p>

Urethane both corners as shown.

20
Step 20 of 57

Use D-type rubber (RS101034) on the side rails (CP106361/62) as shown. Ensure to tape prep with tape primer.

21
Step 21 of 57

Fit the side rails to the wellside. The rear holes will need to be countersunk to fit CSK bolts.

22
Step 22 of 57

Tighten the side rails to the rear brackets.

23
Step 23 of 57

Counter sink the front rail (CP106531) outer holes.

24
Step 24 of 57

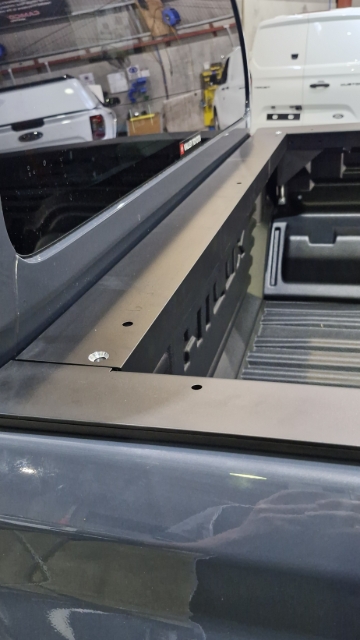

<p>Fit to the front of the wellside.</p>

Fit to the front of the wellside.

25
Step 25 of 57

Fit using CSK Bolts:

M8x25 Bolts

M8 Washers

M8 Nylocs

26
Step 26 of 57

Tighten to the front brackets.

27
Step 27 of 57

Tighten the side rails to the front bracket using:

M8x25 Bolts

M8 Washers

M8 Nylocs

28
Step 28 of 57

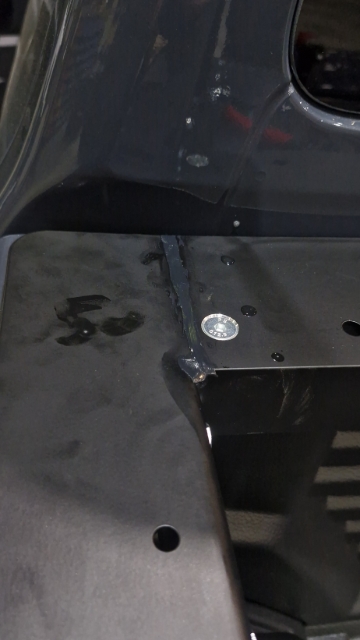

<p>Urethane the front of the fitting kits corners neatly.</p>

Urethane the front of the fitting kits corners neatly.

29
Step 29 of 57

Remove the bolts from the factory tailgate bracket.

30
Step 30 of 57

Using an M8 Heavy washer and an M8 flat washer in each groove where the bolts were prior.

31
Step 31 of 57

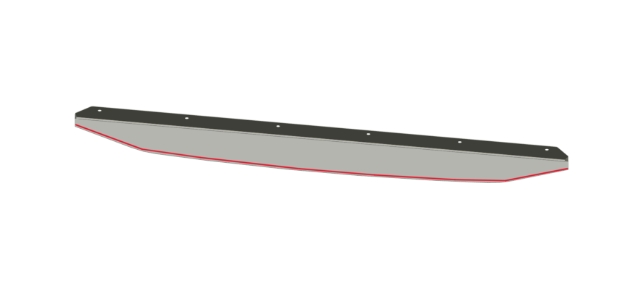

<p>Use double-sided tape on the tailgate bracket </p>

Use double-sided tape on the tailgate bracket

32
Step 32 of 57

Fit the new tailgate bracket over the existing bracket and secure it with the double-sided tape.

Tighten using the factory bolts.

33
Step 33 of 57

Position 40 mm × 4.8 mm foam tape (RS109360) along the bottom of the canopy. Use additional foam tape in the corners for enhanced sealing, and place protective padding underneath the canopy to avoid scratches while fitting.

34
Step 34 of 57

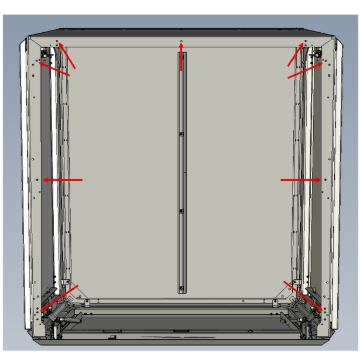

<p>Bolt positions for mounting the canopy to the fitting kit.</p>

Bolt positions for mounting the canopy to the fitting kit.

35
Step 35 of 57

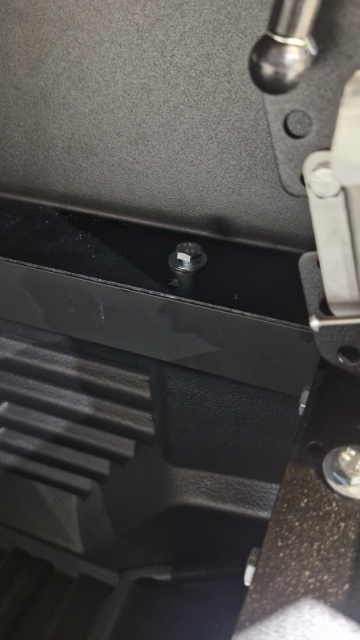

<p>Bolt to fitting kit</p>

Bolt to fitting kit

36
Step 36 of 57

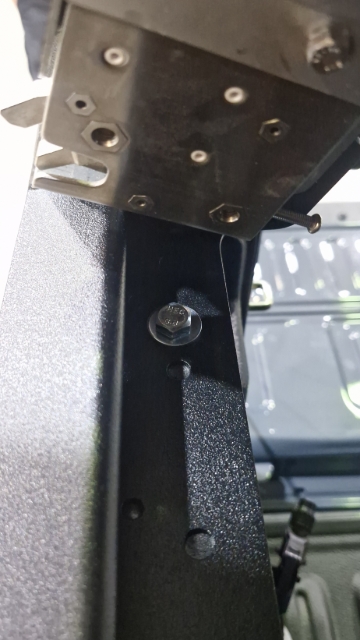

<p>Mount to fititng kit.</p>

Mount to fititng kit.

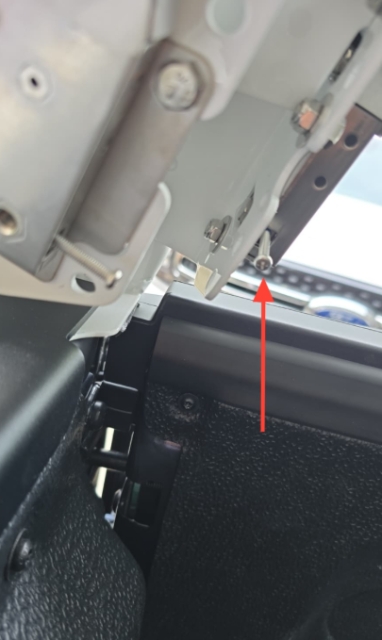

37
Step 37 of 57

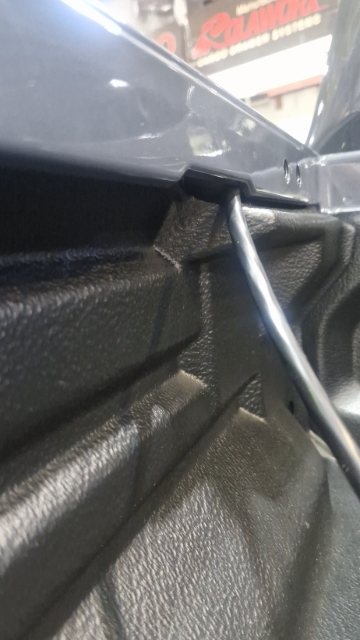

<p>Route the wiring up behind the liner and then down the wellside pulling it out the bottom.</p>

Route the wiring up behind the liner and then down the wellside pulling it out the bottom.

38
Step 38 of 57

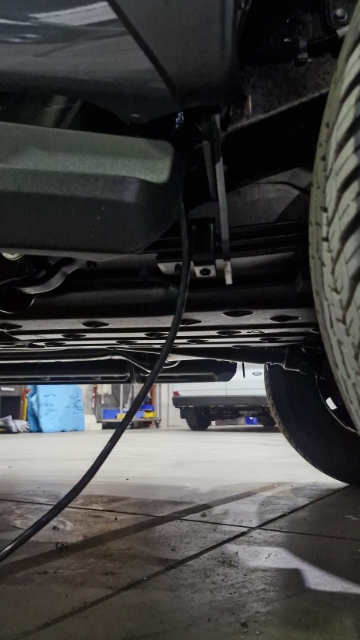

<p>Pull the loom down along the top of the chassis to prevent it from being ruined if it scraped on the ground.</p>

Pull the loom down along the top of the chassis to prevent it from being ruined if it scraped on the ground.

39
Step 39 of 57

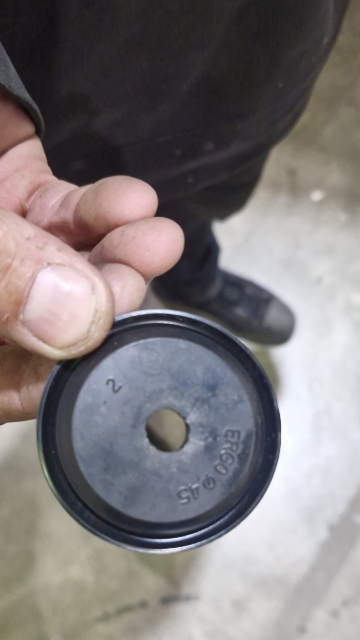

<p>Locate this grommet underneath the passenger side cab and punch a hole through it so the loom can pass through.</p>

Locate this grommet underneath the passenger side cab and punch a hole through it so the loom can pass through.

40
Step 40 of 57

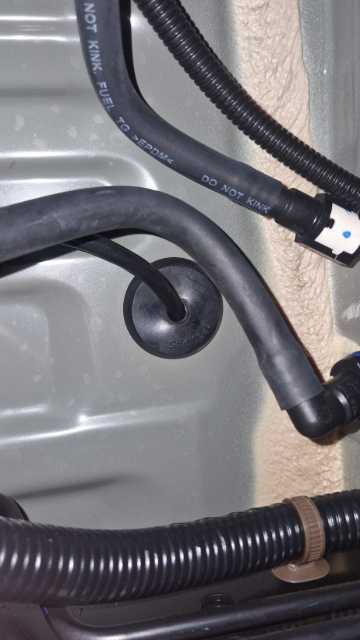

<p>Route the loom into the cab, putting the grommet into the original spot.</p>

Route the loom into the cab, putting the grommet into the original spot.

41
Step 41 of 57

Pull the loom out from underneath the matting in the rear of the cab.

42
Step 42 of 57

Feed it through the pillar from the back to the front of the cab.

43
Step 43 of 57

Pull all the way through and clip down as shown.

44
Step 44 of 57

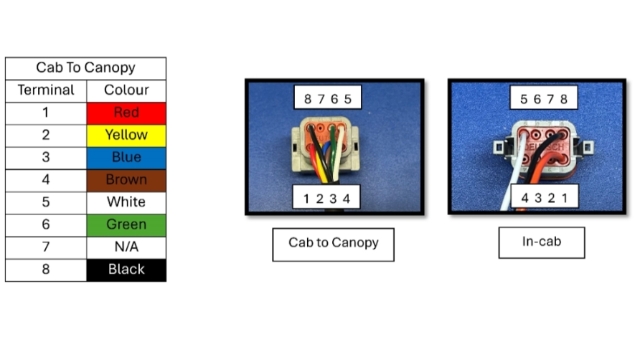

<p>Connect the loom to the Deutsch plug, and connect the correct colours as shown on this diagram.</p>

Connect the loom to the Deutsch plug, and connect the correct colours as shown on this diagram.

45
Step 45 of 57

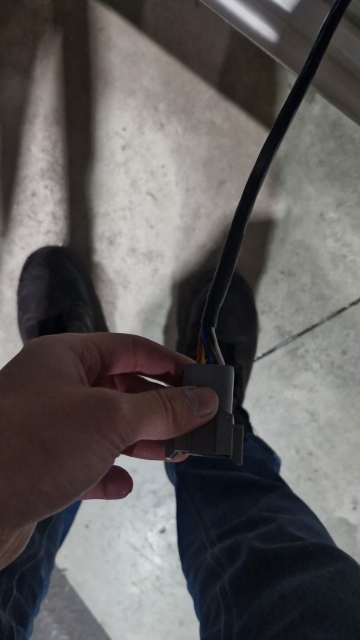

<p>Connected to the Deutch plug and ensure to use the green clip to prevent the wires from coming loose.</p>

Connected to the Deutch plug and ensure to use the green clip to prevent the wires from coming loose.

46
Step 46 of 57

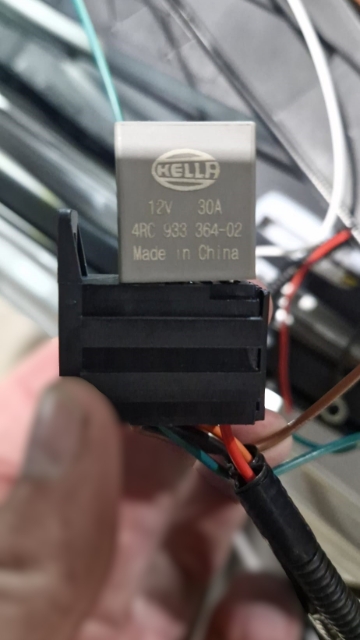

<p>Connect the relay to the relay holder. Ensure that none of the wires slip out.</p>

Connect the relay to the relay holder. Ensure that none of the wires slip out.

47
Step 47 of 57

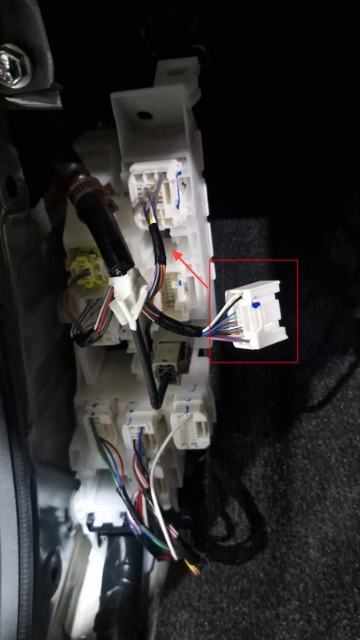

<p>Remove the plug from the spot shown. This is located behind the passenger kick panel.</p>

Remove the plug from the spot shown. This is located behind the passenger kick panel.

48
Step 48 of 57

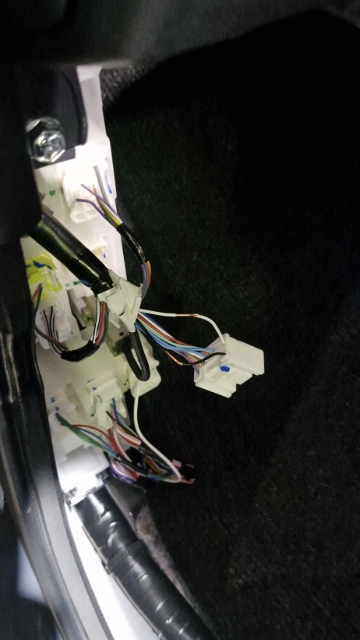

<p>Locate the solid black and white wires and strip 5 mm of instulation of them.</p>

Locate the solid black and white wires and strip 5 mm of instulation of them.

49
Step 49 of 57

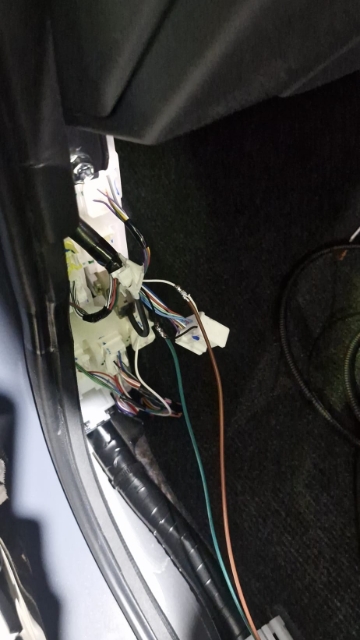

<p>From the incab loom, brown connects to white and green connects to black. Ensure to fully solder and then wrap with electrical tape.</p>

From the incab loom, brown connects to white and green connects to black. Ensure to fully solder and then wrap with electrical tape.

50
Step 50 of 57

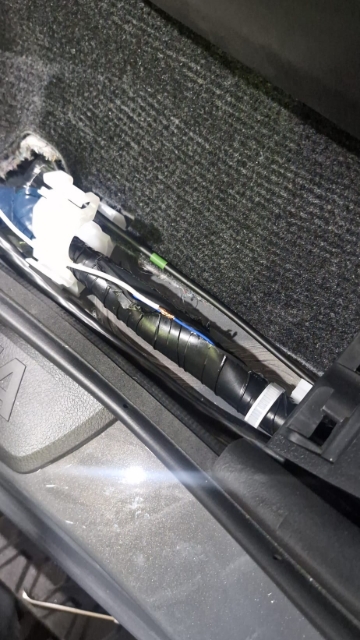

<p>Underneath the door sill on the passenger side, cut open the large loom and locate the thin blue wire; ensure it's not the larger blue wire. and connect to the white wire from the incab loom</p>

Underneath the door sill on the passenger side, cut open the large loom and locate the thin blue wire; ensure it's not the larger blue wire. and connect to the white wire from the incab loom

51
Step 51 of 57

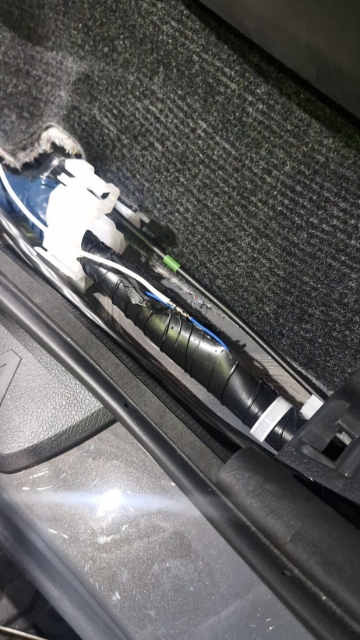

<p>Ensure to solder and tape.</p>

Ensure to solder and tape.

52
Step 52 of 57

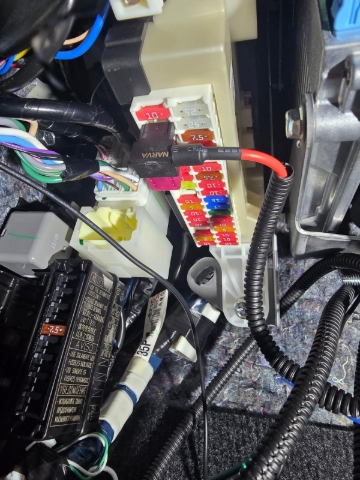

<p>Locate the fuse box underneath. Use the next step to find which fuse spot to use.</p>

Locate the fuse box underneath. Use the next step to find which fuse spot to use.

53
Step 53 of 57

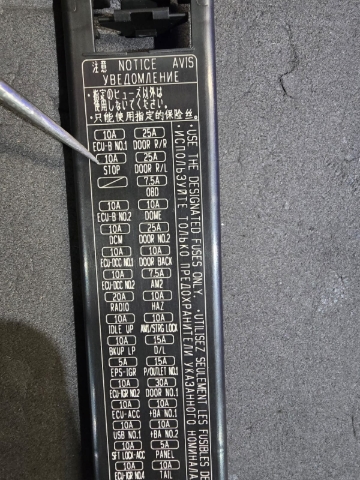

<p>Where to insert the fuse blade holder.</p>

Where to insert the fuse blade holder.

54
Step 54 of 57

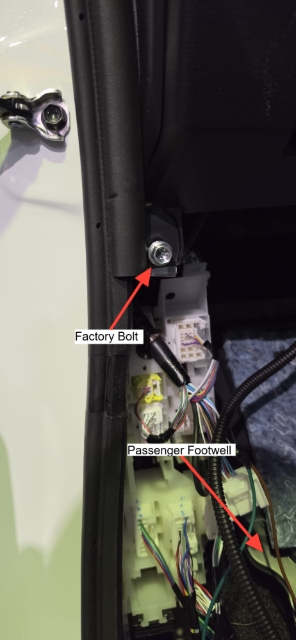

<p>Remove the factory bolt from the passenger side above the wiring block.</p>

Remove the factory bolt from the passenger side above the wiring block.

55
Step 55 of 57

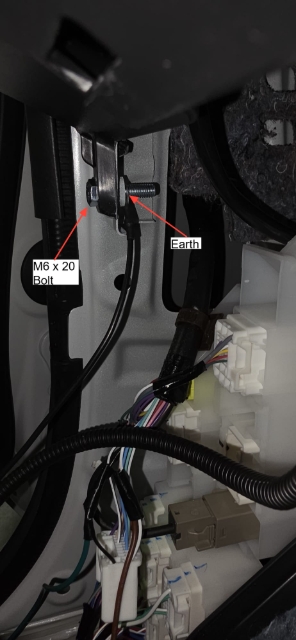

<p>Once the factory bolt has been removed sand the rear to remove paint.</p><p>Using an M6 x 20, fit it where the original factory bolt was and place the earth on as shown.</p>

Once the factory bolt has been removed sand the rear to remove paint.

Using an M6 x 20, fit it where the original factory bolt was and place the earth on as shown.

56
Step 56 of 57

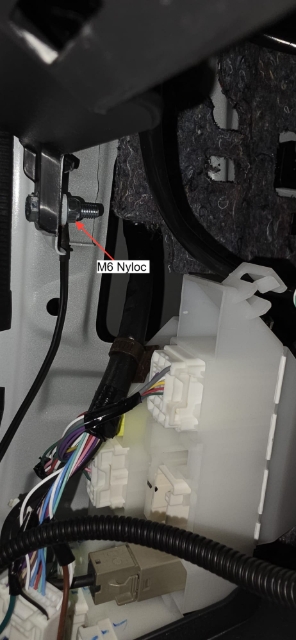

<p>Fit an M6 Nyloc nut to the M6 x 20 bolt and tighten.</p>

Fit an M6 Nyloc nut to the M6 x 20 bolt and tighten.

57
Step 57 of 57
<p>Please fill out the hard copy QA sheet included with the product you got.</p><p>Once filled out, please send it back to</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>&nbsp;</p><p>If the hard copy does not arrive, please contact us.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>

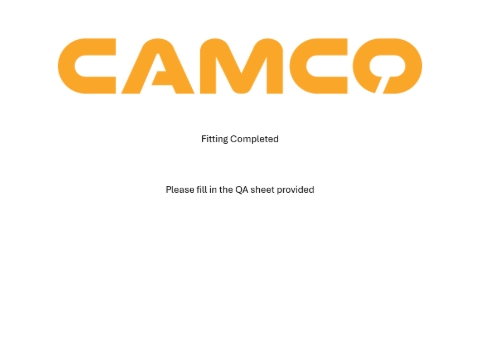

Please fill out the hard copy QA sheet included with the product you got.

Once filled out, please send it back to

charl@camcoindustries.co.nz



If the hard copy does not arrive, please contact us.

charl@camcoindustries.co.nz

0800 663 500
