How To - Label Gas Bottles
How to properly label gas bottles
How to properly label gas bottles
1
Step 1 of 3
<p><strong>45kg Gas Bottle</strong></p><ul><li><p>Gas &amp; Tyre sticker goes opposite the valve (when cylinder is connected, sticker is facing outwards)</p></li><li><p>Place 200mm below top weld line, centered and straight</p></li><li><p>Red diamond goes 100mm below Gas &amp; Tyre sticker</p></li></ul><p></p>

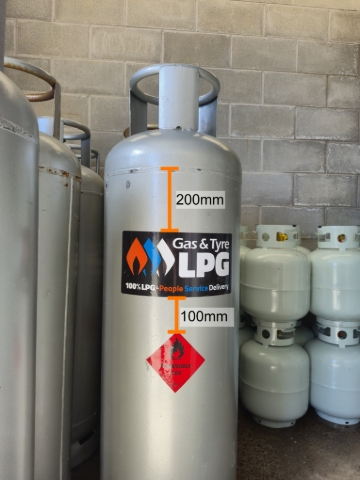

45kg Gas Bottle

  • Gas & Tyre sticker goes opposite the valve (when cylinder is connected, sticker is facing outwards)

  • Place 200mm below top weld line, centered and straight

  • Red diamond goes 100mm below Gas & Tyre sticker

2
Step 2 of 3
<p><strong>9kg Gas Bottle</strong></p><ul><li><p>Gas &amp; Tyre 9kg sticker has the red diamond included</p></li><li><p>Sticker is placed on the same side as the valve opening</p></li><li><p>Place sticker above the weld line of cylinder, centered and straight</p></li></ul><p></p>

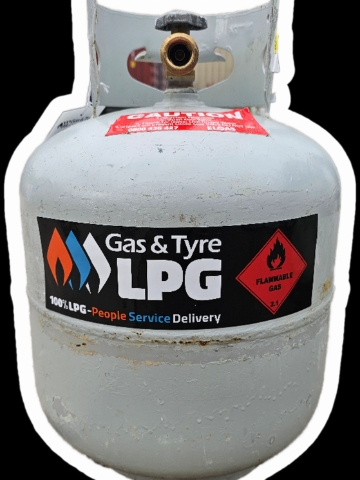

9kg Gas Bottle

  • Gas & Tyre 9kg sticker has the red diamond included

  • Sticker is placed on the same side as the valve opening

  • Place sticker above the weld line of cylinder, centered and straight

3
Step 3 of 3

Thank you for viewing these instructions on how to label gas bottles. You should now have a greater understanding on this topic.
