Romove the Cell plate

I'm going to take it out.

I'm going to take it out.

1

Step 1 of 5

Preparing Makum Filler for Steam Cleaning.

2

Step 2 of 5

Positioning the cell plates

Close all the doors.
Reset the open-door era.
Press "Machine Cleaning Mode" and select "Manual."
Press STOP when the cell plate reaches the correct position.

3

Step 3 of 5

Remove Cell Plates

Remove the Cell plate lock "Make sure process with Extra care".
placed the pins in a secured place (Tray)

repeating the process till remove all the cell plates are removed.

4

Step 4 of 5

Removed the unlock cell plate and placed the cell plates in the Makum trolley.

5

Step 5 of 5

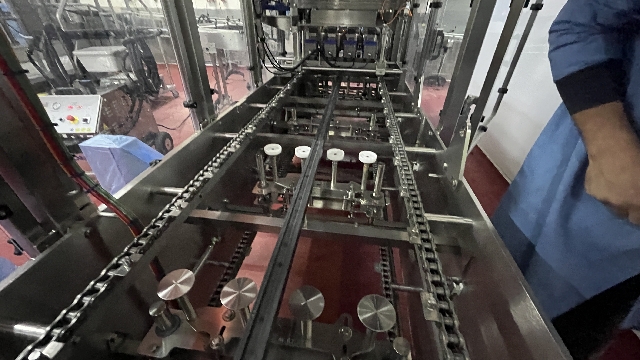

<p>Repeate the Above process till remove all the cellplaces </p>

Repeate the Above process till remove all the cellplaces
