Water short
What to do if the dairy is short on water
What to do if the dairy is short on water
1
Step 1 of 7

Check the pump in chemical shed is on and hasn’t tripped out

2
Step 2 of 7

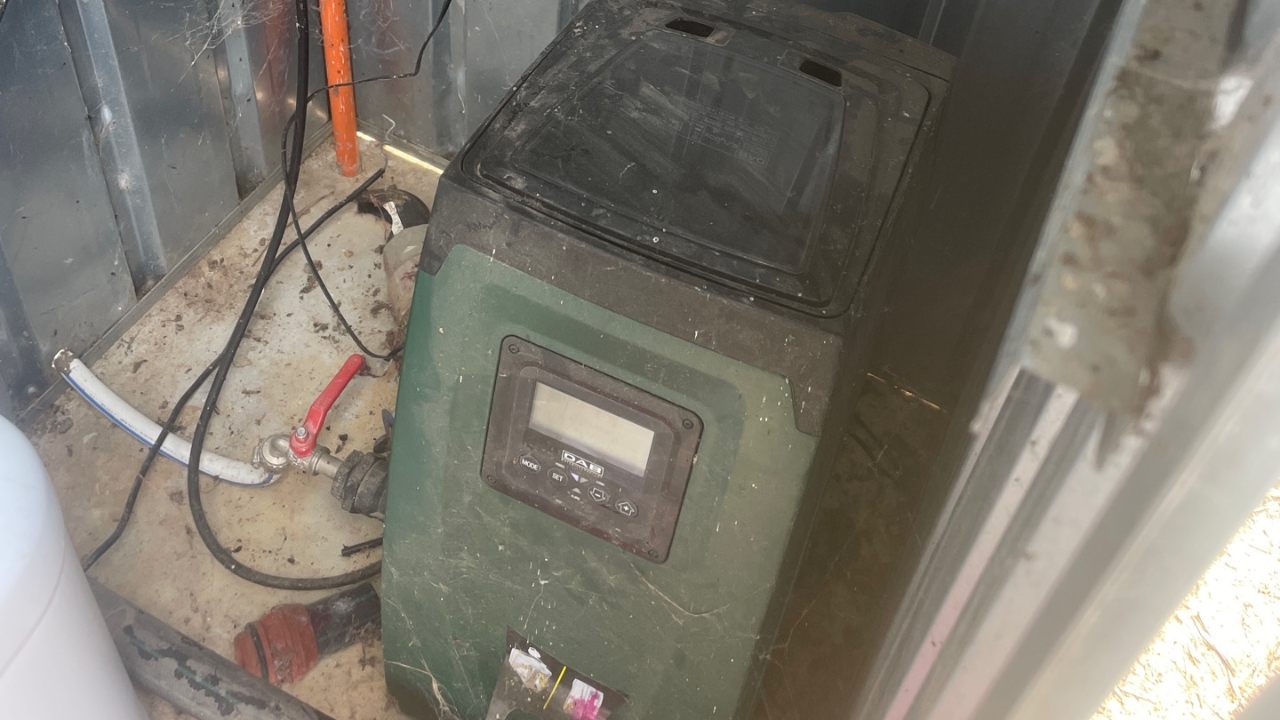

The green boar pump runs water to the milking machine and robots vat ect

3
Step 3 of 7

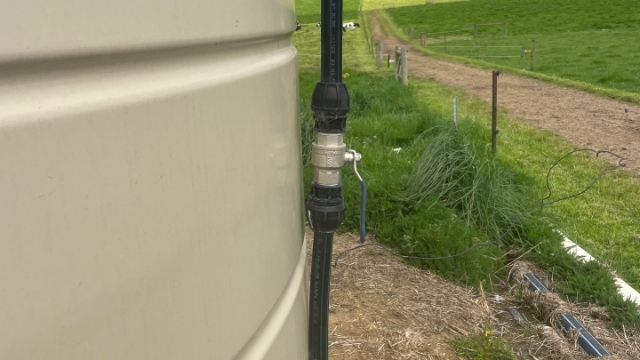

<p>Boar water infolw valve</p>

Boar water infolw valve

4
Step 4 of 7

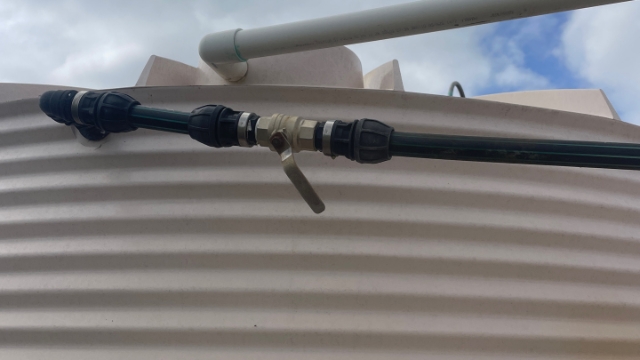

<p>tanks closer to feed pad are dam filled</p>

tanks closer to feed pad are dam filled

5
Step 5 of 7

Middle tank is fire water storage incase of emergency

6
Step 6 of 7

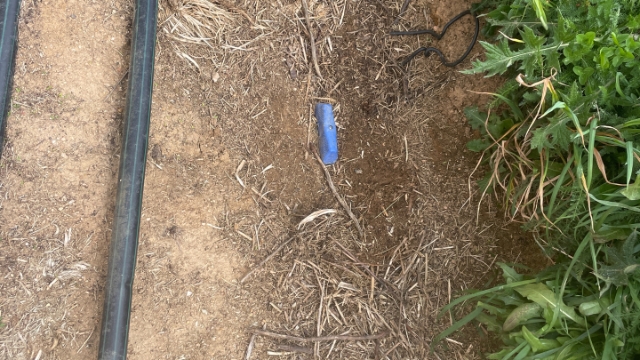

<p>Blue tap behind middle tank isolates water to B&amp;C areas</p>

Blue tap behind middle tank isolates water to B&C areas

7
Step 7 of 7

This one needs to be turned off to isolated water to B & C areas
