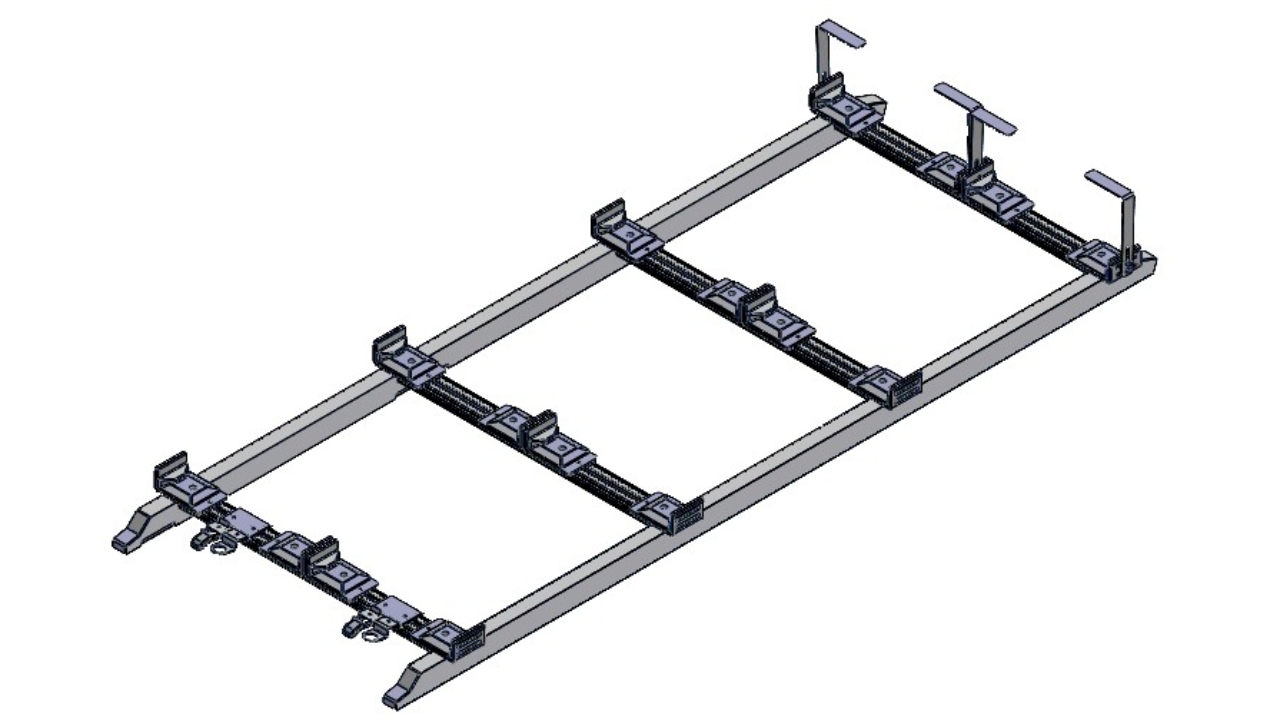

Adjusting Ladder Hoops

To lower the ladder hoops, loosen nuts on the side of the mounting points using a 13mm socket/spanner and move ladder hoop to the desired location.

Note these do not need loosening all the way. Only enough to move the hoop.

Tighten nuts once happy with hoop location.

Adjusting Wear Pads

To move the ladder rack wear pads, slighly loosen bolts from the top of the mounting point using a 4mm Allan key and move slider to the desired location.

Note these do not need loosening all the way. Only enough to move the pad.

Tighten bolts once happy with new wear pad position.
