OnCell G4302 Ethernet WAN Priority Configuration

Knowby to show how to configure the OnCell G4302 to have an Ethernet interface be the primary WAN interface.

Knowby to show how to configure the OnCell G4302 to have an Ethernet interface be the primary WAN interface.

1

Step 1 of 9

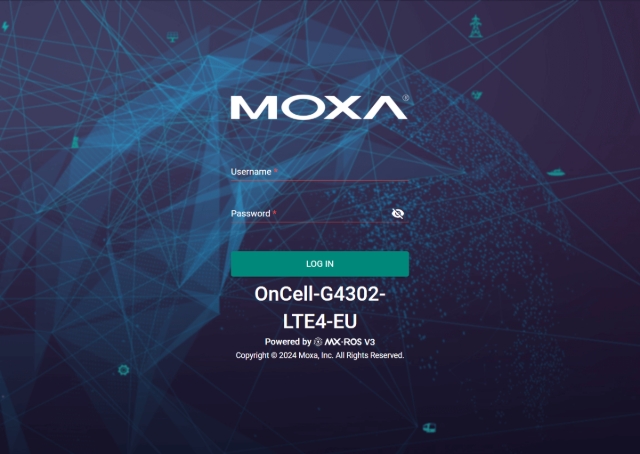

<p>Navigate to OnCell G4302 webgui page. <br><br>192.168.127.254 by default.</p>

Navigate to OnCell G4302 webgui page.

192.168.127.254 by default.

2

Step 2 of 9

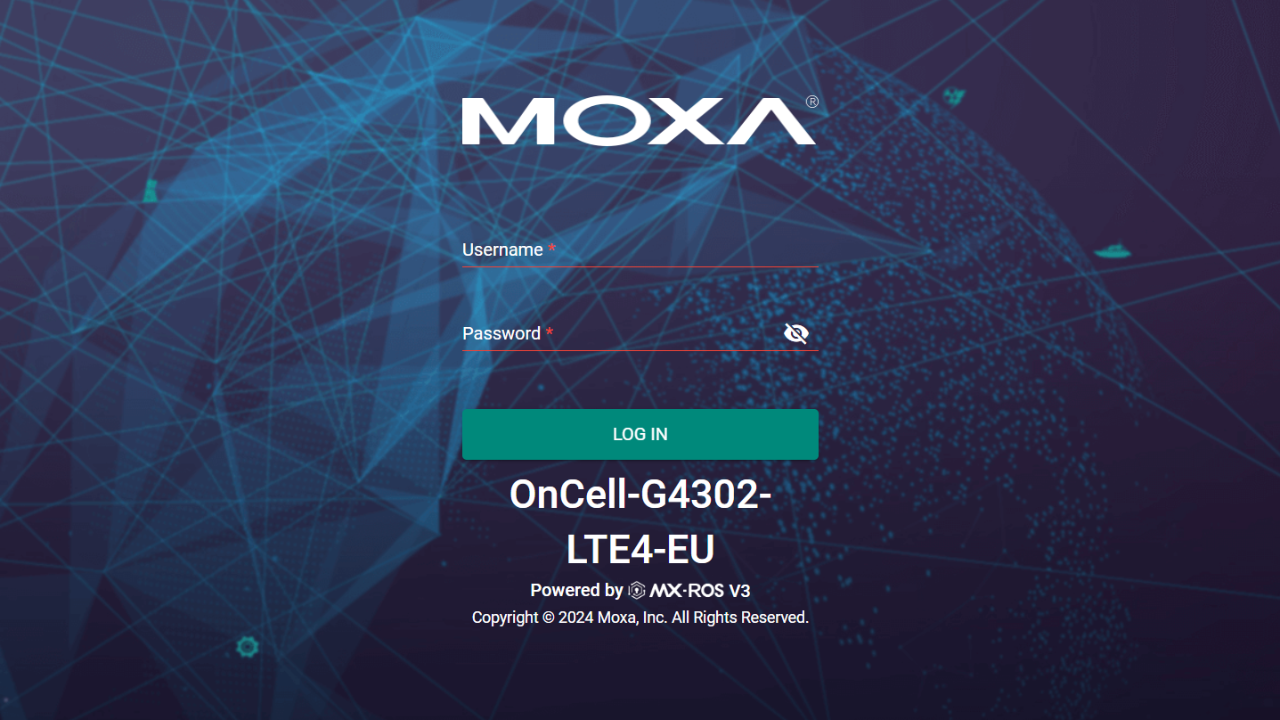

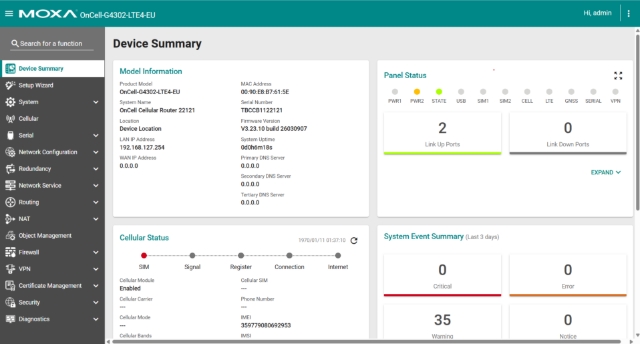

Login using the default username and password;

admin//moxa

If prompted, create a new password.

Login using the default username and password; admin//moxa If prompted, create a new password.

3

Step 3 of 9

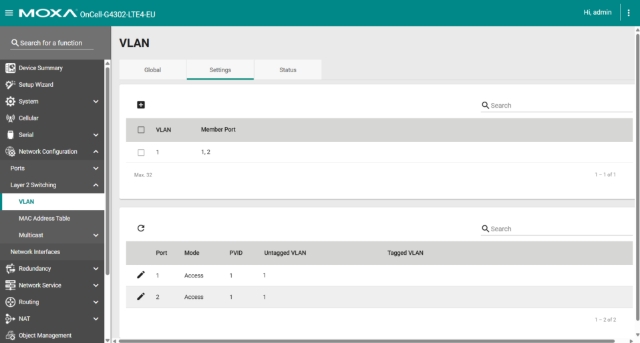

<p>Navigate to Network Configuration -> Layer 2 Switching -> VLAN -> Settings.</p>

Navigate to Network Configuration -> Layer 2 Switching -> VLAN -> Settings.

4

Step 4 of 9

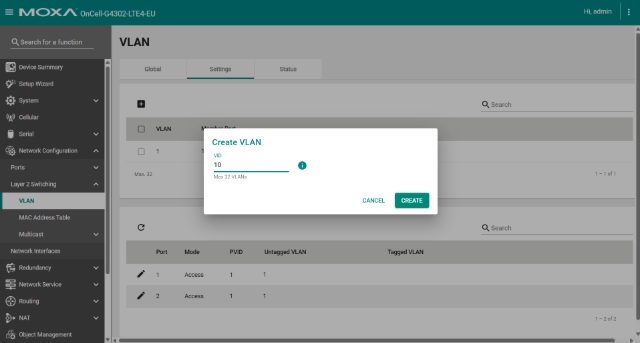

<p>Press the + and create a VLAN to be assigned to the ethernet WAN interface.</p>

Press the + and create a VLAN to be assigned to the ethernet WAN interface.

5

Step 5 of 9

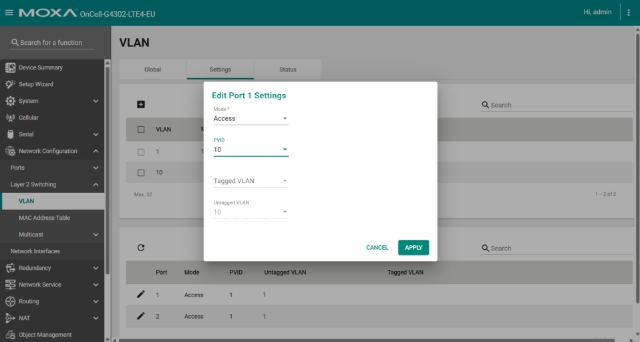

<p>Assign the newly created VLAN to Port 1.</p>

Assign the newly created VLAN to Port 1.

6

Step 6 of 9

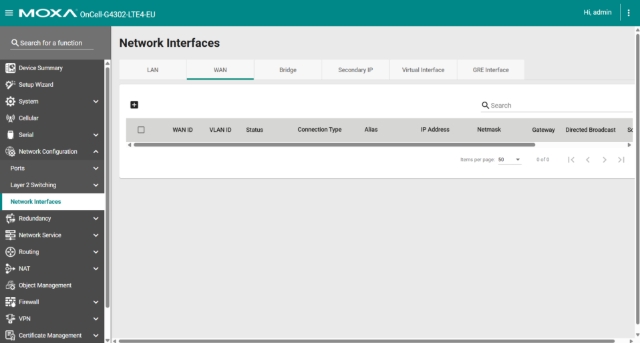

<p>Navigate to Network Configuration -> Network Interfaces -> WAN.</p>

Navigate to Network Configuration -> Network Interfaces -> WAN.

7

Step 7 of 9

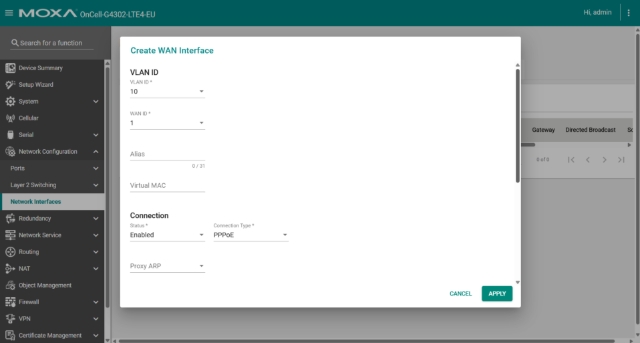

<p>Press the + and create a new WAN interface.<br><br>Assign the VLAN ID as the previously created VLAN and the Connection Type as PPPoE.</p>

Press the + and create a new WAN interface.

Assign the VLAN ID as the previously created VLAN and the Connection Type as PPPoE.

8

Step 8 of 9

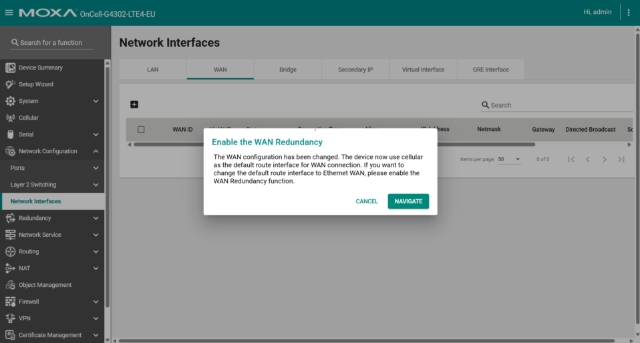

<p>When the WAN interface has been created a prompt to configure WAN redundancy will be shown. Follow the navigation to this WAN redundancy configuration page.</p>

When the WAN interface has been created a prompt to configure WAN redundancy will be shown. Follow the navigation to this WAN redundancy configuration page.

9

Step 9 of 9

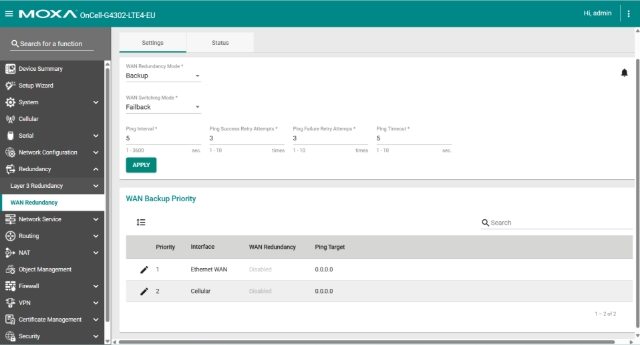

<p>Configure the WAN redundancy so that the Ethernet WAN option is the first priority interface, the WAN Switching Mode is in "Fallback" mode, and the WAN Redundancy Mode is in "Backup" mode.</p>

Configure the WAN redundancy so that the Ethernet WAN option is the first priority interface, the WAN Switching Mode is in "Fallback" mode, and the WAN Redundancy Mode is in "Backup" mode.
