xMounts, Correct Positions: RAM 1500, "DS", 5'7" Tub
1
Step 1 of 5

We use only 4 x Mounts on this vehicle, not the normal 6.

2
Step 2 of 5

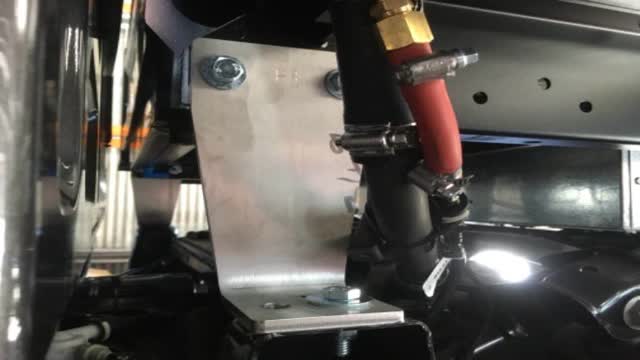

<p>&quot;R3&quot;</p> <p>Front Mount, Passenger side. Note the chassis bolt is through the back hole in mount</p>

"R3"

Front Mount, Passenger side. Note the chassis bolt is through the back hole in mount

3
Step 3 of 5

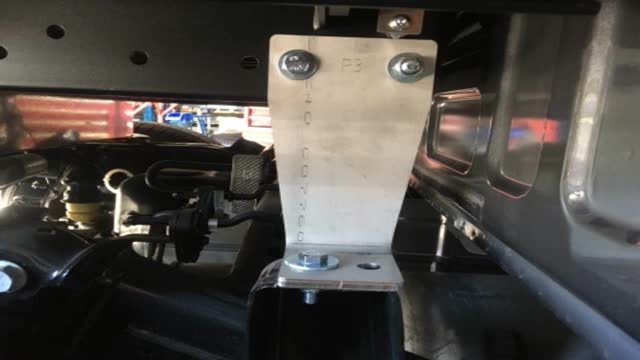

<p>&quot;R3&quot;</p> <p>Front Mount, Drivers side. Note the chassis bolt is through the back hole in mount</p>

"R3"

Front Mount, Drivers side. Note the chassis bolt is through the back hole in mount

4
Step 4 of 5

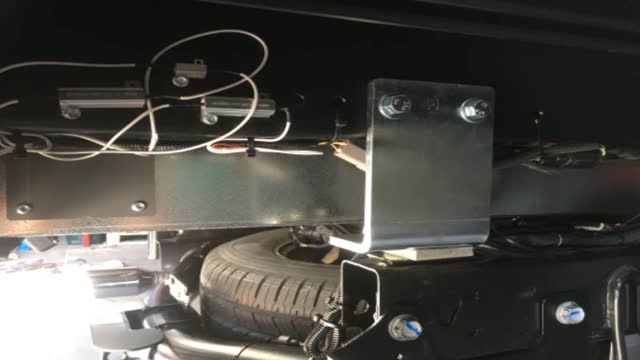

<p>Rear Mount</p> <p>&quot;W&quot; with a 16mm packer (as shown).</p>

Rear Mount

"W" with a 16mm packer (as shown).

5
Step 5 of 5

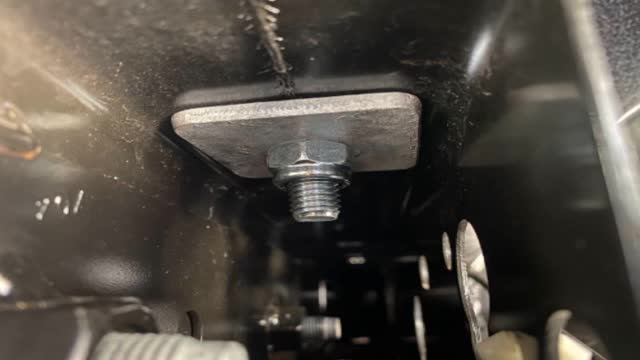

<p>Use the supplied 5mm square washer on the inside of vehicle chassis rail. On rear mounts</p> <p>Both rear mounts will look like this when complete (viewed from inside vehicles chassis rail)</p>

Use the supplied 5mm square washer on the inside of vehicle chassis rail. On rear mounts

Both rear mounts will look like this when complete (viewed from inside vehicles chassis rail)
