PM Eleven - Digitial Twin for SAP Maintenance Plans
PM Eleven have created a Solution inside SAP which provides "shadow" maintenance plans for equipment. Maintenance Plan Optimisation.
PM Eleven have created a Solution inside SAP which provides "shadow" maintenance plans for equipment. Maintenance Plan Optimisation.
1
Step 1 of 7Embedded inside SAP, we have created the Maintenance Plan Optimisation Solution (SAP Maintenance Plans on steriods!)
2
Step 2 of 7
For this Truck TRO108 - we start with 3 related packages of work
3
Step 3 of 7

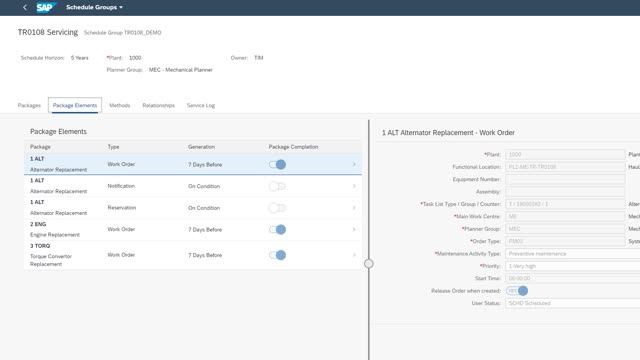

The related packages of work have elements which can trigger a Work Order, a Notification or a Reservation for materials....at any time. Alternatively, we can have this Schedule Group (Maintenance Plan) not create a real Work Order at all.
4
Step 4 of 7
This plan only has 1 method to calculate the Service Schedule, but it could have multiple!
5
Step 5 of 7

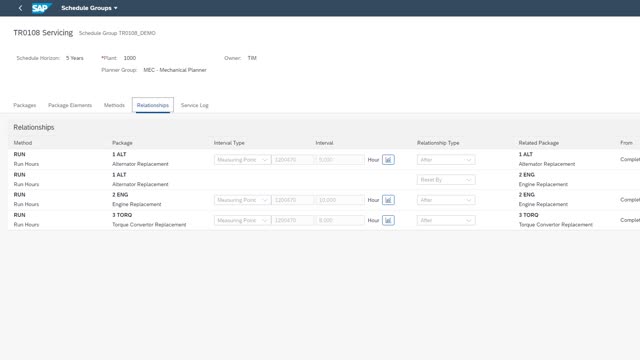

With a method of Run Hours:
- the Alternator is replaced at 5000 hours, and recurs upon itself.
- the alternator service schedule is RESET if the Engine is replaced
- the engine is replaced at 10000 hours and recurs upon itself
- the Torque Converter is replacd at 8000 hours and recurs upon itself.
6
Step 6 of 7

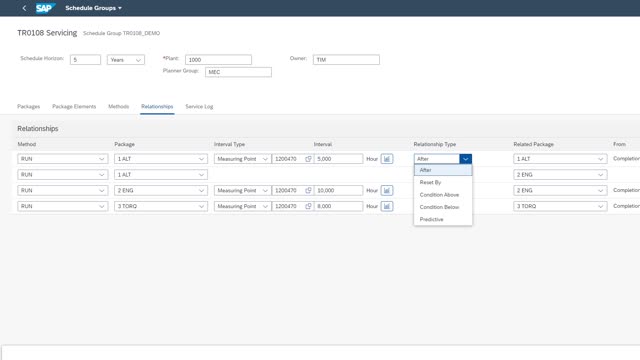

Alternatively you could use MACHINE LEARNT Predictive relationships!
7
Step 7 of 7

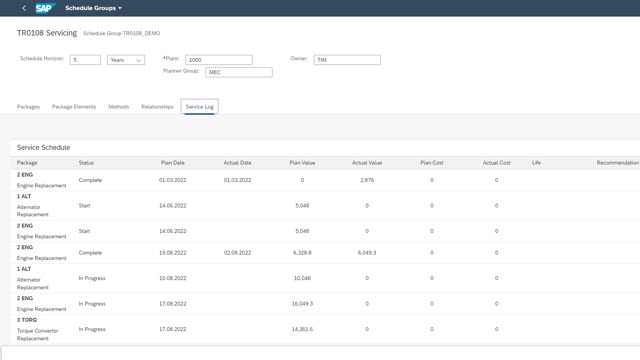

In the end, you can see "Completed" Work Orders, "In Progress" Work Orders and "Planned" Work Orders
