Mounts Layout: Next-Gen Ranger X-Cab

1

Step 1 of 4

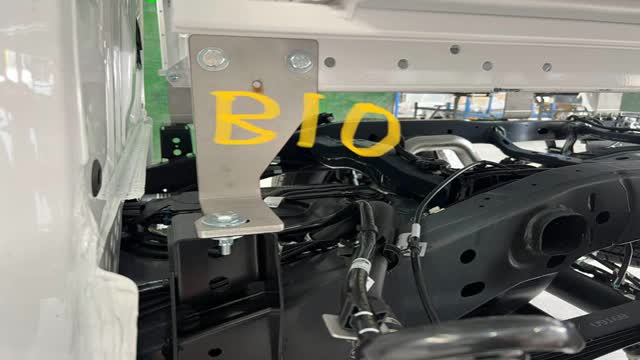

<p><strong>Front Mount, Passenger Side</strong></p>
<ul>
<li>Laser etched with "B10", pass side front</li>
<li>In front holes</li>
</ul>

Front Mount, Passenger Side

Laser etched with "B10", pass side front
In front holes

2

Step 2 of 4

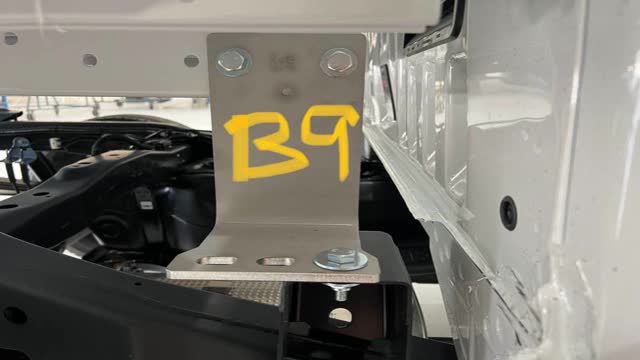

<p>**Front Mount, Drivers Side"
Laser etched with "B9"</p>
<ul>
<li>In front holes</li>
</ul>

**Front Mount, Drivers Side" Laser etched with "B9"

In front holes

3

Step 3 of 4

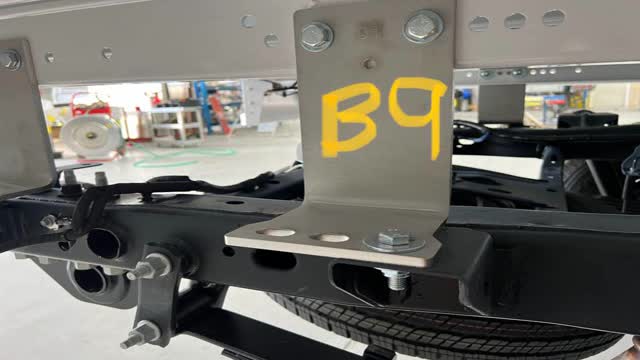

<p><strong>Middle Mounts</strong></p>
<ul>
<li>Laser etched with "B9", middle mounts</li>
<li>1190mm front front of mount to front of this mount</li>
</ul>

Middle Mounts

Laser etched with "B9", middle mounts
1190mm front front of mount to front of this mount

4

Step 4 of 4

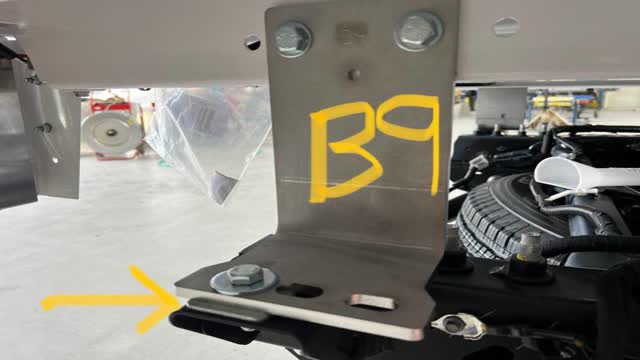

<p><strong>Rear Mounts</strong></p>
<ul>
<li>Laser etched with "B9", middle mounts with a 5mm PACKER for BOTH sides</li>
<li>1622mm front front of mount to front of mount</li>
</ul>

Rear Mounts

Laser etched with "B9", middle mounts with a 5mm PACKER for BOTH sides
1622mm front front of mount to front of mount
