Daily SWI Folder Calibration Checks
Daily 4-angle Calibration checks
Daily 4-angle Calibration checks
1
Step 1 of 8

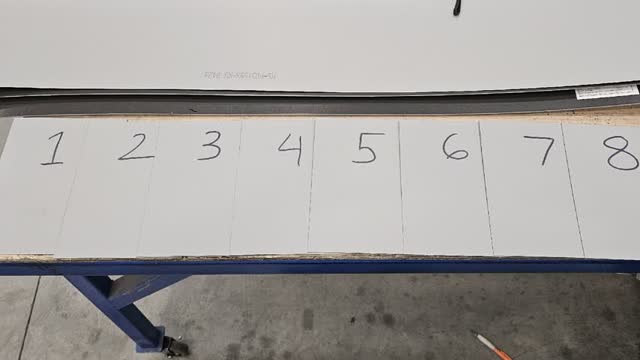

<p>Label Calibration samples 1-8 to correspond with Folder arms.</p>

Label Calibration samples 1-8 to correspond with Folder arms.

2
Step 2 of 8

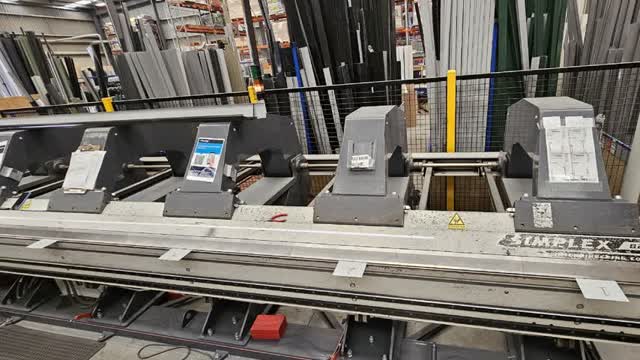

<p>Place Calibration samples under each arm on folder.</p>

Place Calibration samples under each arm on folder.

3
Step 3 of 8

Fold to 90°.

4
Step 4 of 8

Repeat Step 3 for 45°, 125° and 135° angles.

5
Step 5 of 8

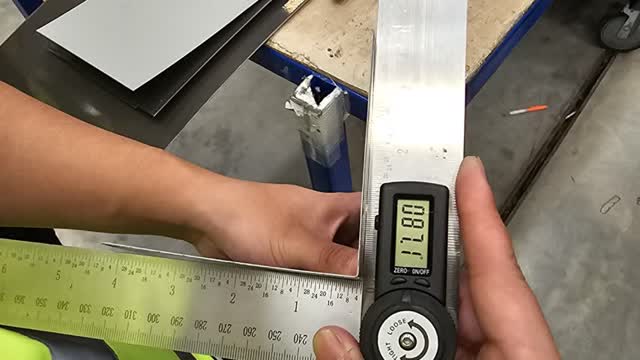

<p>Remove steel samples from folder and check angle using electronic protractor.</p>

Remove steel samples from folder and check angle using electronic protractor.

6
Step 6 of 8

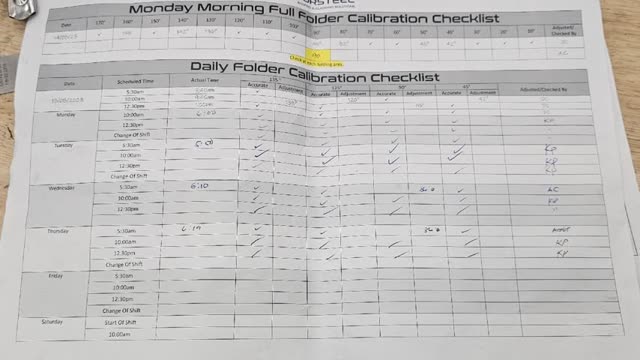

<p>Record angles on Calibration checklist.</p>

Record angles on Calibration checklist.

7
Step 7 of 8

If result is more than 1° out of expected angle, adjust settings on SWI screen.

8
Step 8 of 8

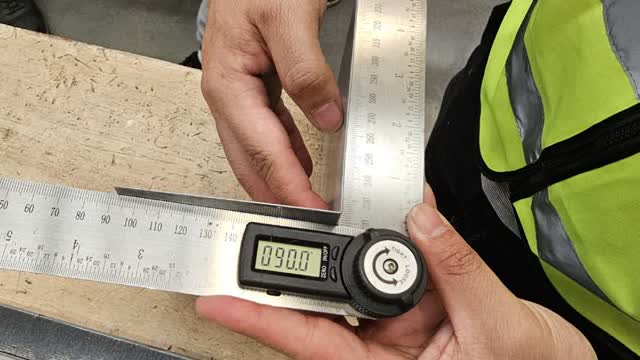

<p>Recheck angles after settings have been changed, ensure within 1° tolerance.</p>

Recheck angles after settings have been changed, ensure within 1° tolerance.
