CHASSIS MOUNTS, HILUX SC
1
Step 1 of 15
2
Step 2 of 15

Contents List (Click to view)

​STEP 3: Components List​

​STEP 8: Tools List​

​STEP 9: Torque Values​

​STEP 10: Hole Diagram​

​STEP 11: Chassis Mounts​

​STEP 15: QA Sheet​

3
Step 3 of 15

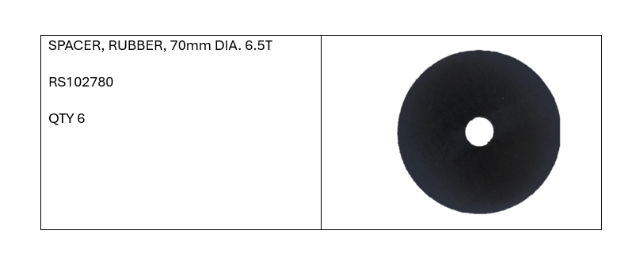

<p>Components List</p>

Components List

4
Step 4 of 15

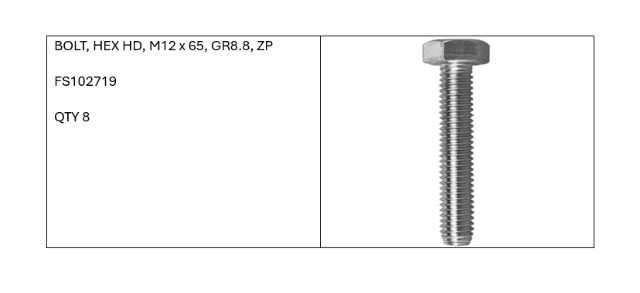

<p>Components List</p>

Components List

5
Step 5 of 15

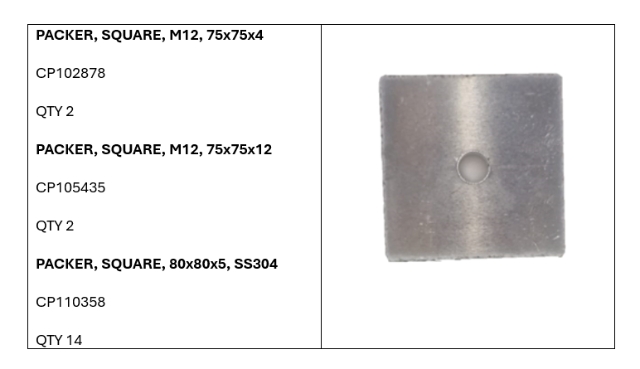

<p>Components List</p>

Components List

6
Step 6 of 15
<p>Components List</p>

Components List

7
Step 7 of 15
<p>Components List</p>

Components List

8
Step 8 of 15

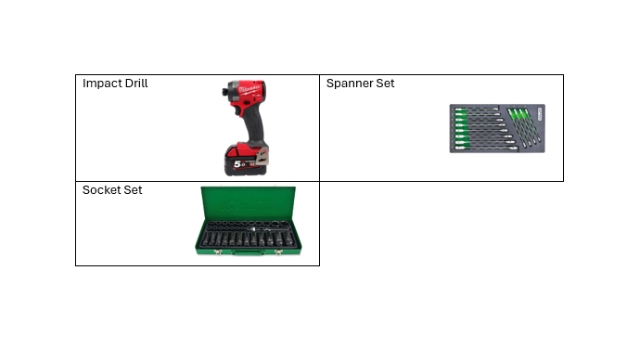

<p>Tools List</p>

Tools List

9
Step 9 of 15
<p>Torque Values</p>

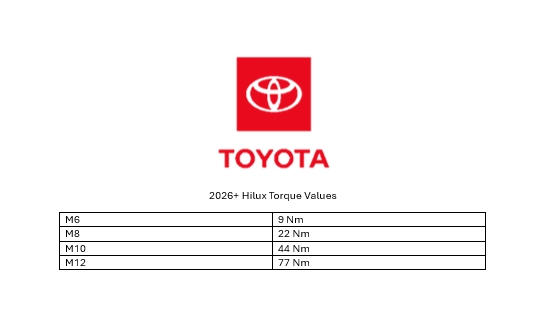

Torque Values

10
Step 10 of 15

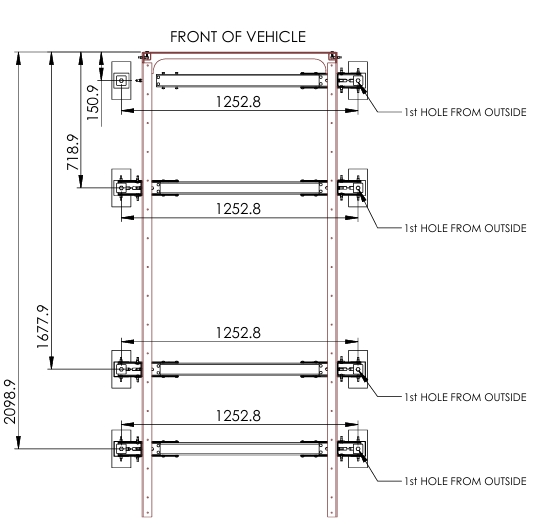

<p>Diagram For Hole Position.</p>

Diagram For Hole Position.

11
Step 11 of 15

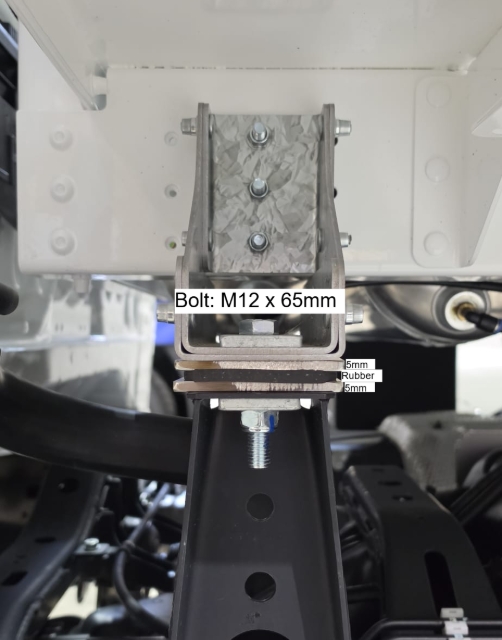

<p>Toyota Hilux SC Front</p><p>Distance to the front of the chassis: 150.9mm</p><p>Bolt Hole: 1st Hole from outside.</p>

Toyota Hilux SC Front

Distance to the front of the chassis: 150.9mm

Bolt Hole: 1st Hole from outside.

12
Step 12 of 15
<p>Toyota Hilux SC Second</p><p>Distance to the front of chassis: 718.9</p><p>Bolt Hole: First hole from outside.</p>

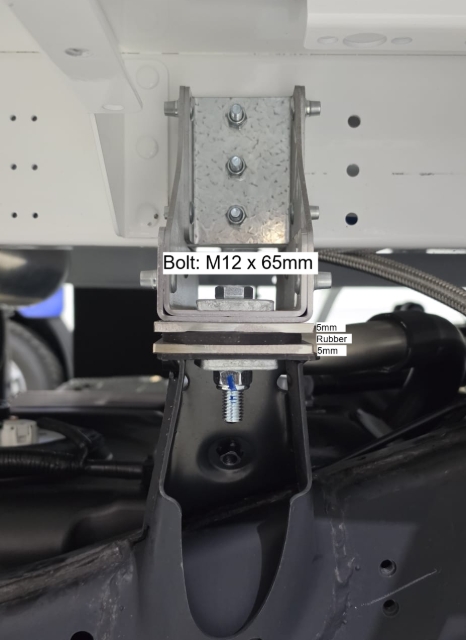

Toyota Hilux SC Second

Distance to the front of chassis: 718.9

Bolt Hole: First hole from outside.

13
Step 13 of 15
<p>Toyota Hilux SC Third</p><p>Distance to the front of chassis: 1677.9mm</p><p>Bolt hole: First hole from outside</p><p></p>

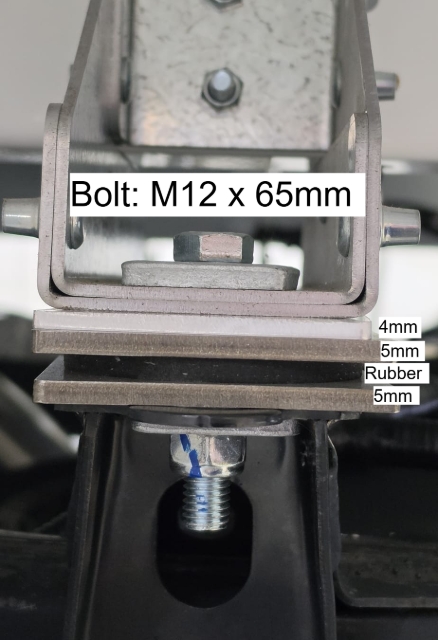

Toyota Hilux SC Third

Distance to the front of chassis: 1677.9mm

Bolt hole: First hole from outside

14
Step 14 of 15

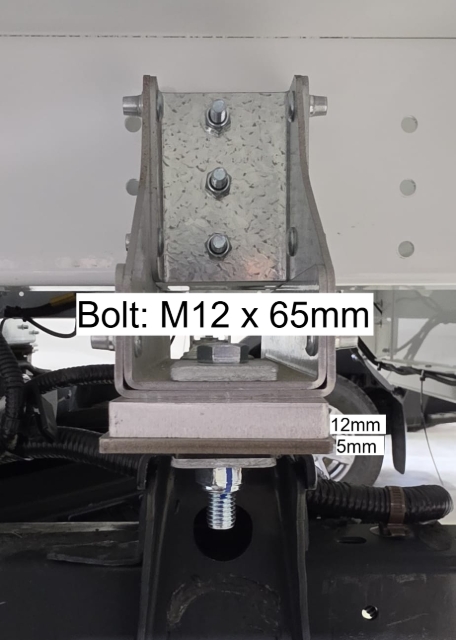

<p>Toyota Hilux SC Back</p><p>Distance to the front of chassis: 2098.9</p><p>Bolt Hole: First hole from outside</p><p></p>

Toyota Hilux SC Back

Distance to the front of chassis: 2098.9

Bolt Hole: First hole from outside

15
Step 15 of 15
<p>Please fill out the hard copy QA sheet included with the product you got.</p><p>Once filled out, please send it back to</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>If you have issues with instructions and need assistance, please contact.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:roman@camcoindustries.co.nz">roman@camcoindustries.co.nz</a></p><p>+64 21 349 001</p><p>&nbsp;</p><p>If the hard copy does not arrive, please contact us.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>

Please fill out the hard copy QA sheet included with the product you got.

Once filled out, please send it back to

charl@camcoindustries.co.nz

If you have issues with instructions and need assistance, please contact.

roman@camcoindustries.co.nz

+64 21 349 001



If the hard copy does not arrive, please contact us.

charl@camcoindustries.co.nz

0800 663 500
