Mounts Layout: Silverado 1500, MY22+

Knowby

Mounts Layout: Silverado 1500, MY22+

1

Step 1 of 4

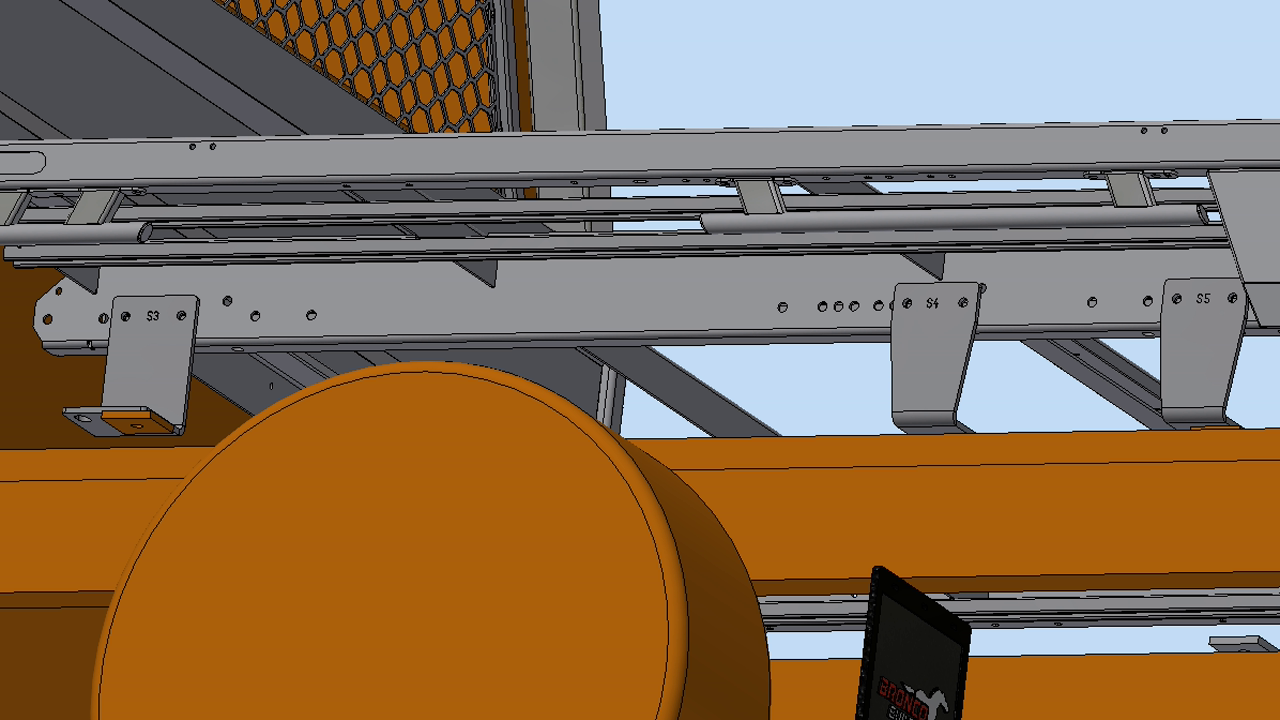

The mounts should look like this

2

Step 2 of 4

<p><strong>Front Mounts</strong></p>
<ul>
<li>Laser Etched "S3"</li>
<li>115mm from front of chassis rail, to front of mount</li>
</ul>

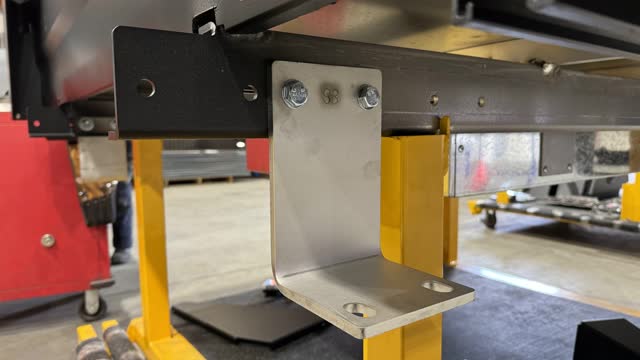

Front Mounts

Laser Etched "S3"
115mm from front of chassis rail, to front of mount

3

Step 3 of 4

<p><strong>Second Mounts</strong></p>
<ul>
<li>Laser Etched "S4"</li>
<li>1235mm from front of chassis rail, to front of mount</li>
</ul>

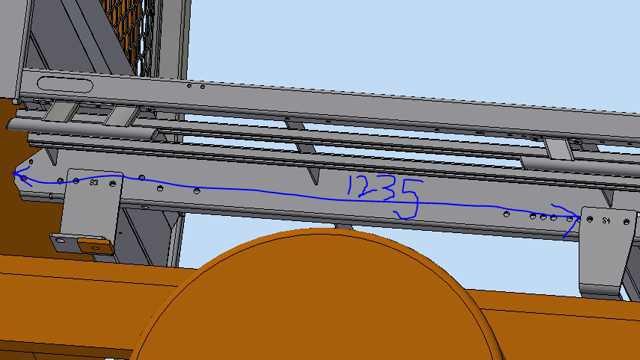

Second Mounts

Laser Etched "S4"
1235mm from front of chassis rail, to front of mount

4

Step 4 of 4

<p><strong>Third Mounts</strong></p>
<ul>
<li>Laser Etched "S5"</li>
<li>1621mm from front of chassis rail, to front of mount</li>
</ul>

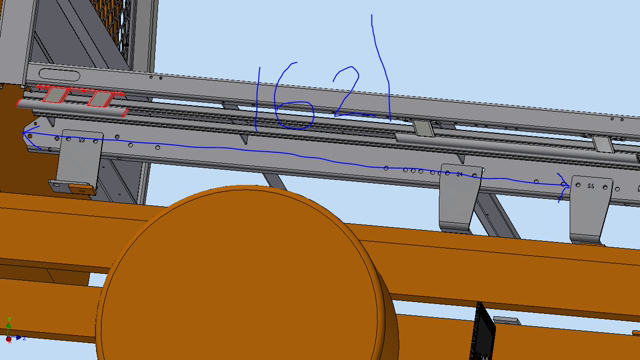

Third Mounts

Laser Etched "S5"
1621mm from front of chassis rail, to front of mount
