Correct Mounts Layout: Hilux, Single Cab

1

Step 1 of 5

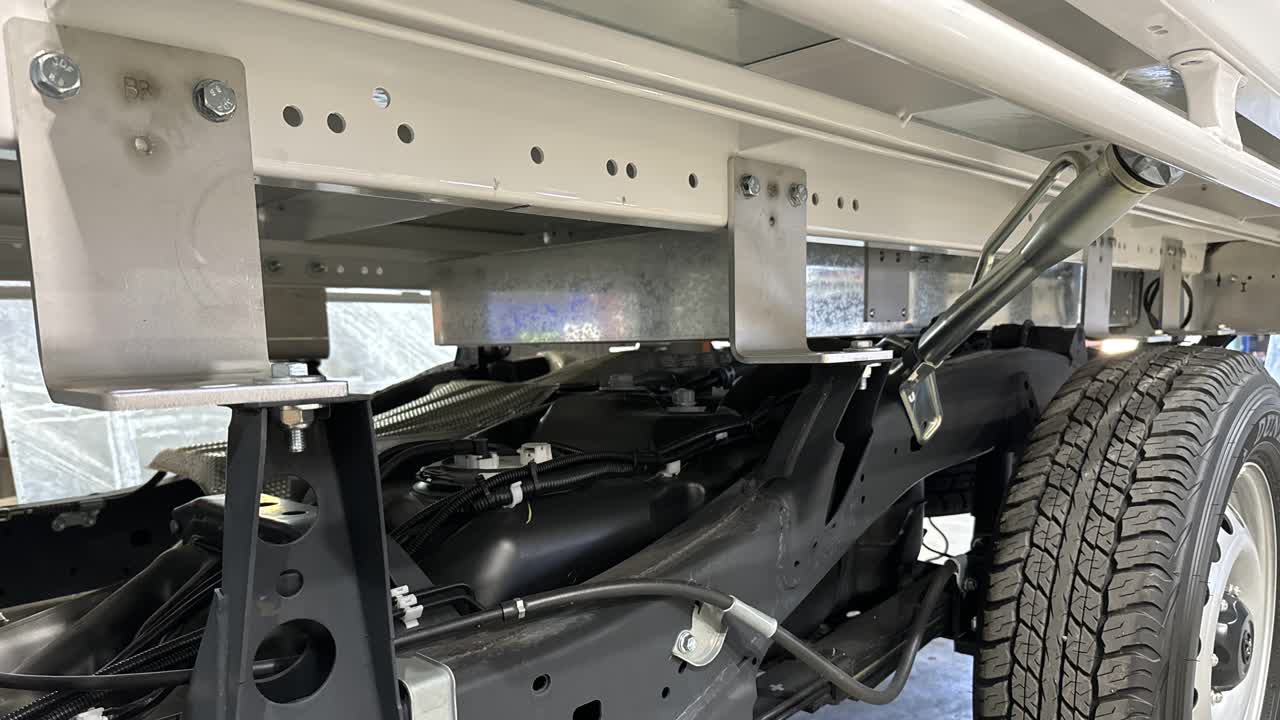

Will look like this if correct

2

Step 2 of 5

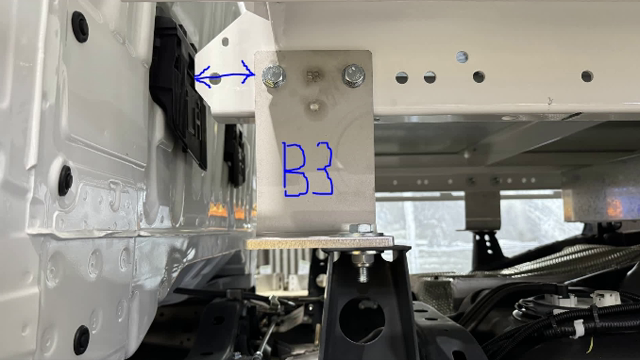

<p><strong>Front Mount</strong></p>
<ul>
<li>Laser Etched with "B3".</li>
<li>Measures60mm from front of the Trays Chassis rail to the front of the mount</li>
</ul>

Front Mount

Laser Etched with "B3".
Measures60mm from front of the Trays Chassis rail to the front of the mount

3

Step 3 of 5

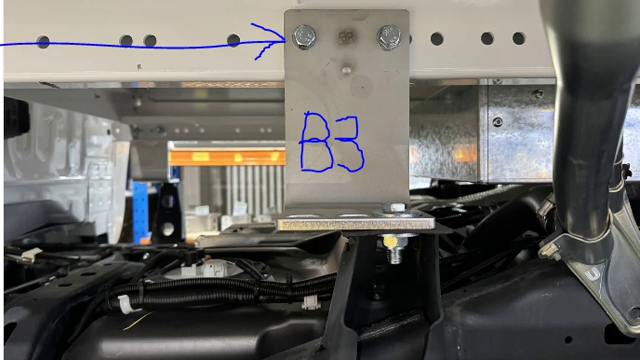

<p><strong>Second Mount</strong></p>
<ul>
<li>Laser Etched with "B3".</li>
<li>Measures 578mm from the front of the front mount to the front of this mount</li>
</ul>

Second Mount

Laser Etched with "B3".
Measures 578mm from the front of the front mount to the front of this mount

4

Step 4 of 5

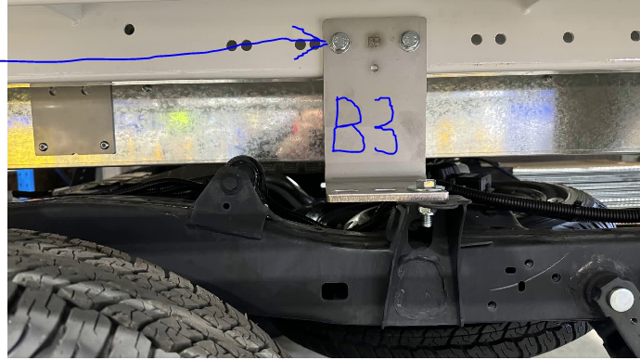

<p><strong>Third Mount</strong></p>
<ul>
<li>Laser Etched with "B3".</li>
<li>Measures 1518mm from the front of the front mount to the front of this mount</li>
</ul>

Third Mount

Laser Etched with "B3".
Measures 1518mm from the front of the front mount to the front of this mount

5

Step 5 of 5

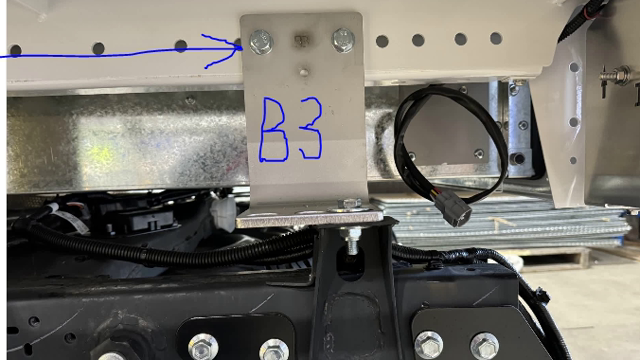

<p><strong>Fourth Mount</strong></p>
<ul>
<li>Laser Etched with "B3".</li>
<li>Measures 1950mm from the front of the front mount to the front of this mount</li>
</ul>

Fourth Mount

Laser Etched with "B3".
Measures 1950mm from the front of the front mount to the front of this mount
