Mounts, Correct Positions: Hilux, D-Cab
1
Step 1 of 4

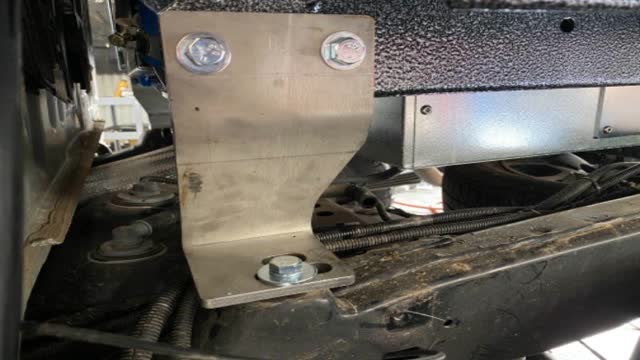

<p><strong>Front Mounts</strong></p> <ul> <li>Laser etched with “D3”. Should be in the front chassis holes</li> </ul>

Front Mounts

  • Laser etched with “D3”. Should be in the front chassis holes
2
Step 2 of 4

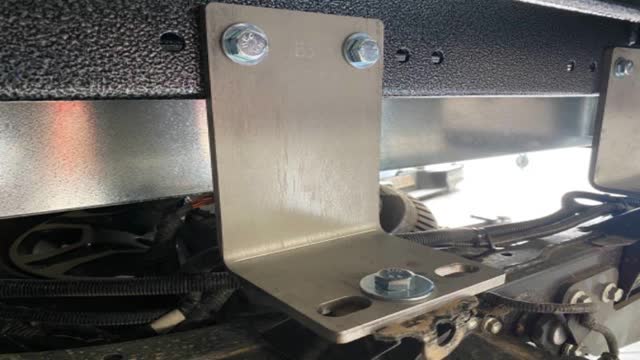

<p><strong>Front Mounts</strong></p> <ul> <li>Laser etched with “B3”.</li> </ul>

Front Mounts

  • Laser etched with “B3”.
3
Step 3 of 4

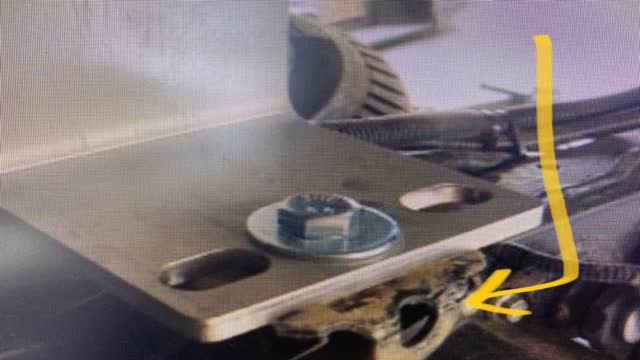

<p><strong>IF toolboxes are to be fitted.</strong></p> <ul> <li>Bend the &quot;Tag&quot; down on the middle mount. Looks like this when done.</li> </ul>

IF toolboxes are to be fitted.

  • Bend the "Tag" down on the middle mount. Looks like this when done.
4
Step 4 of 4

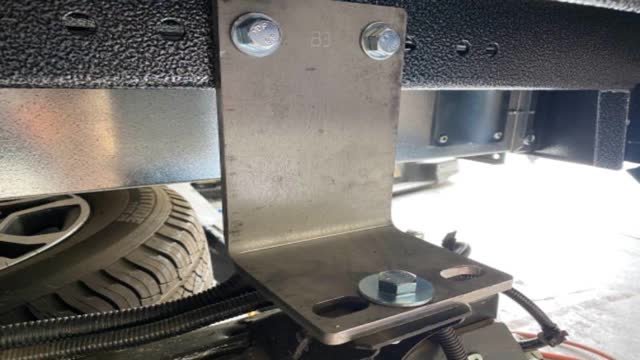

<p><strong>Back Mounts</strong></p> <ul> <li>Laser etched with “B3”.</li> </ul>

Back Mounts

  • Laser etched with “B3”.
