Aluminum Saw - Stacking Aluminium Lengths
How to safely stack beams when cutting a project.
How to safely stack beams when cutting a project.
1
Step 1 of 6

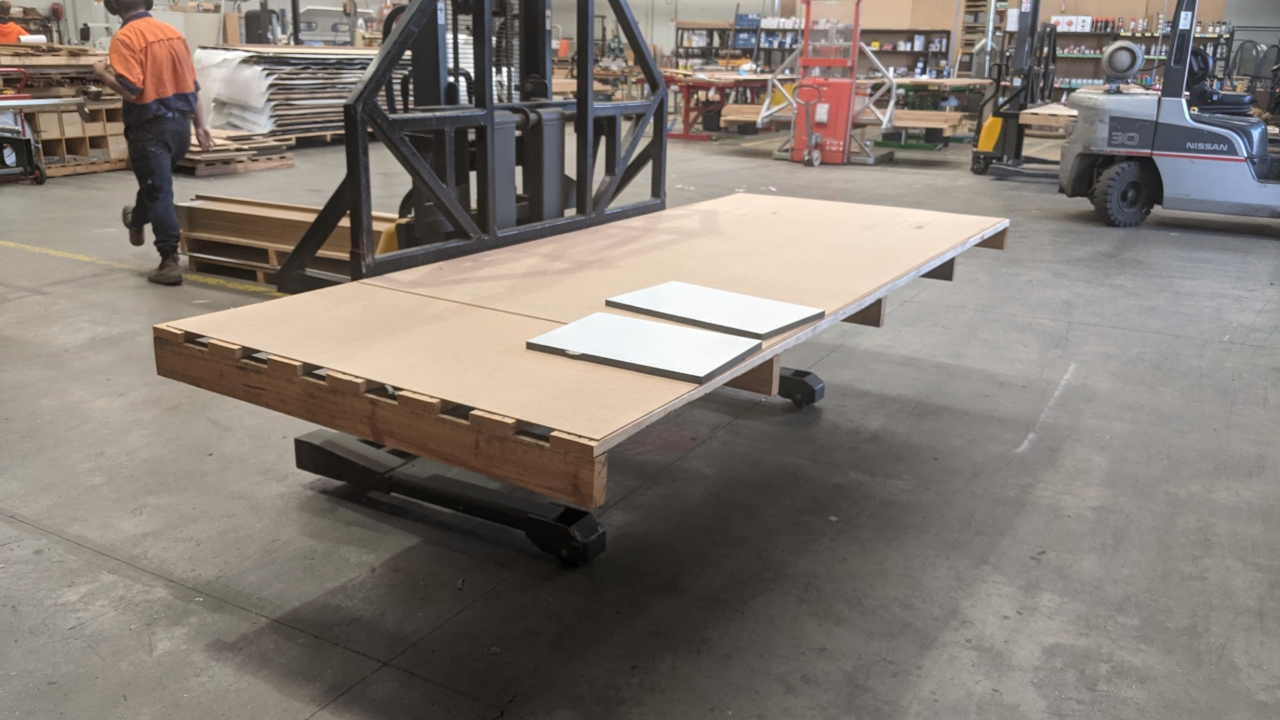

<p>Review the panel schedule &amp; choose correct size pallet to hold the longest lengths.</p>

Review the panel schedule & choose correct size pallet to hold the longest lengths.

2
Step 2 of 6

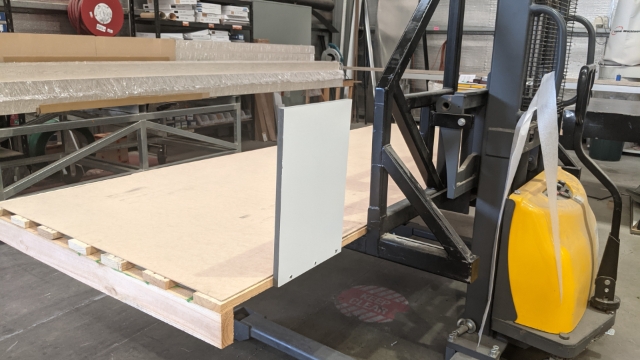

<p>Aluminium lengths are slippery &amp; unstable. Screw minimun two stabilising boards to edge of pallet.</p>

Aluminium lengths are slippery & unstable. Screw minimun two stabilising boards to edge of pallet.

3
Step 3 of 6

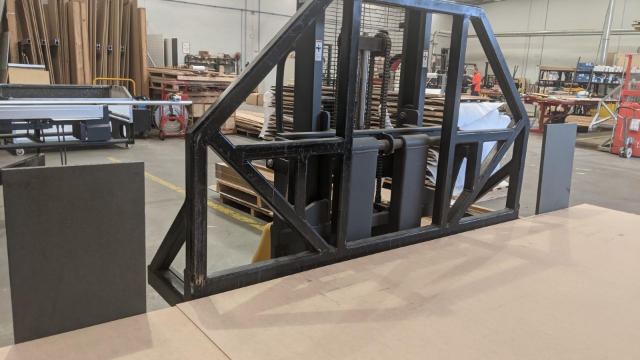

<p>Stabilising boards will need to be screwed to both sides to ensure a stable load.</p>

Stabilising boards will need to be screwed to both sides to ensure a stable load.

4
Step 4 of 6

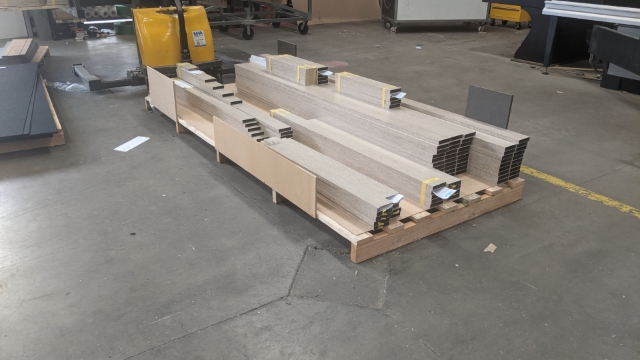

<p>Using the individual shop drawings, cut the lengths required for each panel. When cut these are taped together and stacked on the pallet.</p>

Using the individual shop drawings, cut the lengths required for each panel. When cut these are taped together and stacked on the pallet.

5
Step 5 of 6

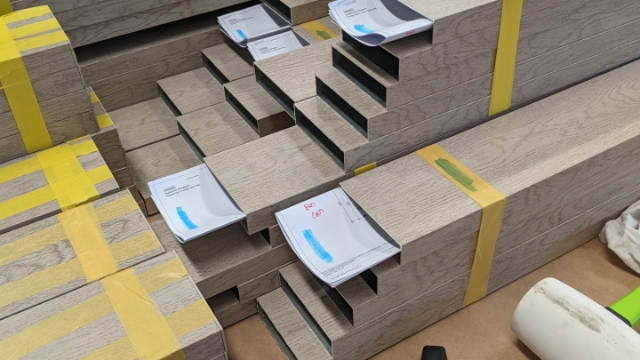

<p>Ensure that individual drawings of each panel are kept with the cut lengths to help the team identify which panel the lengths belong to.</p>

Ensure that individual drawings of each panel are kept with the cut lengths to help the team identify which panel the lengths belong to.

6
Step 6 of 6

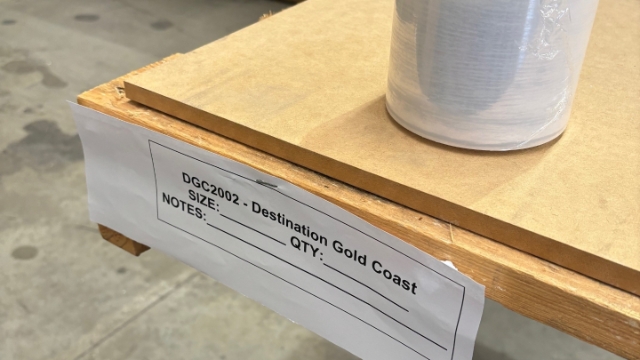

<p>When pallet is full ensure that the load is secured using pallet wrapping &amp; correctly labelled with batch code. This can then be stored for the joinery team.</p>

When pallet is full ensure that the load is secured using pallet wrapping & correctly labelled with batch code. This can then be stored for the joinery team.
