Mounts Layout: Next Gen Ranger, Dual Cab

Knowby

Mounts Layout: Next Gen Ranger, Dual Cab

1

Step 1 of 5

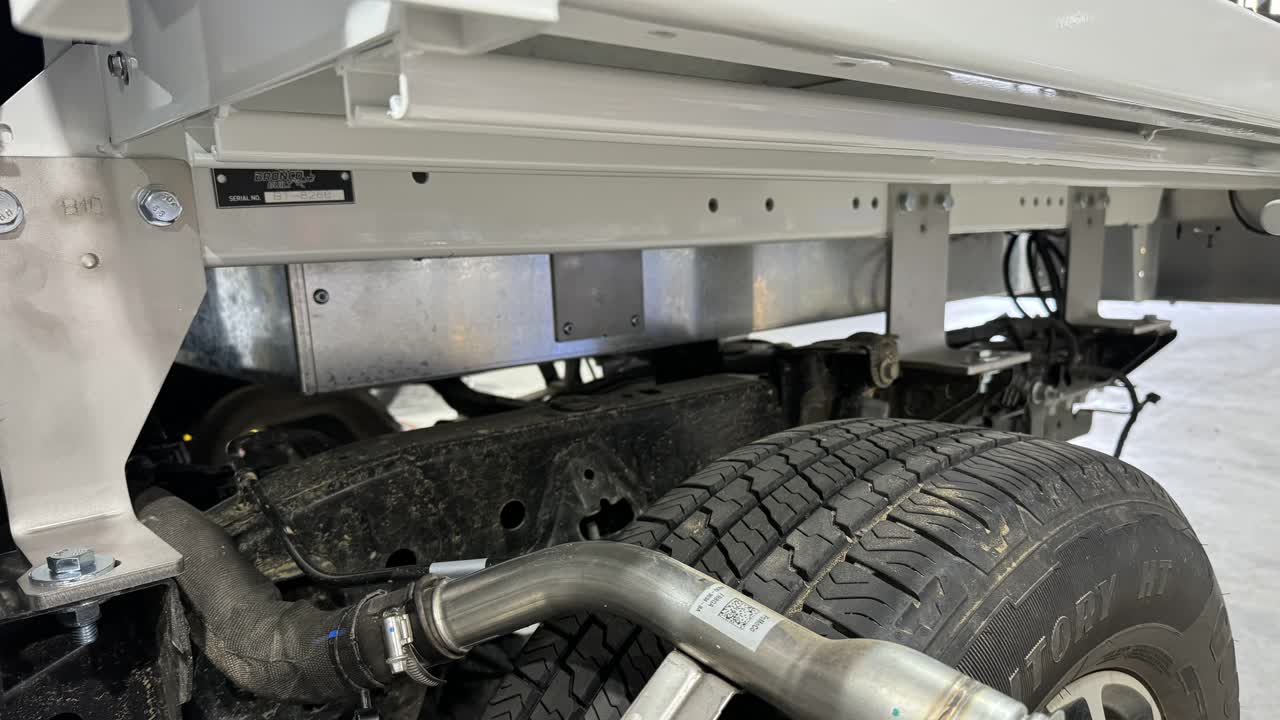

It will look like this

2

Step 2 of 5

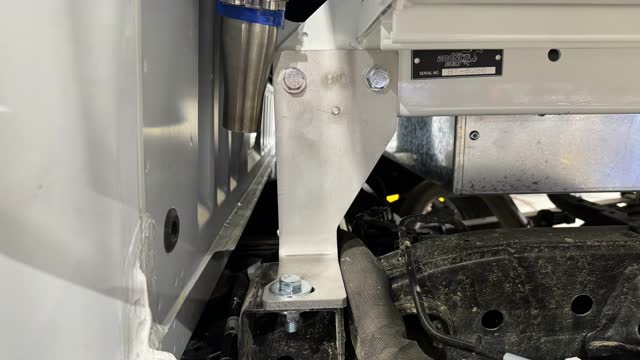

<p><strong>Front Mount, Passenger side</strong></p>
<ul>
<li>Laser Etched "B10"</li>
</ul>

Front Mount, Passenger side

Laser Etched "B10"

3

Step 3 of 5

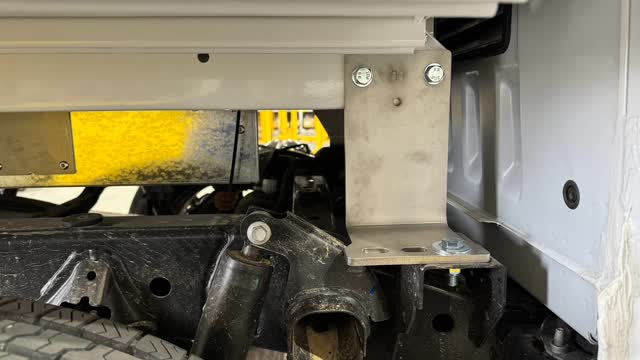

<p><strong>Front Mount, Driver side</strong></p>
<ul>
<li>Laser Etched "B9"</li>
</ul>

Front Mount, Driver side

Laser Etched "B9"

4

Step 4 of 5

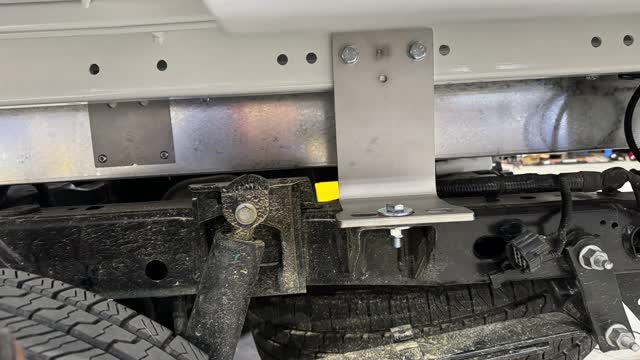

<p><strong>Middle Mount, Both sides</strong></p>
<ul>
<li>Laser Etched "B9"</li>
<li>857mm from front of first mount, to front of this mount</li>
</ul>

Middle Mount, Both sides

Laser Etched "B9"
857mm from front of first mount, to front of this mount

5

Step 5 of 5

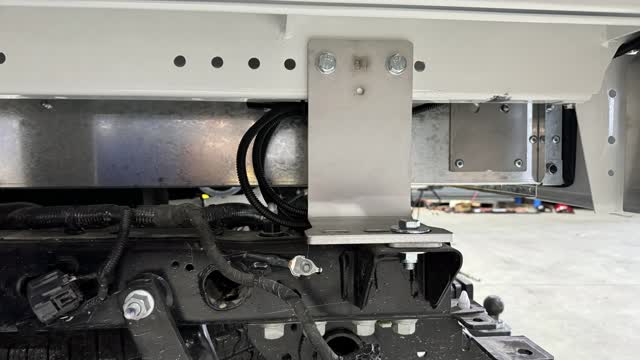

<p><strong>Back Mount, Both sides</strong></p>
<ul>
<li>Laser Etched "B9"</li>
<li>1318mm from front of first mount, to front of this mount</li>
</ul>
<p><strong>WITH A 5mm PACKER UNDER EACH MOUNT</strong></p>

Back Mount, Both sides

Laser Etched "B9"
1318mm from front of first mount, to front of this mount

WITH A 5mm PACKER UNDER EACH MOUNT
