How to replace Load-Lid Side Latch Mechanisms
For Part Numbers: LLSLASM-RH and LLSLASM-LH
For Part Numbers: LLSLASM-RH and LLSLASM-LH
1
Step 1 of 10

Tools Required:

  • 4mm Allen Key (or impact driver)

  • 10mm Spanner

  • Sealer

2
Step 2 of 10

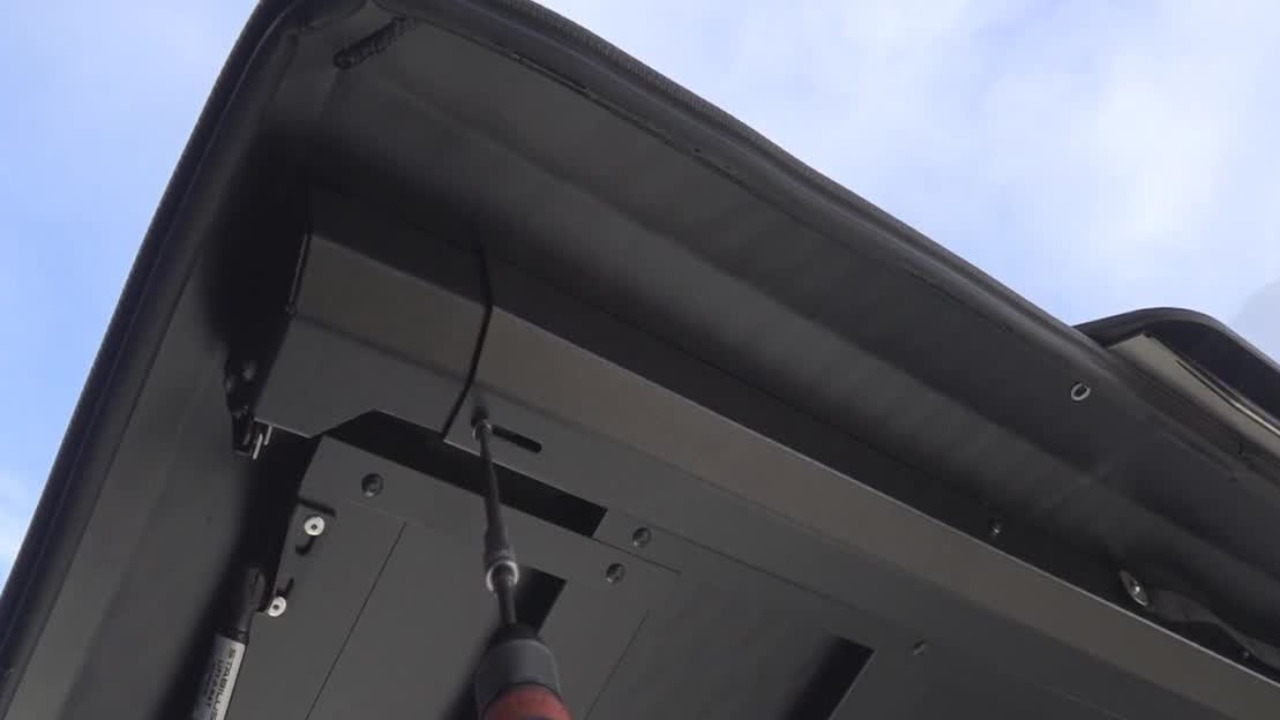

Remove Lock Cover by undoing the 4 x M6 Bolts

3
Step 3 of 10

Unclip the locking rods

4
Step 4 of 10

Unbolt the side latch assembly

5
Step 5 of 10

Remove the side latch assembly

6
Step 6 of 10

Seal around the bolt holes using a sealant and place the latch into place.

7
Step 7 of 10

Reinstall the bolts and clean up any excess sealer

8
Step 8 of 10

Clip the rods back into place

9
Step 9 of 10

Re-install the lock cover.

10
Step 10 of 10

Adjust the locks as required as shown on this link: https://utemaster.com/knowledge/load-lid-slam-latch-adjustment
