How to Remove Truck Bed/Tub: Silverado 2500 (2018-2022)

1

Step 1 of 18

3 people must be present during the removal - 1 on the forklift and 2 on the ground The rubber protection pad must be used

2

Step 2 of 18

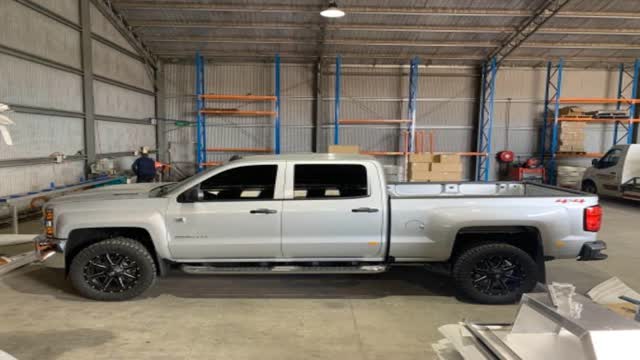

<p>Silverado d cab</p>

Silverado d cab

3

Step 3 of 18

<p>Fuel filler</p>

Fuel filler

4

Step 4 of 18

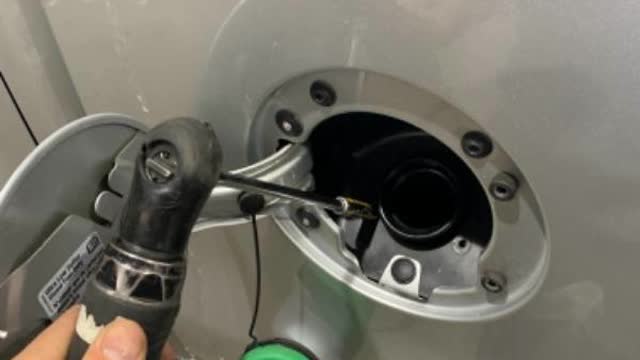

<p>Remove cap. Undo bolts x3 7mm socket</p>

Remove cap. Undo bolts x3 7mm socket

5

Step 5 of 18

Push filler throughout so it is free of tub

6

Step 6 of 18

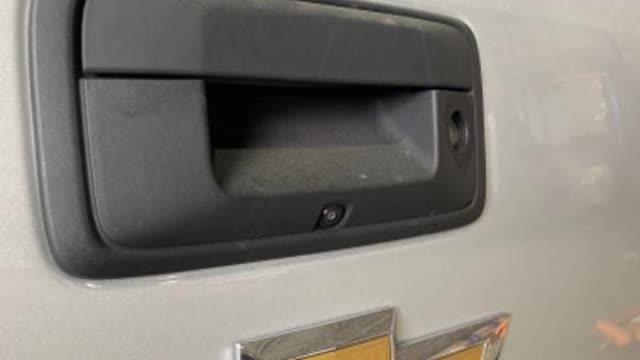

<p>Camera</p>

Camera

7

Step 7 of 18

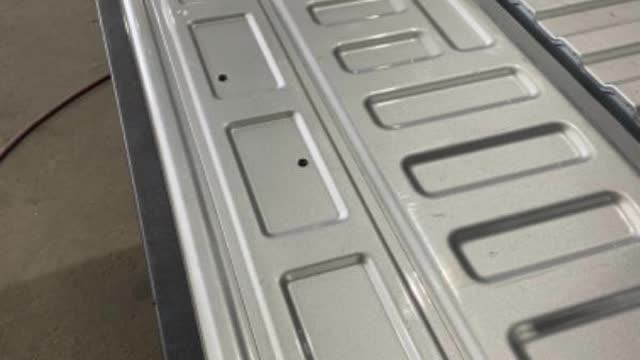

<p>Lower tailgate, remove inner panel using T15 bit</p>

Lower tailgate, remove inner panel using T15 bit

8

Step 8 of 18

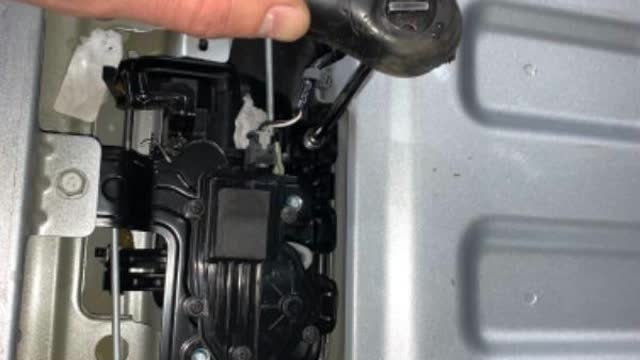

<p>Remove 2x screws holding camera using T20</p>

Remove 2x screws holding camera using T20

9

Step 9 of 18

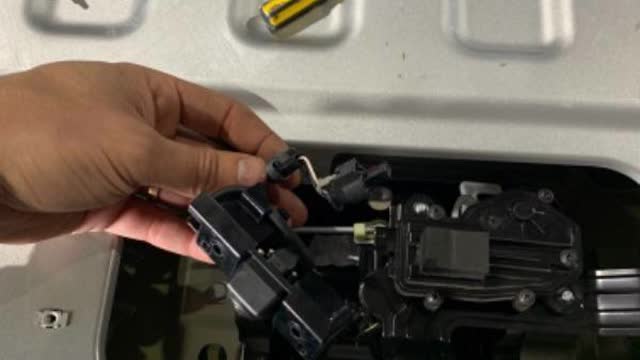

<p>Pull out and disconnect other plug</p>

Pull out and disconnect other plug

10

Step 10 of 18

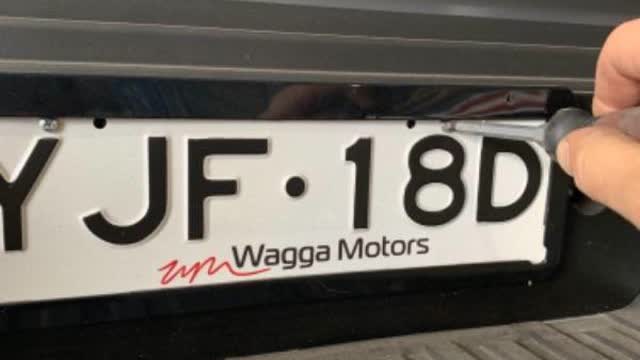

<p>Remove license plate</p>

Remove license plate

11

Step 11 of 18

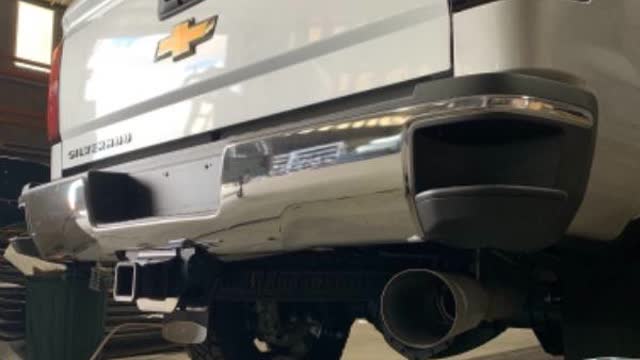

<p>Rear step</p>

Rear step

12

Step 12 of 18

<p>Remove 2x bolts using 21mm socket</p>

Remove 2x bolts using 21mm socket

13

Step 13 of 18

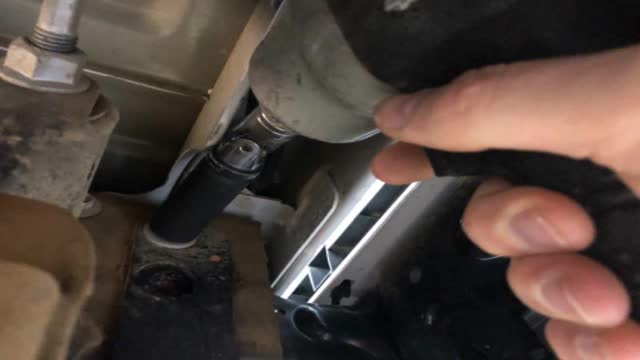

<p>Use uni joint for top bolt</p>

Use uni joint for top bolt

14

Step 14 of 18

21mm with short extension

15

Step 15 of 18

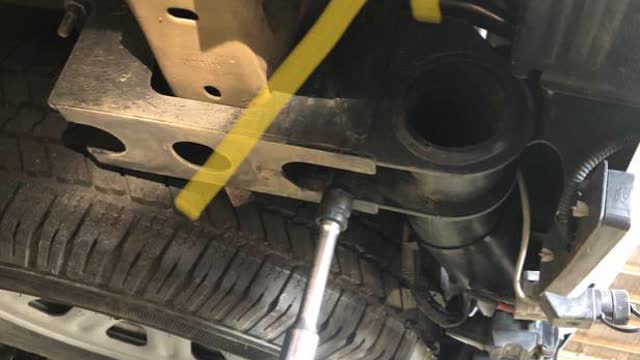

<p>Rear tub mounts
18mm long extension</p>

Rear tub mounts 18mm long extension

16

Step 16 of 18

Front mounts, 18mm with extension

17

Step 17 of 18

18mm mounts rear of tyre

18

Step 18 of 18

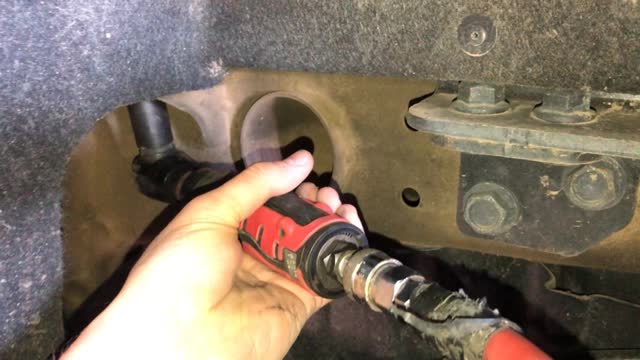

<p>18mm front of tyre</p>

18mm front of tyre
