MMU - E-Stop Familiarisation - Standard Version
The purpose of this work instruction is to familiarise new operators with the locations of Emergency Stop Buttons (E-Stop) on the Mineral Technologies / Downer Mobile Mining Unit (MMU).
The purpose of this work instruction is to familiarise new operators with the locations of Emergency Stop Buttons (E-Stop) on the Mineral Technologies / Downer Mobile Mining Unit (MMU).
1
Step 1 of 7

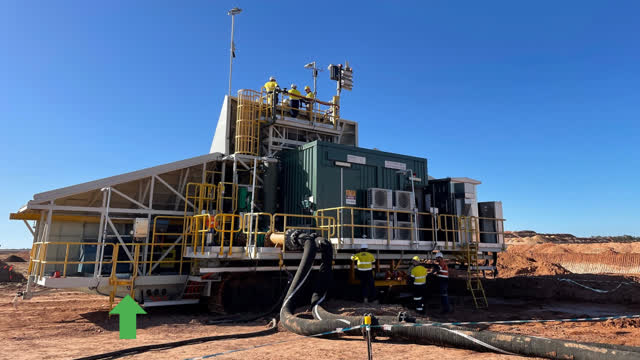

<p>Climb on board the MMU via the Main Access Ladder.</p>

Climb on board the MMU via the Main Access Ladder.

2
Step 2 of 7

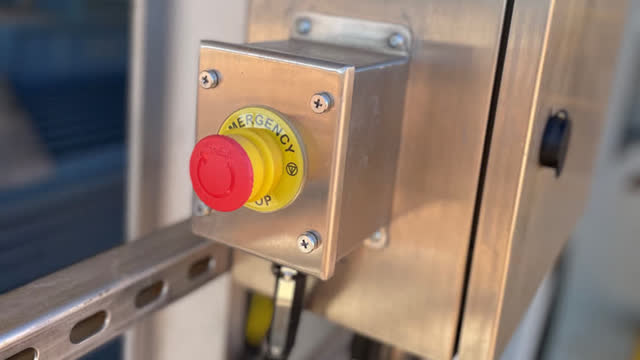

<p>Conduct a visual inspection of the Slurry Pump Area E-Stop (YA11).</p>

Conduct a visual inspection of the Slurry Pump Area E-Stop (YA11).

3
Step 3 of 7

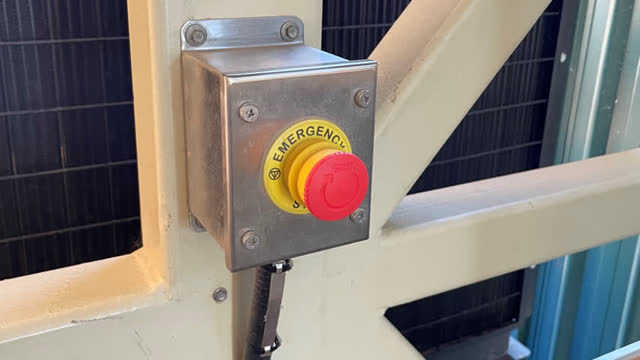

<p>Climb up the ladder to the Shredder Area, walk towards the hydraulic end and conduct a visual inspection of the Shredder Area E-Stop (YA09).</p>

Climb up the ladder to the Shredder Area, walk towards the hydraulic end and conduct a visual inspection of the Shredder Area E-Stop (YA09).

4
Step 4 of 7
<p>Climb up to the Crows Nest, conduct a visual inspection of the Crows Nest E-Stop (YA12).</p>

Climb up to the Crows Nest, conduct a visual inspection of the Crows Nest E-Stop (YA12).

5
Step 5 of 7

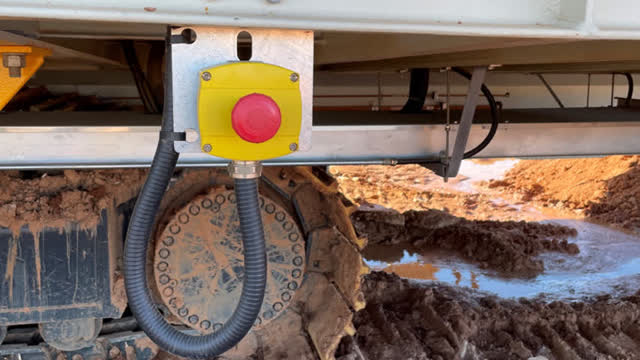

<p>Disembark the MMU down the Main Access Ladder, walk towards the Electrical Access Ladder. Conduct a visual inspection of the Track E-Stop (YA10).</p>

Disembark the MMU down the Main Access Ladder, walk towards the Electrical Access Ladder. Conduct a visual inspection of the Track E-Stop (YA10).

6
Step 6 of 7

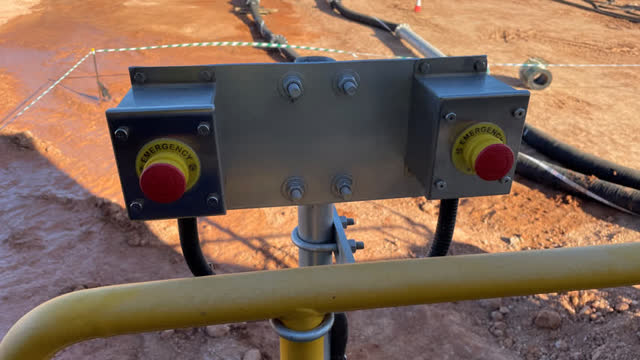

<p>Climb the Electrical Access Ladder, conduct a visual inspection of the MCC E-Stop (YA08).</p>

Climb the Electrical Access Ladder, conduct a visual inspection of the MCC E-Stop (YA08).

7
Step 7 of 7

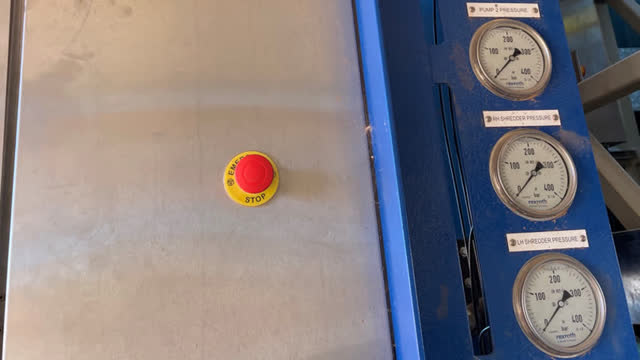

<p>Disembark the MMU, climb the Hydraulics End access ladder. Conduct a visual inspection of the Hydraulics E-Stop.</p>

Disembark the MMU, climb the Hydraulics End access ladder. Conduct a visual inspection of the Hydraulics E-Stop.
