Tub Removal, Isuzu "RG" D-Max
1
Step 1 of 46

Suit 2020-Present Model

Use same instruction for both Dual Cab and Extra Cabs

2
Step 2 of 46

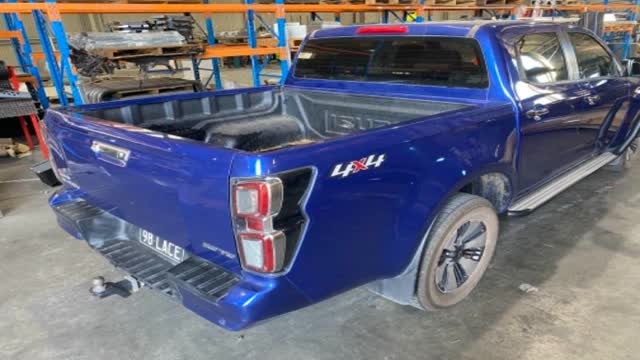

<p>Vehicle looks like this</p>

Vehicle looks like this

3
Step 3 of 46

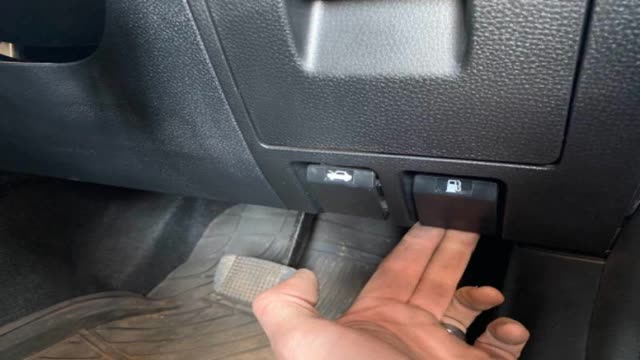

<p>Open the fuel door, located under steering wheel</p>

Open the fuel door, located under steering wheel

4
Step 4 of 46

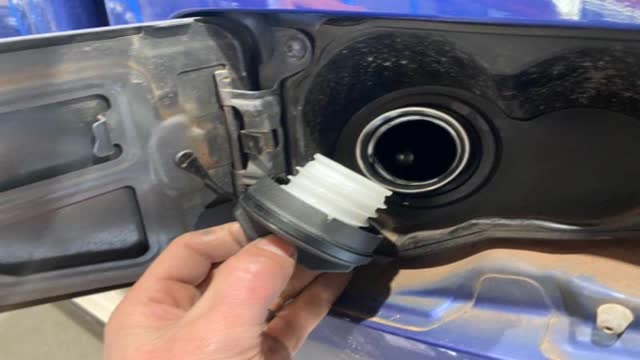

<p>Remove fuel cap</p>

Remove fuel cap

5
Step 5 of 46

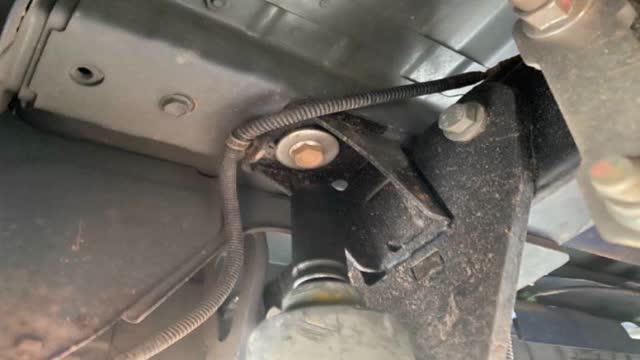

<p>Back Mount, 17mm</p>

Back Mount, 17mm

6
Step 6 of 46

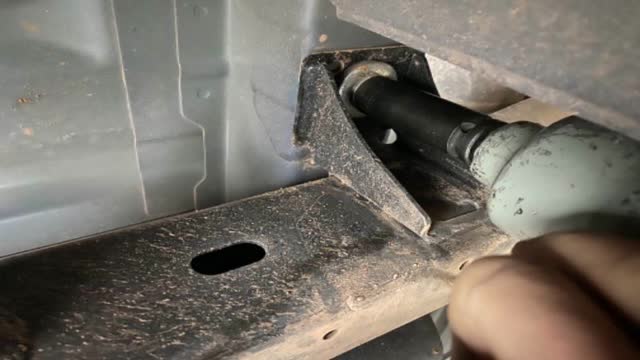

<p>Middle Mount 17mm</p>

Middle Mount 17mm

7
Step 7 of 46

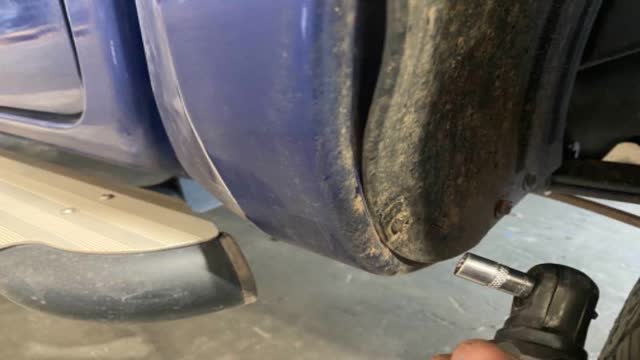

<p>8 and 10mm to remove inner guard, passenger side</p>

8 and 10mm to remove inner guard, passenger side

8
Step 8 of 46

Fold inner guard out of way

9
Step 9 of 46

Rotate fuel door release cable

10
Step 10 of 46

Pull shroud out

11
Step 11 of 46

12mm and remove fuel bracket from tub

12
Step 12 of 46

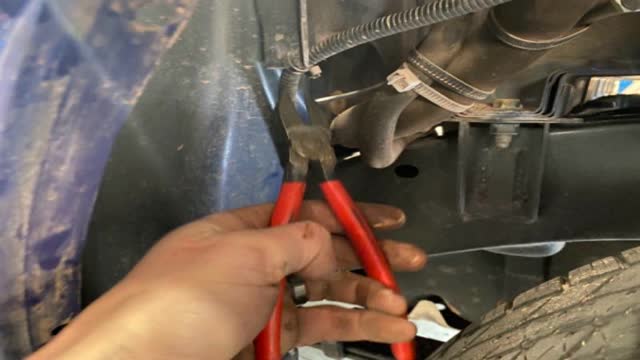

<p>Trim wiring</p>

Trim wiring

13
Step 13 of 46

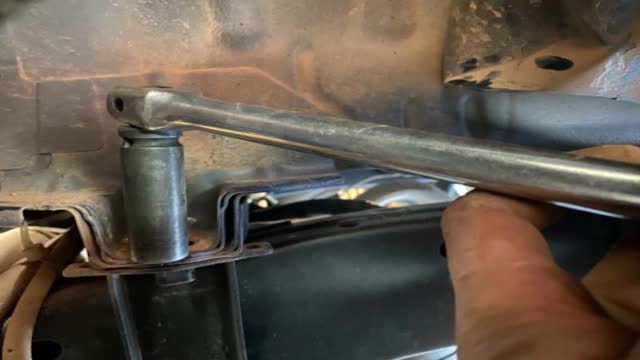

<p>Front Mount, Tight! Use breaker bar, 17mm</p>

Front Mount, Tight! Use breaker bar, 17mm

14
Step 14 of 46

Repeat opposite side

15
Step 15 of 46

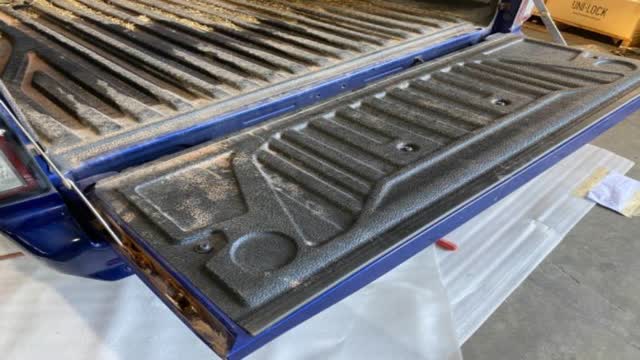

<p>Open tailgate</p>

Open tailgate

16
Step 16 of 46

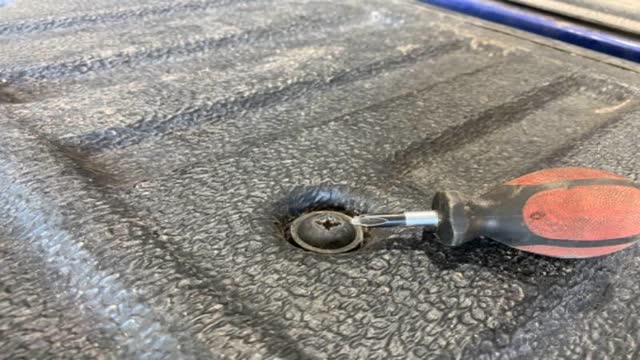

<p>Phillips head to remove tailgate skin</p>

Phillips head to remove tailgate skin

17
Step 17 of 46

Peel off

18
Step 18 of 46

Remove cover with Phillips head driver

19
Step 19 of 46

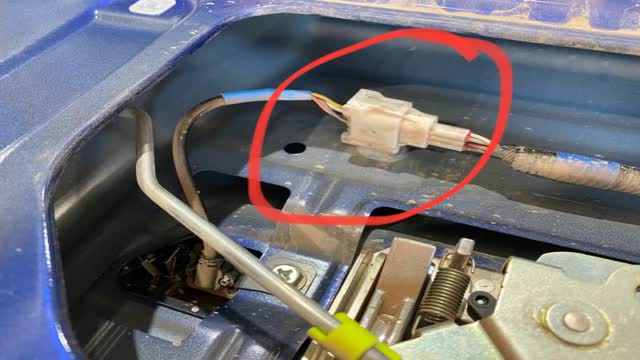

<p>Camera un plug</p>

Camera un plug

20
Step 20 of 46

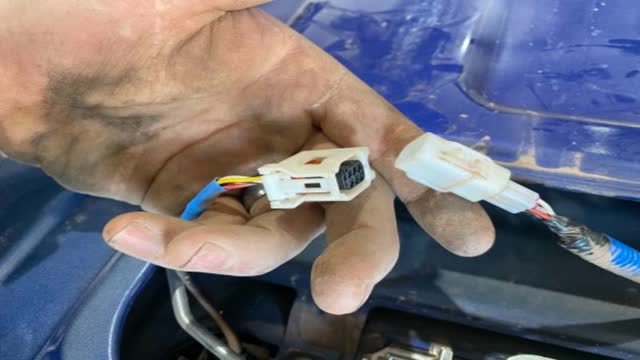

<p>Unplug</p>

Unplug

21
Step 21 of 46

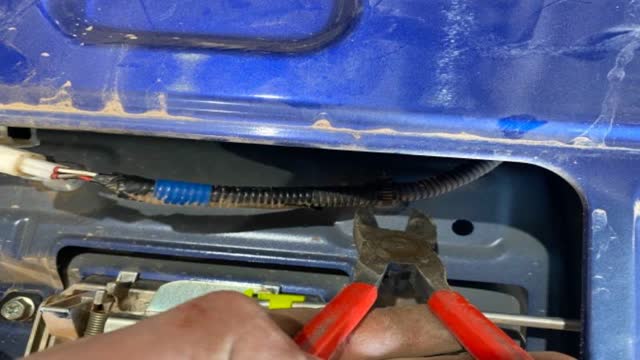

<p>Cut zip ties holding wiring</p>

Cut zip ties holding wiring

22
Step 22 of 46

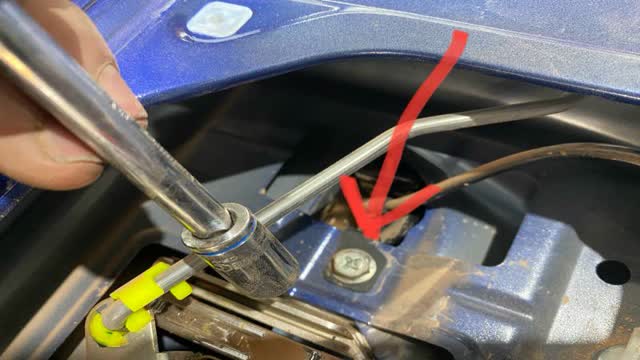

<p>10mm for camera</p>

10mm for camera

23
Step 23 of 46

Remove camera from tailgate

24
Step 24 of 46

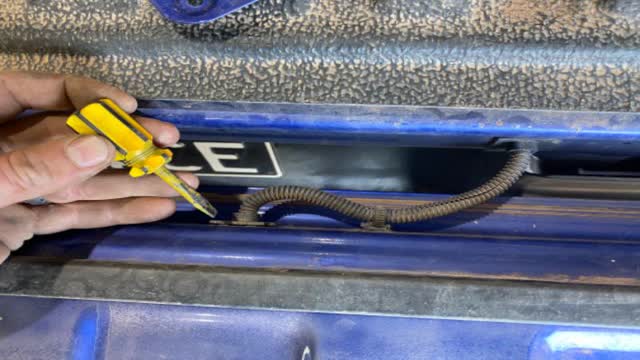

<p>Pop out</p>

Pop out

25
Step 25 of 46

Remove harness from tailgate

26
Step 26 of 46

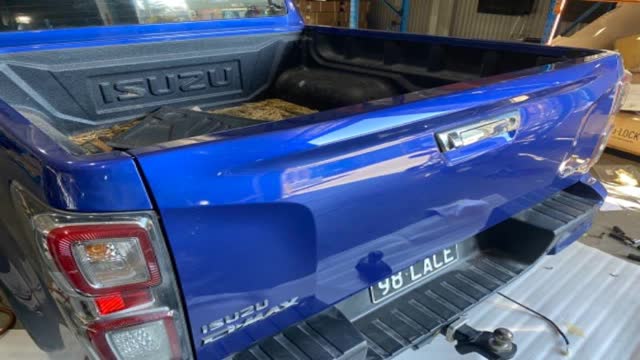

<p>Tailgate can be closed</p>

Tailgate can be closed

27
Step 27 of 46

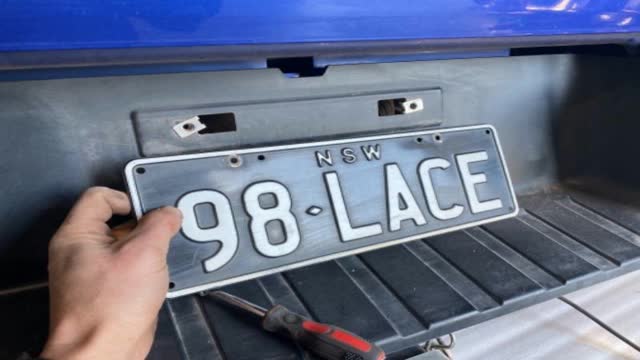

<p>Remove licence plate</p>

Remove licence plate

28
Step 28 of 46

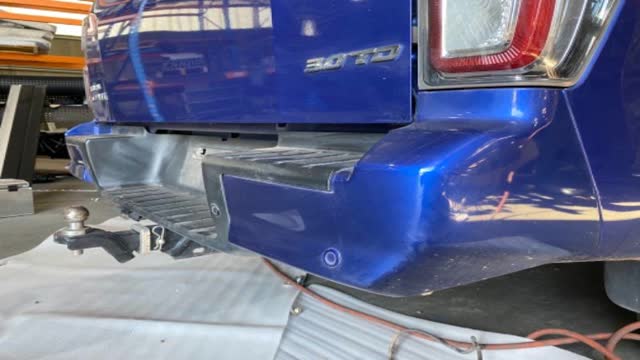

<p>Bumper</p>

Bumper

29
Step 29 of 46

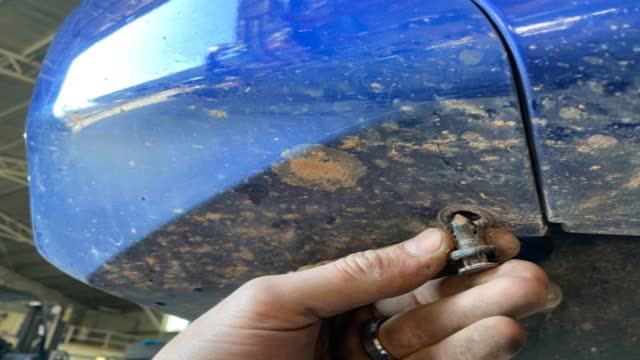

<p>Remove clips under</p>

Remove clips under

30
Step 30 of 46

Remove centre section

31
Step 31 of 46

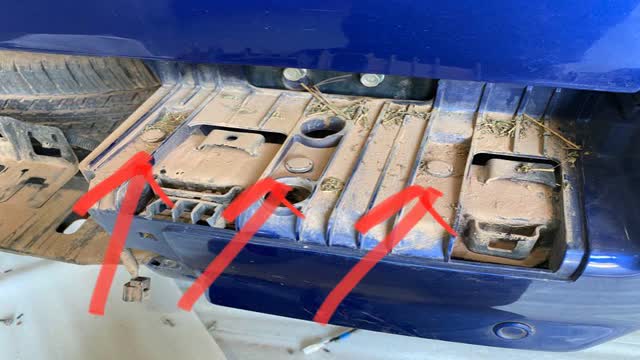

<p>Remove clips</p>

Remove clips

32
Step 32 of 46

Pry off

33
Step 33 of 46

Repeat other side

34
Step 34 of 46

Unplug radar

35
Step 35 of 46

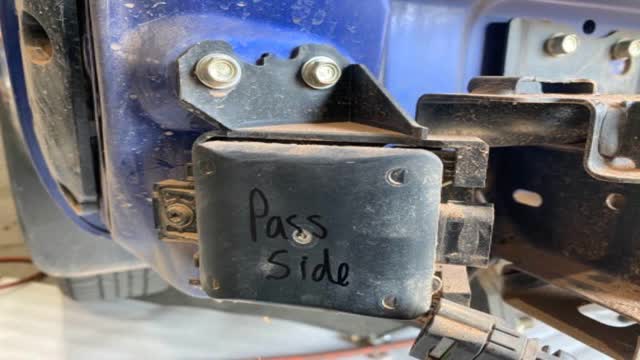

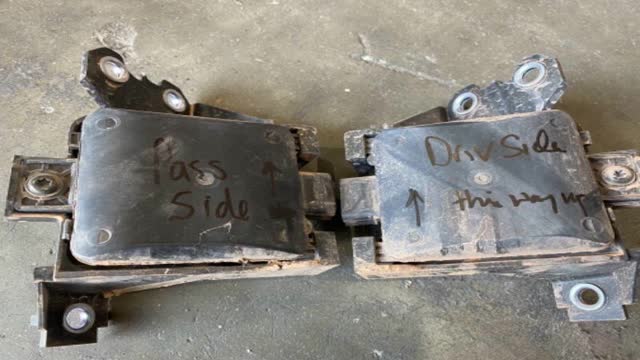

<p>Mark them with a pen</p>

Mark them with a pen

36
Step 36 of 46
<p>Keep safe</p>

Keep safe

37
Step 37 of 46

Remove harness

38
Step 38 of 46

Lifting

39
Step 39 of 46

Pause

40
Step 40 of 46

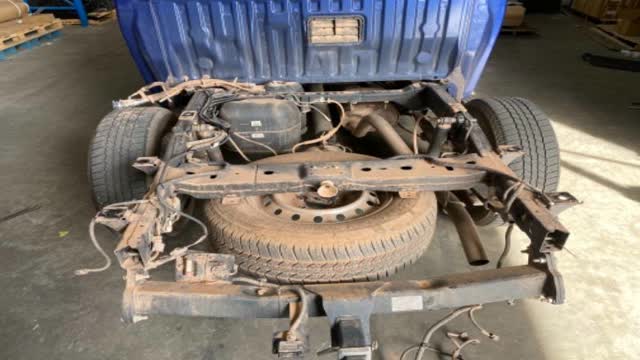

<p>Removed</p>

Removed

41
Step 41 of 46

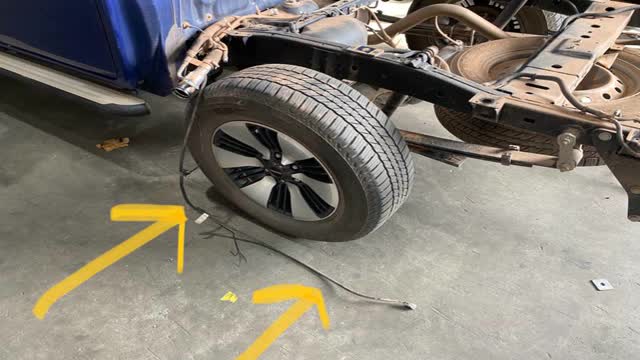

<p>Harness</p>

Harness

42
Step 42 of 46

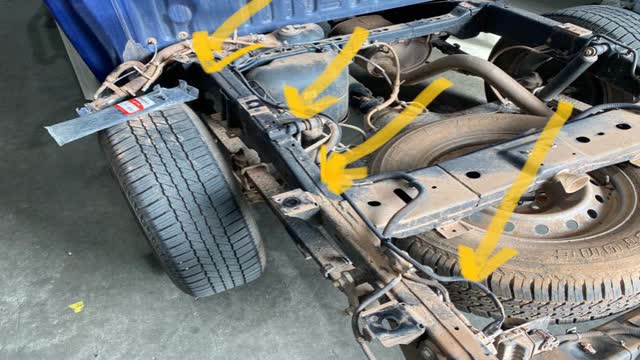

<p>Zip tie</p>

Zip tie

43
Step 43 of 46

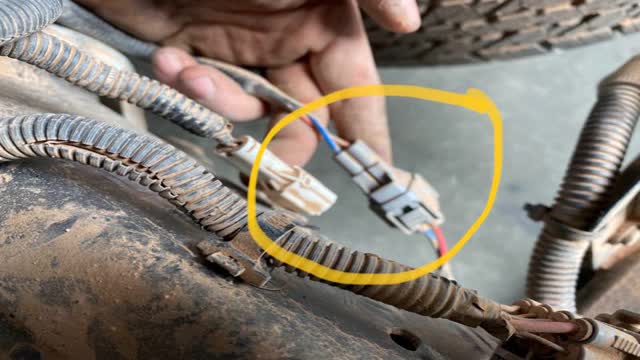

<p>Plug in</p>

Plug in

44
Step 44 of 46

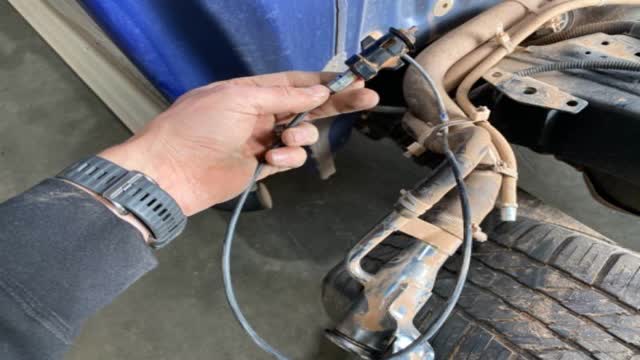

<p>Identify release</p>

Identify release

45
Step 45 of 46

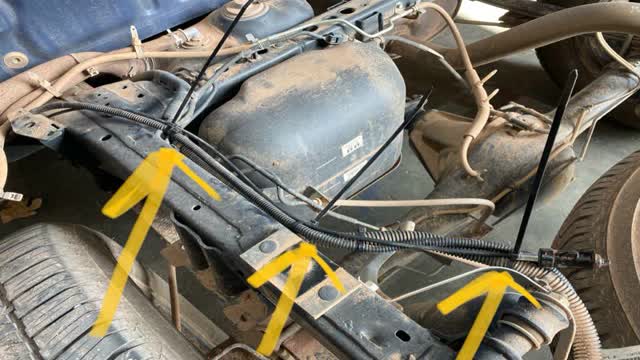

<p>Zip tie neatly</p>

Zip tie neatly

46
Step 46 of 46

Ready to fit Tray
