xWiring, RAM 1500, "DT" Model

Knowby

xWiring, RAM 1500, "DT" Model

1

Step 1 of 16

THIS KNOWBY IS NOT YET FINISHED

Includes re-mounting of Radar units

2

Step 2 of 16

Get the original Tail Lights (from Tub)

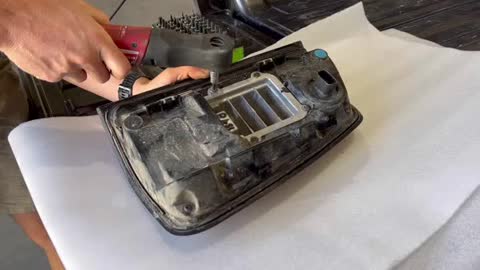

T15 Torx to undo housing (4 x Screws)

3

Step 3 of 16

T20 Torx to remove Radar from Housing. (2 x screws)

4

Step 4 of 16

Mark it with a "T" for Top, and "Pass" or "Driver" depending on which side it is

5

Step 5 of 16

Pull red clip out, then squeeze to unplug

6

Step 6 of 16

T20 Torx for 4 x outer screws

7

Step 7 of 16

Split light (it’s sealed), using a flat head screwdriver

8

Step 8 of 16

Unplug the little white plug

9

Step 9 of 16

Undo harness (1 x clip)

10

Step 10 of 16

Squeeze tab with pliers, and rotate to remove harness

11

Step 11 of 16

Identify the supplied 3D printed pieces

12

Step 12 of 16

Modify like this to suit plug (this w won’t be required in future….)

13

Step 13 of 16

Assemble radar unit into 3D printed assembly

14

Step 14 of 16

Add original screws

15

Step 15 of 16

Plug in harness to radar

16

Step 16 of 16

THIS KNOWBY STILL BEING BUILT
