Re-Fit Revering Sensors: RAM, DS Model, 1500

1

Step 1 of 16

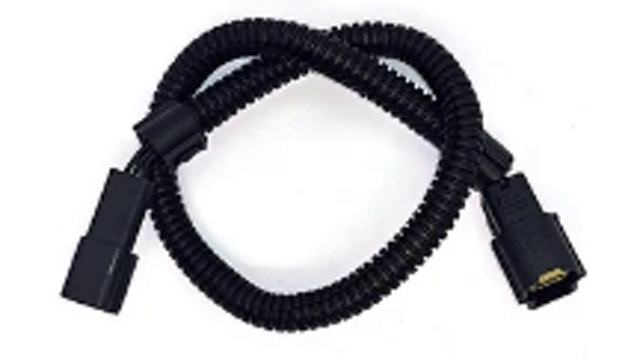

<p><strong>Harness Extension Required</strong></p>
<ul>
<li>WH041</li>
</ul>

Harness Extension Required

WH041

2

Step 2 of 16

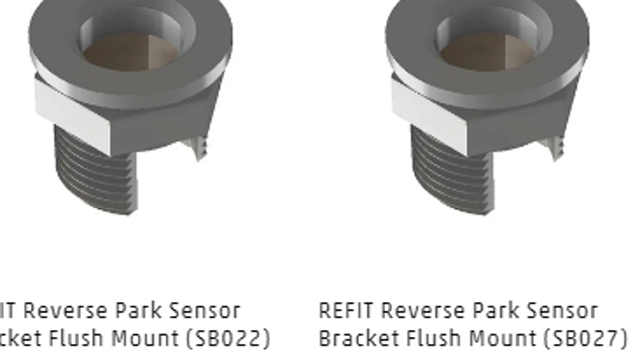

<p>** 2 Sets of Sensors, will be supplied**</p>
<ul>
<li>SB022</li>
<li>SB027</li>
</ul>

** 2 Sets of Sensors, will be supplied**

SB022
SB027

3

Step 3 of 16

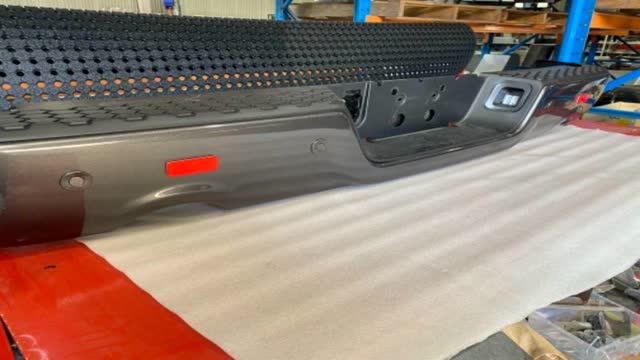

<p>Lay the bumper on a bench, with a blanket or foam under it.</p>

Lay the bumper on a bench, with a blanket or foam under it.

4

Step 4 of 16

Remove harness from bumper.

A flat head screwdriver is best to pry the sensor holder apart.

5

Step 5 of 16

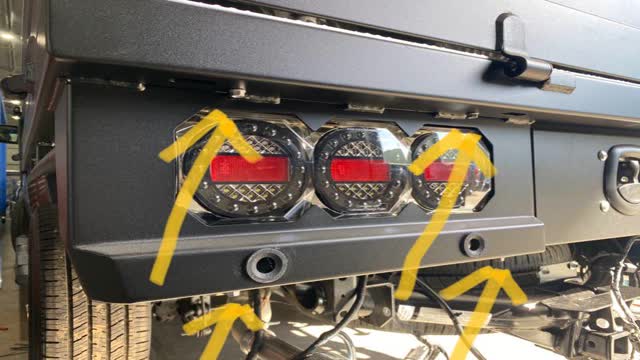

<p>Since this has "Integrated" Tail Light housings, we must remove the lights to access the sensors</p>
<p>Remove the 4 x M6 bolts (shown by yellow arrows) - use 10mm socket.</p>

Since this has "Integrated" Tail Light housings, we must remove the lights to access the sensors

Remove the 4 x M6 bolts (shown by yellow arrows) - use 10mm socket.

6

Step 6 of 16

Once bolts are removed, remove light from housing by pushing it back and down.

7

Step 7 of 16

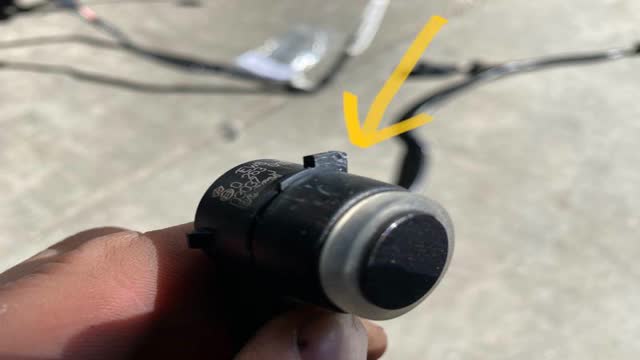

<p>Identify the RAM sensors. They will have a small tab on them</p>

Identify the RAM sensors. They will have a small tab on them

8

Step 8 of 16

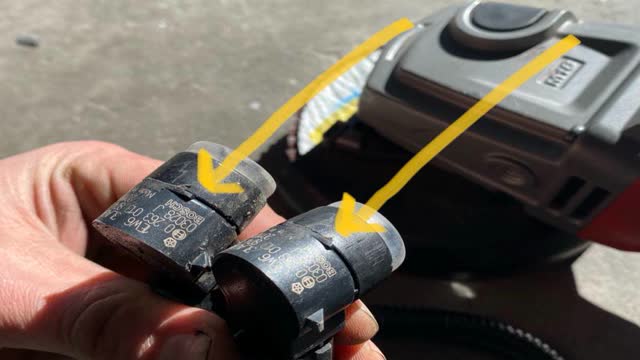

<p>Use a grinder to remove this tab</p>

Use a grinder to remove this tab

9

Step 9 of 16

Fit sensor to Tray

10

Step 10 of 16

Should look like this from front

11

Step 11 of 16

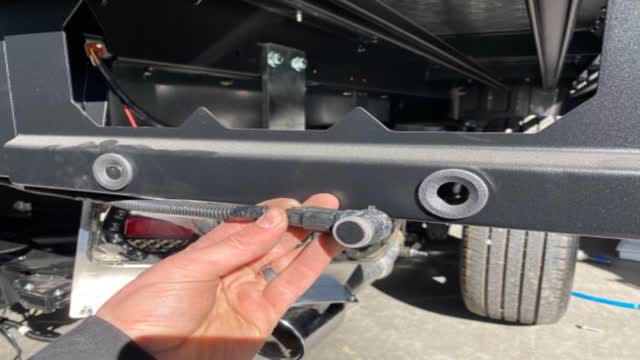

<p>You will notice the harness won’t reach the last sensor hole...... it is necessary to extend the harness.</p>

You will notice the harness won’t reach the last sensor hole...... it is necessary to extend the harness.

12

Step 12 of 16

Extend Harness: Cut Extend Solder Insulate

13

Step 13 of 16

Wrap with insulation tape, and fit final sensor

14

Step 14 of 16

Refit tail lights, reusing the M6 bolts

15

Step 15 of 16

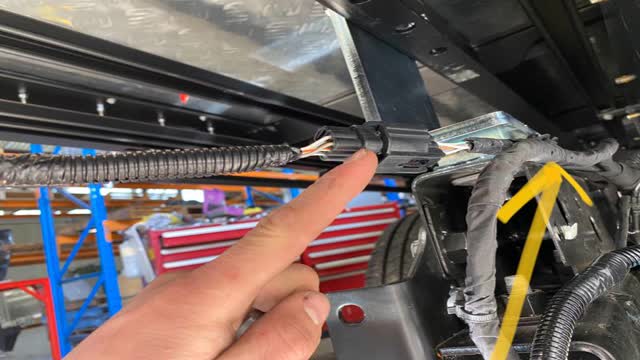

<p>Plug in the sensor harness to vehicle.</p>
<p>TIP: So that the harness can reach, it is necessary to cut some of the zip ties holding the vehicle harness to the vehicle chassis - by doing this the harness can come back further.</p>

Plug in the sensor harness to vehicle.

TIP: So that the harness can reach, it is necessary to cut some of the zip ties holding the vehicle harness to the vehicle chassis - by doing this the harness can come back further.

16

Step 16 of 16

With second person check sensors work.

When put in reverse, sensors should beep if there is something near them.
