Mounts Layout, Cruiser D-Cab JMacx 300mm Extension
1
Step 1 of 4

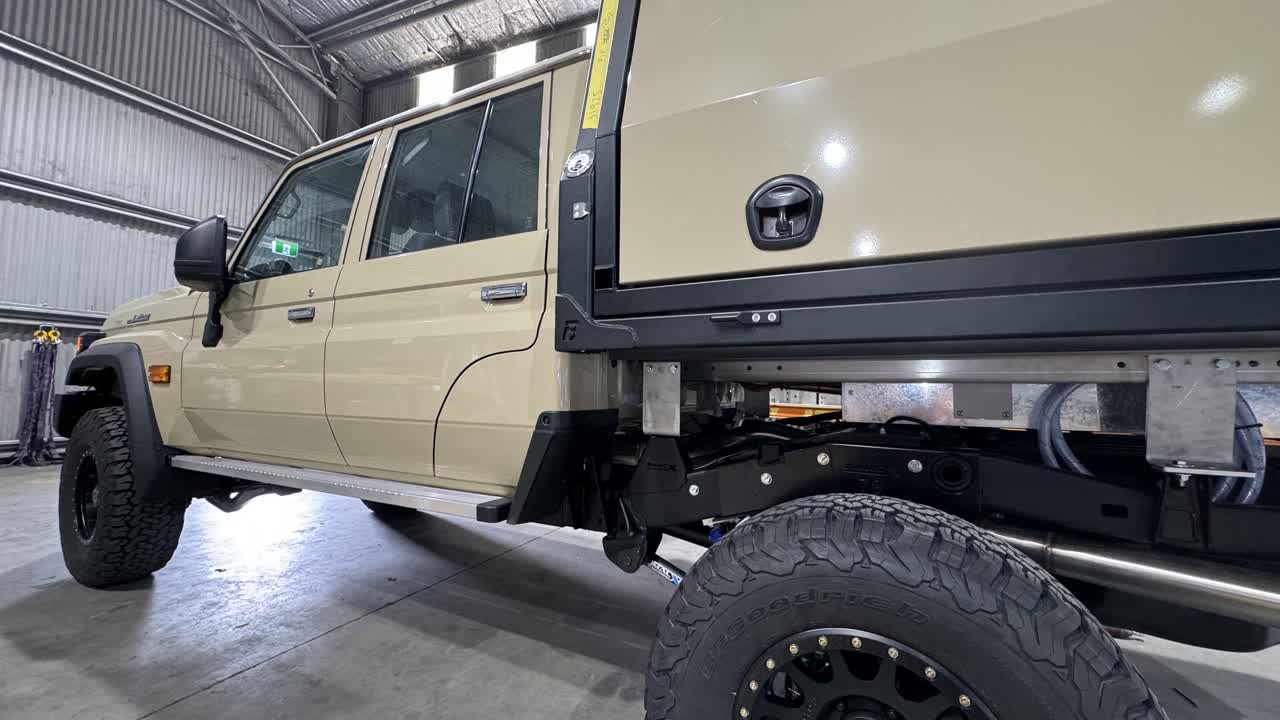

Will look like this when Correct

2
Step 2 of 4

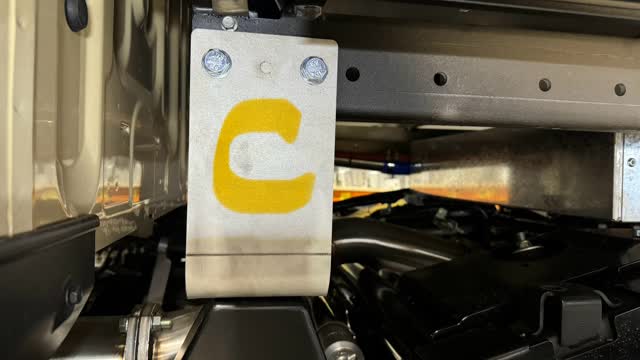

<p><strong>Front Mount</strong>. In the front Tray chassis holes. Laser etched with “C”</p>

Front Mount. In the front Tray chassis holes. Laser etched with “C”

3
Step 3 of 4

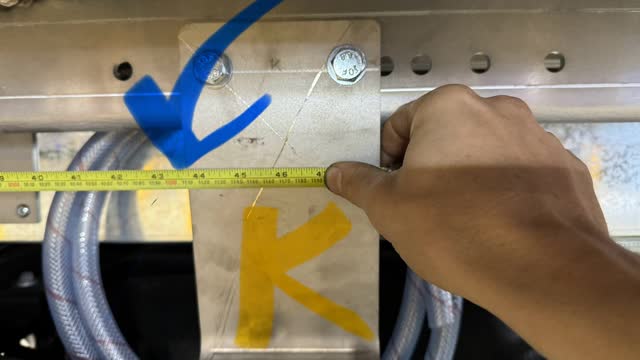

<p><strong>Second Mount</strong>. Laser etched with “K”. 1110mm from Front of the front mount, to the front of this mount</p>

Second Mount. Laser etched with “K”. 1110mm from Front of the front mount, to the front of this mount

4
Step 4 of 4

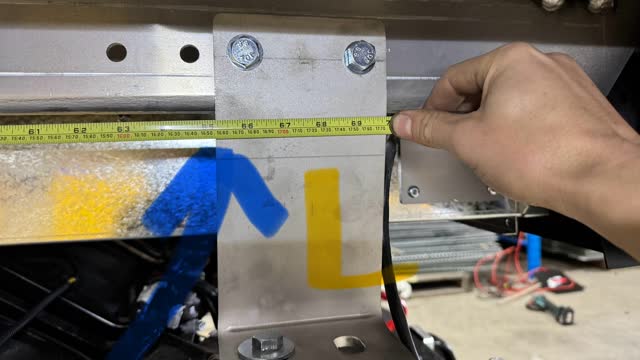

<p><strong>Third Mount</strong>. Laser etched with “L”. 1655mm From the front of the front mount to the front of this mount</p>

Third Mount. Laser etched with “L”. 1655mm From the front of the front mount to the front of this mount
